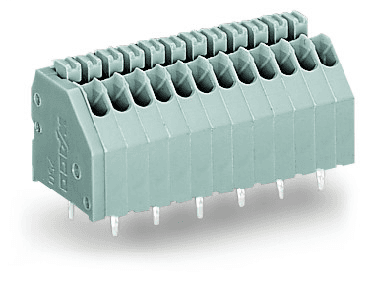

250-1424 WAGO Industrial Automation Components

WAGO 250-1424 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1. It features nominal and rated voltages of 160V in overvoltage category III/3, and 320V in category II/2, with a rated impulse voltage of 2.5kV for both categories. The rated current is 4A according to IEC/EN standards. Under UL 1059 approvals, it has a rated voltage and current of 300V and 5A for both Use Groups B and D. Similarly, CSA approvals indicate a rated voltage of 300V and rated current of 5A for Use Groups B and D. This part includes 24 connection points and potentials, with a single connection type and level. The connection technology is Push-in CAGE CLAMP with push-button actuation, accommodating solid and fine-stranded conductors ranging from 0.14 to 0.5mm2 (24 to 20 AWG), and a conductor diameter of 0.4 to 0.8mm. The strip length for connections is 8.5 to 9.5mm, with a conductor connection direction to PCB at 45 degrees. It has a pin spacing of 2.54mm, dimensions of 62.46mm in width, 16.7mm in height, 13.1mm height from the surface, and 12mm in depth. The solder pin length is 3.6mm, with dimensions of 0.4 x 0.75mm, and a drilled hole diameter with tolerance of 1.1 (+0.1)mm. It features THT PCB contact with staggered solder pin arrangement and one solder pin per potential. The part is gray, made from Polyamide (PA66) with a flammability class of V0, and uses a copper alloy for the clamping spring and tin for contact plating. It has a fire load of 0.174MJ and weighs 8.5g. The operational temperature range is -60 to +105°C. It is categorized under Product Group 4 (Printed Circuit Connectors), with eClass 10.0 and 9.0, and ETIM 8.0 and 7.0 classifications as 27-44-04-01 and EC002643, respectively. Packaged in boxes of 60 (15 pcs per SPU), it is manufactured in CH, with a GTIN of 4017332749954 and a customs tariff number of 85369010000. This product is RoHS compliant without exemptions.
