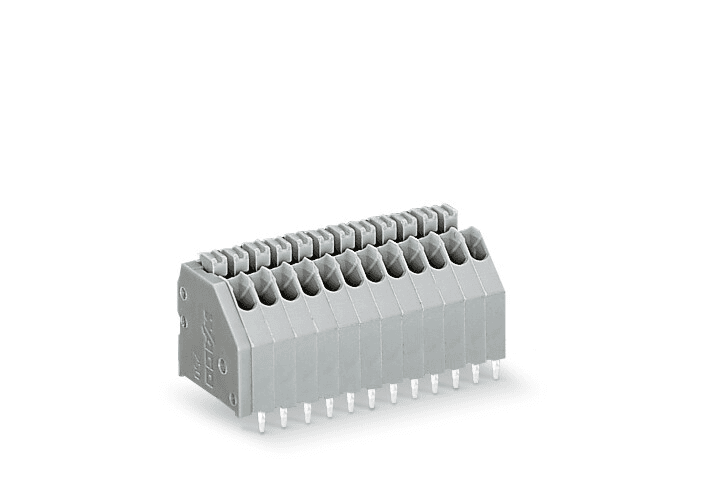

250-304 WAGO Industrial Automation Components

WAGO 250-304 is an automation part designed for printed circuit connections, featuring a short circuit breaking rating as per IEC/EN 60664-1 standards. It supports a nominal voltage of 100V (III/3), 160V (III/2), and 320V (II/2) with a rated impulse voltage of 2.5kV across these categories. The rated current is 4A according to IEC/EN standards, while UL and CSA ratings vary, offering 300V at 5A for UL (Use Group B and D) and 300V at 2A for CSA (Use Group B and D). This part includes 4 connection points with a single connection type utilizing Push-in CAGE CLAMP technology and push-button actuation. It accommodates solid and fine-stranded conductors ranging from 0.14 to 0.5mm2 (24 to 20 AWG) and features a conductor connection direction to PCB at 45 degrees. The physical specifications include a pin spacing of 2.5mm, width of 11.5mm, height of 16.7mm, and depth of 12mm, with a solder pin length of 3.6mm. The insulation material is Polyamide (PA66), and the clamping spring is made from a copper alloy with tin contact plating. It operates within a temperature range of -60 to +105°C and is RoHS compliant. The product is packaged in boxes of 400 pieces and has a GTIN of 4050821573104.
