250-416 WAGO Industrial Automation Components

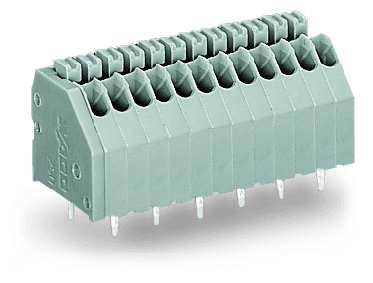

WAGO 250-416 is an automation part with a short circuit breaking rating and electrical data compliant with IEC/EN 60664-1 standards. It features nominal and rated voltages of 160V in overvoltage category III/2 and III/3, with a rated impulse voltage of 2.5kV. For overvoltage category II/2, the nominal voltage is 320V with a rated surge voltage of 2.5kV, and the rated current is 4A. UL and CSA approvals indicate a rated voltage of 300V and a rated current of 5A for both Use Groups B and D. The part includes 16 connection points and potentials, with a single connection type and level utilizing Push-in CAGE CLAMP technology, push-button actuation, and accommodates solid and fine-stranded conductors ranging from 0.14 to 0.5mm2 (24 to 20 AWG). The physical specifications include a pin spacing of 2.5mm, dimensions of 41.5mm in width, 16.7mm in height, 13.1mm height from the surface, and 12mm in depth, with a solder pin length of 3.6mm. The PCB contact is THT with a staggered solder pin arrangement and one solder pin per potential. The part is made from Polyamide (PA66) in gray, with a copper alloy clamping spring, tin contact plating, and meets UL94 V0 flammability standards. It operates within a temperature range of -60 to +105°C, weighs 5.8g, and is RoHS compliant without exemptions. The product is packaged in boxes of 100 units, with a country of origin CH, GTIN 4044918643375, and a customs tariff number of 85369010000.
