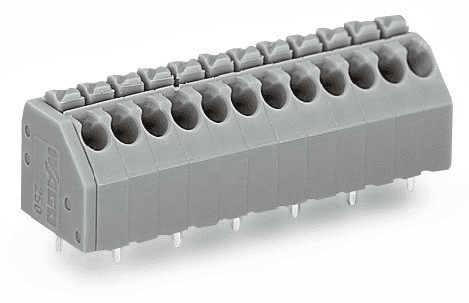

250-219 WAGO Industrial Automation Components

WAGO 250-219 is an automation part with a short circuit breaking rating and electrical data compliant with IEC/EN 60664-1 standards. It features a nominal voltage of 250V (III/3), 320V (III/2), and 630V (II/2), with a rated impulse voltage of 4kV for all categories. The rated current is 8A, and it adheres to overvoltage category III / Pollution degree 2. UL 1059 approvals include a rated voltage of 300V and rated currents of 8A (Use Group B) and 5A (Use Group D). CSA approvals specify a rated voltage of 300V and rated currents of 10A for both Use Group B and D. The part has 19 connection points and potentials, with a single connection type and level. The push-in CAGE CLAMP connection technology is activated by a push-button, accommodating solid and fine-stranded conductors ranging from 0.2 to 1.5mm2 / 24 to 16 AWG, and fine-stranded conductors with insulated or uninsulated ferrules from 0.25 to 1mm2. The strip length for connections is between 8.5 to 9.5mm / 0.33 to 0.37 inches, with a conductor connection direction to PCB at 45 degrees and a pole number of 19. Physical specifications include a pin spacing of 3.5mm / 0.138 inches, width of 68mm / 2.677 inches, height of 16.7mm / 0.657 inches, height from the surface of 13.1mm / 0.516 inches, depth of 12mm / 0.472 inches, solder pin length of 3.4mm, and solder pin dimensions of 0.4 x 0.75mm. The drilled hole diameter with tolerance is 1.1 (+0.1)mm. It features a THT PCB contact with a staggered solder pin arrangement and one solder pin per potential. The part is gray, made from Polyamide (PA66) in material group I, with a flammability class of UL94 V0, and uses a copper alloy for the clamping spring and tin for contact plating. It has a fire load of 0.196MJ and weighs 9.1g. The operational temperature range is from -60 to +105°C. It belongs to product group 4 (Printed Circuit Connectors), with eClass 10.0 and 9.0 classification 27-44-04-01, ETIM 8.0 and 7.0 classification EC002643, packaged in boxes of 60 (15) pcs per unit. The country of origin is CH, with a GTIN of 4044918648929 and a customs tariff number of 85369010000. It is RoHS compliant without exemptions.
