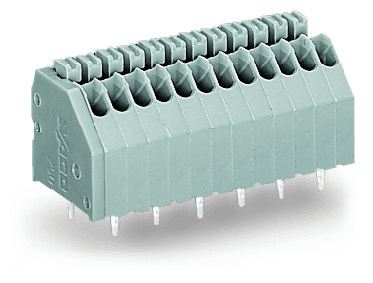

250-411 WAGO Industrial Automation Components

WAGO 250-411 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1. It features nominal voltages of 160V in overvoltage category III/3 and 320V in category II/2, with rated impulse voltages of 2.5kV for both categories. The rated current according to IEC/EN is 4A. Under UL 1059 approvals, it has a rated voltage of 300V and a rated current of 5A for both Use Groups B and D. CSA approvals mirror the UL ratings with a 300V rated voltage and 5A rated current for Use Groups B and D. This part has 11 connection points, with a single connection type utilizing Push-in CAGE CLAMP technology and push-button actuation. It accommodates solid and fine-stranded conductors ranging from 0.14 to 0.5mm2 (24 to 20 AWG), with a conductor connection direction to PCB at 45 degrees. The physical specifications include a pin spacing of 2.5mm, dimensions of 29mm in width, 16.7mm in height, 13.1mm height from the surface, and 12mm in depth. The solder pin length is 3.6mm, with dimensions of 0.4 x 0.75mm and a drilled hole diameter of 1.1mm (+0.1). It does not support plugging without loss of pin spacing and features THT PCB contact with a staggered solder pin arrangement. The terminal strip is made from Polyamide (PA66) in gray, with a flammability class of V0 and a copper alloy clamping spring. The contact plating is tin, and it has a fire load of 0.094MJ and weighs 4g. It operates within a temperature range of -60 to +105°C. Packaged in boxes of 160 pieces, it is manufactured in Switzerland with a GTIN of 4044918643085 and a customs tariff number of 85369010000. This product complies with RoHS without exemptions.
