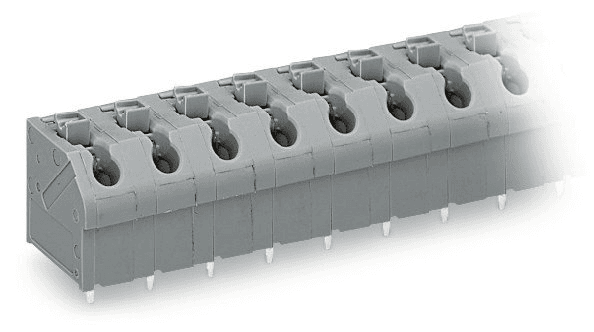

250-605 WAGO Industrial Automation Components

WAGO 250-605 is an automation part with a short circuit breaking rating and electrical data adhering to IEC/EN 60664-1 standards, including a nominal voltage (III/3) of 500V, rated impulse voltage (III/3) of 6kV, rated voltage (III/2) of 630V, rated impulse voltage (III/2) of 6kV, nominal voltage (II/2) of 1000V, rated surge voltage (II/2) of 6kV, and a rated current of 17.5A. It features UL 1059 approval with rated voltages of 300V and rated currents of 10A for both Use Group B and D, alongside CSA approval with identical ratings for Use Groups B and D. The part includes 5 connection points, a single connection type, and one level, utilizing Push-in CAGE CLAMP technology with push-button actuation. It accommodates solid conductors from 0.5 to 1.5mm2 (20 to 14 AWG), fine-stranded conductors from 0.75 to 1.5mm2 (18 to 16 AWG), and both insulated and uninsulated ferrules from 0.5 to 1mm2, with specific conductor cross-section notes for fine-stranded conductors. The strip length is 9 to 10mm (0.35 to 0.39 inches), and the conductor connection direction to PCB is at 45 degrees. It has a pole number of 5, pin spacing of 7.5mm (0.295 inches), dimensions of 36.5mm width, 20.5mm height, 16.5mm height from the surface, and 13mm depth, with solder pin length of 4mm and dimensions of 0.5 x 0.75mm. The drilled hole diameter with tolerance is 1.2 (+0.1)mm, and it does not support plugging without loss of pin spacing. The PCB contact is THT with an in-line solder pin arrangement and one solder pin per potential. The part is gray, made from Polyamide (PA66) with a flammability class of V0, chrome-nickel spring steel (CrNi) for the clamping spring, electrolytic copper (ECu) for the contact material, and tin plating. It has a fire load of 0.144MJ, weighs 6.1g, and operates within a temperature range of -60 to +105°C. It is categorized under Product Group 4 (Printed Circuit Connectors), with eClass 10.0 and 9.0 classifications of 27-44-04-01, ETIM 8.0 and 7.0 classifications of EC002643, packaged in boxes of 120 (30) pieces per unit, manufactured in Poland, with a GTIN of 4044918304184, customs tariff number of 85369010000, and is RoHS compliant without exemptions.
