2626-1101 WAGO Industrial Automation Components

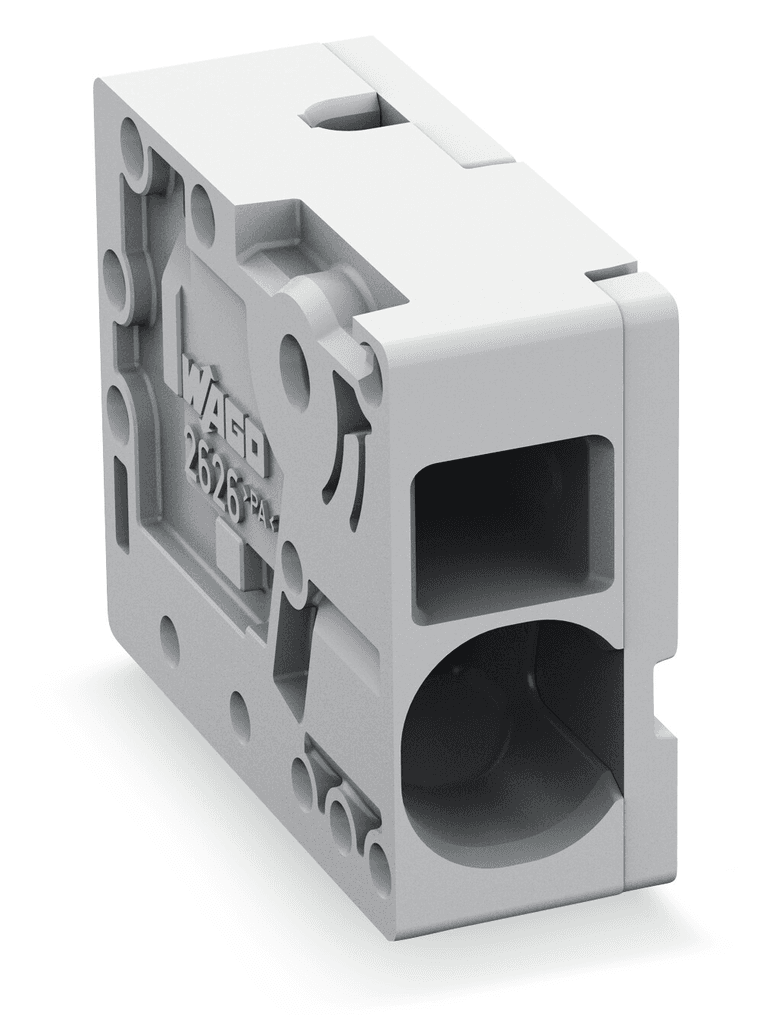

WAGO 2626-1101 is a single-pole PCB terminal block designed for feed-through mounting with a push-in CAGE CLAMP connection technology. It supports a connection point and total number of potentials of 1, with a connection type and level number also at 1. The terminal block accommodates solid and fine-stranded conductors ranging from 0.2 to 10mm2 (24 to 8 AWG), and fine-stranded conductors with insulated, uninsulated, and twin ferrules from 0.25 to 6mm2 and 0.25 to 2.5mm2 respectively. The recommended strip length for wires is 13 to 15mm (0.51 to 0.59 inches), and the conductor connection direction to PCB is 0°. It features a pole number of 1, pin spacing of 7.5mm (0.295 inches), and dimensions including a width of 9.3mm (0.366 inches), height of 23.6mm (0.929 inches), height from the surface of 19.6mm (0.772 inches), and depth of 24.2mm (0.953 inches). The solder pin length is 4mm with dimensions of 1.5 x 1mm and a drilled hole diameter with tolerance of 2 (+0.1)mm. The terminal block is made from Polyamide (PA66) with a flammability class per UL94 of V0, and the clamping spring is made from Chrome-Nickel spring steel (CrNi), with contact material of Electrolytic Copper (ECu) plated with Tin. It weighs 4.6g and operates within a temperature range of -60 to +105°C, with a processing temperature range of -35 to +60°C. This product is RoHS compliant, with a packaging unit (SPU) of 200 pieces per box, and it is manufactured in Germany (DE). The electrical ratings include a nominal voltage of 1000V (III/3, III/2, II/2), rated impulse voltage of 8kV, and a rated current of 48A according to IEC/EN standards, with UL and CSA ratings at 600V and 38A for Use Group B, and 1000V and 38A for Use Group C under CSA.
