2626-1359 WAGO Industrial Automation Components

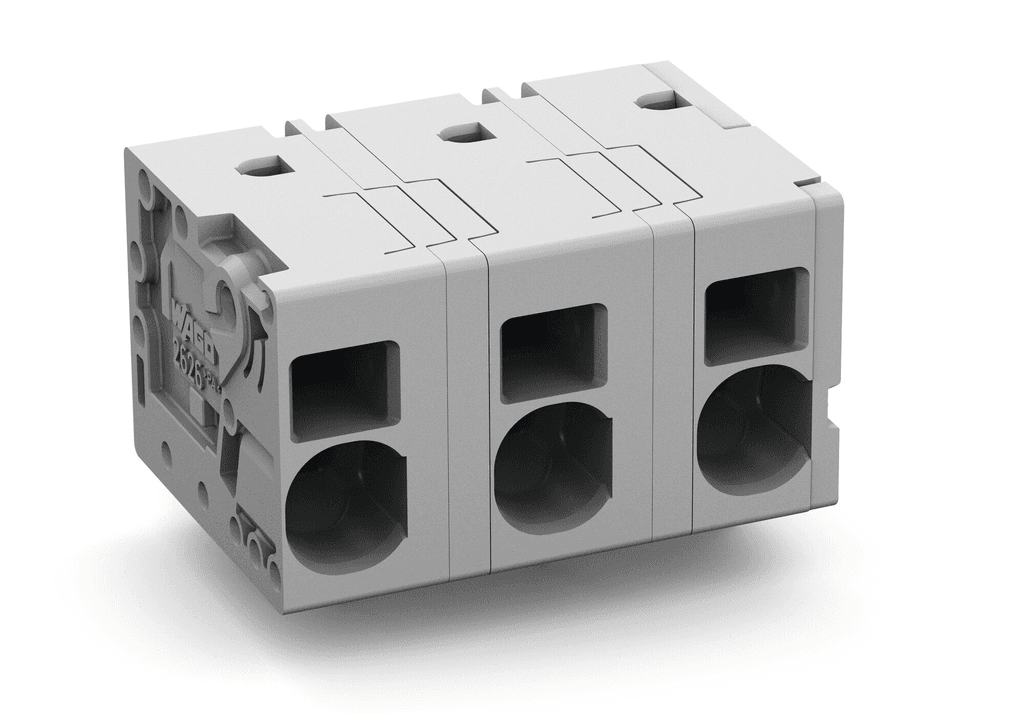

WAGO 2626-1359 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1, featuring nominal, rated impulse, and rated surge voltages of 1000V and 8kV respectively across various overvoltage categories and pollution degrees. It supports a rated current of 48A according to IEC/EN standards, while under UL 1059 and CSA approvals, it operates at a rated voltage of 600V and a rated current of 38A for both Use Groups B and C. This part offers 9 connection points and the same number of potentials, with a single connection type and level. It utilizes Push-in CAGE CLAMP technology for connections, accommodating solid and fine-stranded conductors ranging from 0.2 to 10mm2 or 24 to 8 AWG, and various ferrule sizes. The strip length for connections is between 13 and 15mm, with a conductor connection direction to PCB at 0° and a pole number of 9. Physically, it has a pin spacing of 12.5mm, dimensions of 109.3mm in width, 23.6mm in height, 24.2mm in depth, and a solder pin length of 4mm. It is designed for feed-through mounting with THT PCB contact and in-line solder pin arrangement. The terminal strip is gray, made from Polyamide (PA66) with a V0 flammability class, and uses Chrome-Nickel spring steel and Electrolytic Copper with tin plating for its clamping spring and contact materials, respectively. It weighs 48.4g and operates within a temperature range of -60 to +105°C. This part is RoHS compliant, packaged in boxes of 22 pieces, and has a country of origin of PL, with a GTIN of 4055143861700 and a customs tariff number of 85369010000.
