2626-3102 WAGO Industrial Automation Components

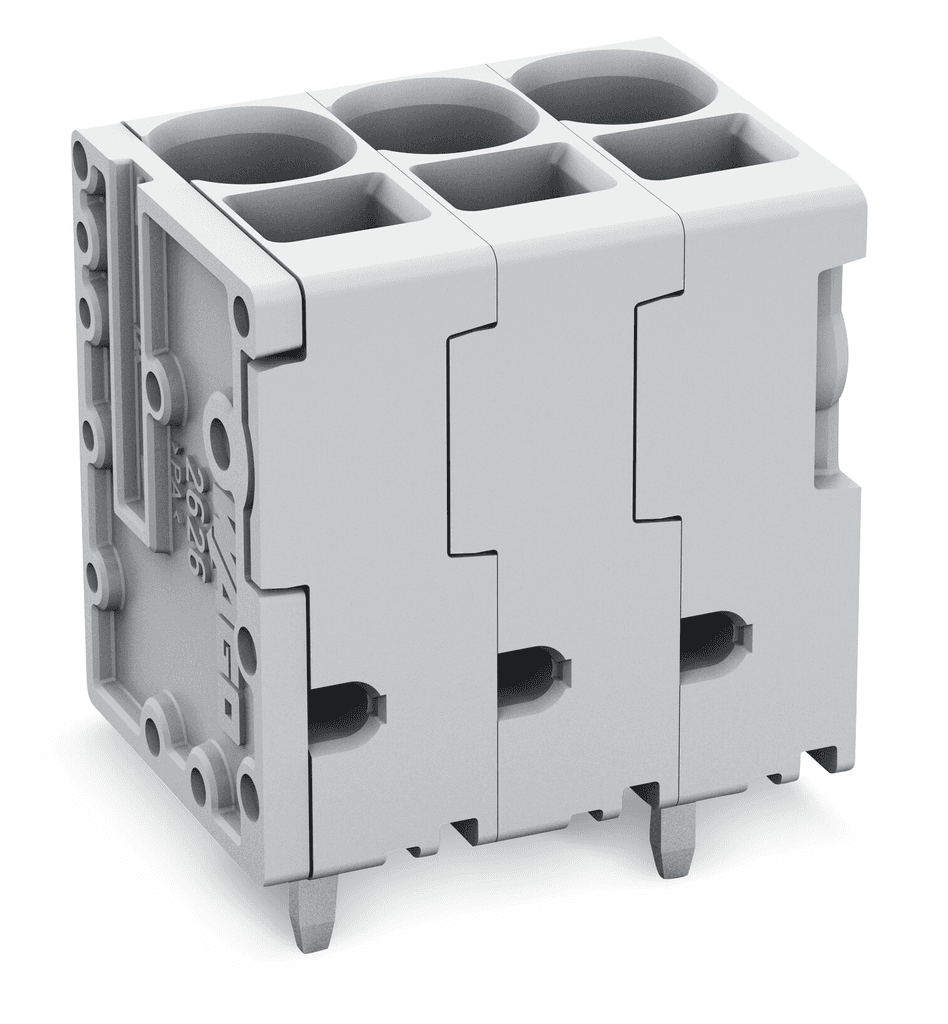

WAGO 2626-3102 is an automation part with a short circuit breaking rating and electrical data ratings per IEC/EN including a nominal voltage (III/3) of 630V, rated impulse voltage (III/3) of 6kV, rated voltage (III/2) of 630V, rated impulse voltage (III/2) of 6kV, nominal voltage (II/2) of 1000V, rated surge voltage (II/2) of 6kV, and a rated current of 48A. It has UL approvals with rated voltages and currents for different use groups: 300V and 38A for Group B, 150V and 38A for Group C, and 600V and 5A for Group D. CSA approvals include rated voltages and currents of 300V and 31A for Group B, 150V and 38A for Group C, and 600V and 5A for Group D. The part features 2 connection points, a total of 2 potentials, 1 connection type, and 1 level with a Push-in CAGE CLAMP connection technology, operating tool actuation type, and accommodates solid and fine-stranded conductors of various sizes. It has a pole number of 2, pin spacing of 7.5mm, dimensions including a width of 16.8mm, height of 28.2mm, depth of 18.5mm, and a solder pin length of 4mm. The part is designed for feed-through mounting, THT PCB contact, and has a gray color. It is made from Polyamide (PA66) with a flammability class of V0, chrome-nickel spring steel clamping spring, electrolytic copper contact material with tin plating, and weighs 8.4g. It operates within a temperature range of -60 to +105°C and is RoHS compliant. The part is packaged in boxes of 140 pieces, has a GTIN of 4055143731744, and is manufactured in Germany with a customs tariff number of 85369010000.
