2626-3358 WAGO Industrial Automation Components

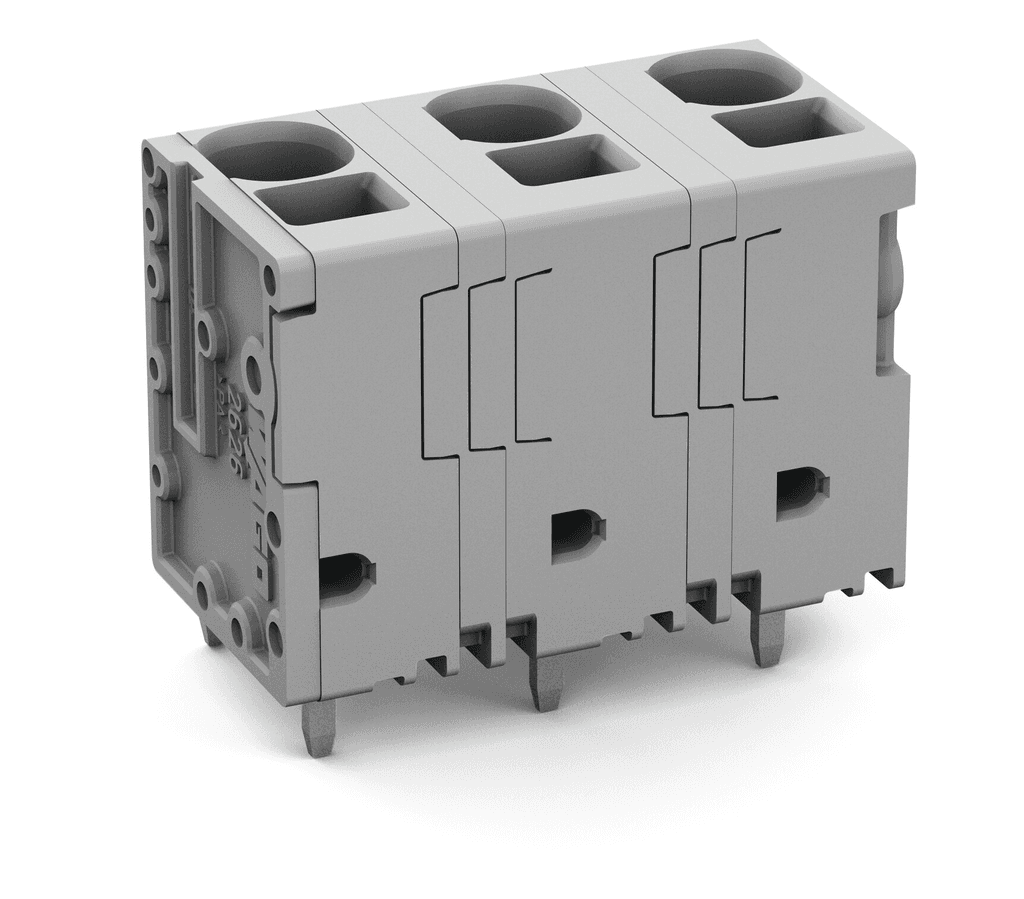

WAGO 2626-3358 is an automation part with a short circuit breaking rating and electrical data ratings per IEC/EN 60664-1, including a nominal voltage (III/3) of 1000V, rated impulse voltage (III/3) of 8kV, rated voltage (III/2) of 1000V, rated impulse voltage (III/2) of 8kV, nominal voltage (II/2) of 1000V, rated surge voltage (II/2) of 8kV, and a rated current of 48A. It has UL 1059 approval with rated voltages of 600V and rated currents of 38A for both Use Group B and C, as well as CSA approval with identical ratings for voltage and current. The part features 8 connection points, a single connection type, and one level, utilizing Push-in CAGE CLAMP technology with an operating tool actuation type. It accommodates solid and fine-stranded conductors ranging from 0.2 to 10mm2 (24 to 8 AWG), including fine-stranded conductors with insulated, uninsulated, and twin ferrules. The strip length for connections is 13 to 15mm (0.51 to 0.59 inches), and the conductor connection direction to PCB is 90 degrees. Physically, it has a pin spacing of 12.5mm (0.492 inches), a width of 96.8mm (3.811 inches), a height of 28.2mm (1.11 inches), a depth of 18.5mm (0.728 inches), and solder pin dimensions of 1.5 x 1mm. It is designed for feed-through mounting with THT PCB contact and an in-line solder pin arrangement. The part is made from Polyamide (PA66) in gray, with a flammability class per UL94 of V0, and uses Chrome-Nickel spring steel (CrNi) for the clamping spring and Electrolytic Copper (ECu) with tin plating for contacts. It weighs 42.3g and operates within a temperature range of -60 to +105°C. The part is RoHS compliant, packaged in boxes of 32 pieces, and has a country of origin of PL, with a GTIN of 4055143897884 and a customs tariff number of 85369010000.
