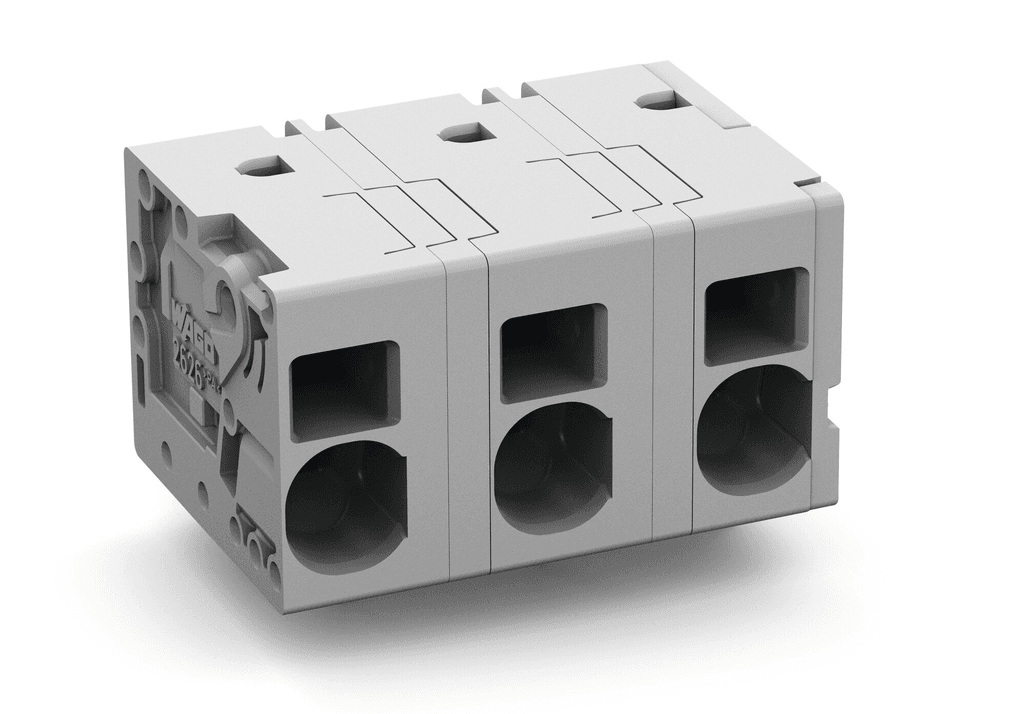

2626-1352 WAGO Industrial Automation Components

WAGO 2626-1352 is an automation part with a short circuit breaking rating and electrical data that adhere to IEC/EN 60664-1 standards, including a nominal voltage of 1000V for overvoltage categories III/2 and III/3, rated impulse voltage of 8kV, and a rated current of 48A. It is UL 1059 approved with a rated voltage of 600V and a rated current of 38A for both Use Groups B and C, and similarly, CSA approved for the same voltage and current ratings. This part features two connection points, supports a single connection type across one level, and utilizes Push-in CAGE CLAMP technology for connection, requiring an operating tool for actuation. It accommodates solid and fine-stranded conductors ranging from 0.2 to 10mm2 (24 to 8 AWG), including fine-stranded conductors with insulated, uninsulated, and twin ferrules. The strip length for connections is between 13 to 15mm, with a conductor connection direction to PCB at 0° and a pole number of 2. Physically, it has a pin spacing of 12.5mm, dimensions of 21.8mm in width, 23.6mm in height, 19.6mm height from the surface, and 24.2mm in depth, with solder pin length of 4mm and dimensions of 1.5 x 1mm. It is designed for feed-through mounting, THT PCB contact, and features an in-line solder pin arrangement. The part is made from Polyamide (PA66) in gray, with a flammability class of V0, and uses Chrome-Nickel spring steel for the clamping spring and Electrolytic Copper with tin plating for contacts, weighing 10.1g. It operates within a temperature range of -60 to +105°C, with a processing temperature range of -35 to +60°C. Packaged in boxes of 100 pieces, it is manufactured in Poland, has a GTIN of 4055143861724, and a customs tariff number of 85369010000. It complies with RoHS without exemptions.
