2626-3104 WAGO Industrial Automation Components

Name: 2626-3104
Brand: WAGO

Part#:2626-3104

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

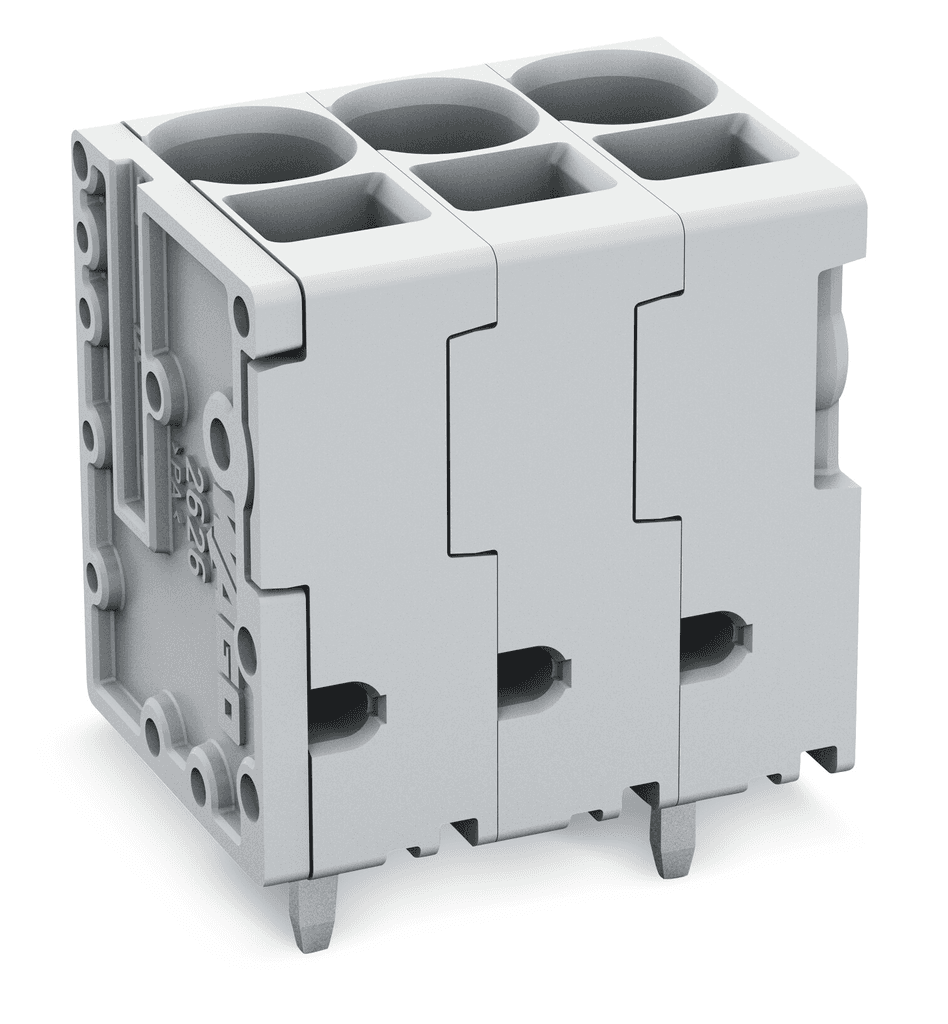

2626-3104 WAGO - PCB terminal block; Pin spacing 7.5 mm; double pinning; 4-pole; Push-in CAGE CLAMP®; gray

Product Details

Conductor Size
10 millimeters, 8 american wire gauge
Operating Temperature
105 degrees celsius
Depth
0.728 inches, 18.5 millimeters
Width
1.252 inches, 31.8 millimeters
Actuator
Operating Tool
Insulation Material
Polyamide
Contact Material
Copper
Strip Length
0.59 inches, 15 millimeters
Color
Gray
Mounting Type
Feed-through Mounting
Height
1.11 inches, 28.2 millimeters
Contact Type
Tin
Weight
16.256 grams
Current
38 amperes, 48 amperes
Flammability Class
V0
Voltage
300 volts, 630 volts
Country of Origin
Poland
Package Type
Box

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
