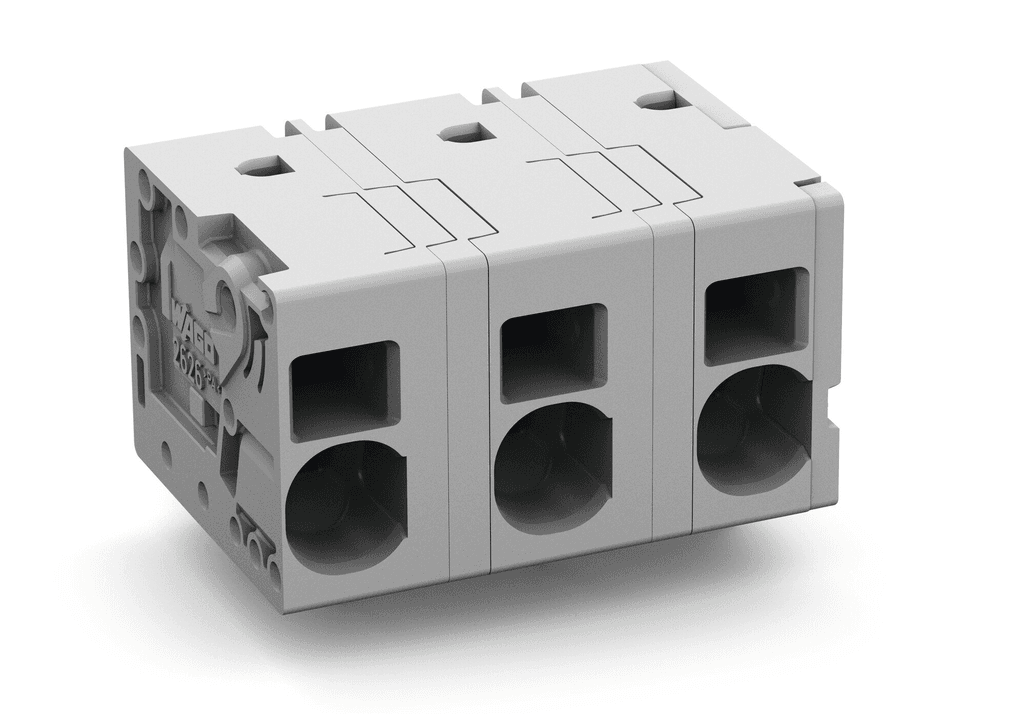

2626-1360 WAGO Industrial Automation Components

WAGO 2626-1360 is an automation part with a short circuit breaking rating and electrical data ratings per IEC/EN 60664-1, including a nominal voltage (III/3) of 1000V, rated impulse voltage (III/3) of 8kV, rated voltage (III/2) of 1000V, rated impulse voltage (III/2) of 8kV, nominal voltage (II/2) of 1000V, rated surge voltage (II/2) of 8kV, and a rated current of 48A. It has UL 1059 approval with rated voltages of 600V and rated currents of 38A for both Use Group B and C, and similar CSA ratings. The part features 10 connection points, a single connection type, and one level, utilizing Push-in CAGE CLAMP technology with an operating tool actuation type. It accommodates solid and fine-stranded conductors ranging from 0.2 to 10mm2 (24 to 8 AWG), with specific capacities for fine-stranded conductors with insulated, uninsulated, and twin ferrules. The strip length for connections is between 13 to 15mm, and the conductor connection direction to PCB is 0°. It has a pole number of 10, pin spacing of 12.5mm, dimensions of 121.8mm in width, 23.6mm in height, 19.6mm height from the surface, and 24.2mm in depth, with a solder pin length of 4mm and dimensions of 1.5 x 1mm. The drilled hole diameter with tolerance is 2 (+0.1)mm. It is designed for feed-through mounting, THT PCB contact, in-line solder pin arrangement, and two solder pins per potential. The part is gray, made from Polyamide (PA66) with a V0 flammability class, Chrome-Nickel spring steel (CrNi) clamping spring, Electrolytic Copper (ECu) contact material, and tin contact plating, weighing 53.8g. It operates within a temperature range of -60 to +105°C, with a processing temperature of -35 to +60°C. It is RoHS compliant, packaged in boxes of 22 pieces, manufactured in Poland, with a GTIN of 4055143861748 and a customs tariff number of 85369010000.
