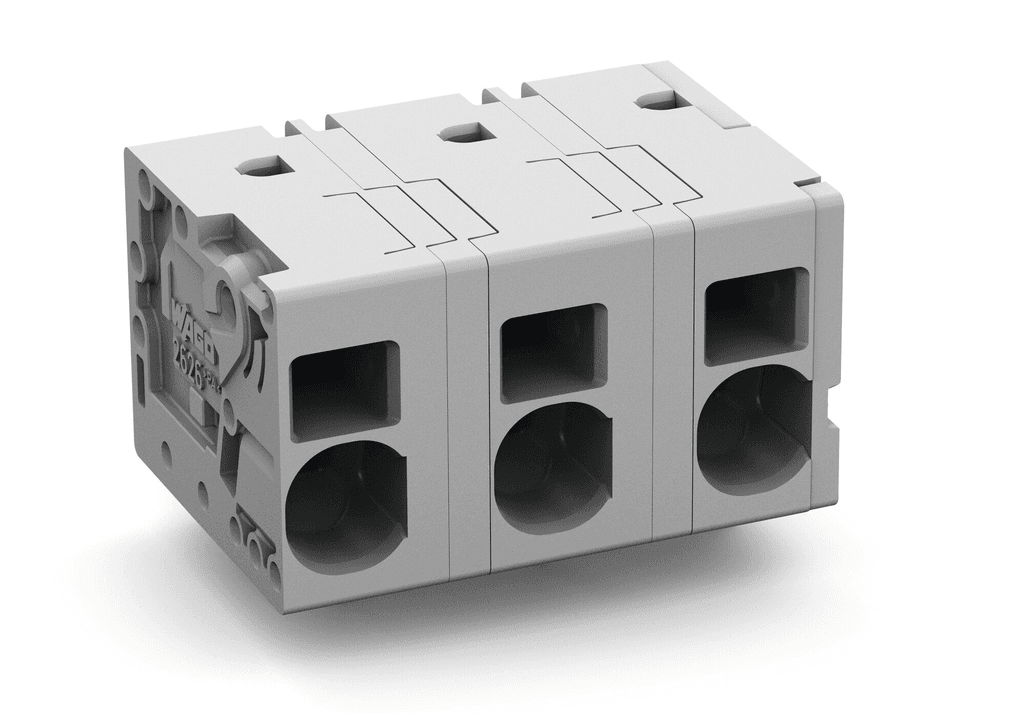

2626-1361 WAGO Industrial Automation Components

WAGO 2626-1361 is an automation part with a short circuit breaking rating and electrical data ratings per IEC/EN 60664-1, including a nominal voltage (III/3) of 1000V, rated impulse voltage (III/3) of 8kV, rated voltage (III/2) of 1000V, rated impulse voltage (III/2) of 8kV, nominal voltage (II/2) of 1000V, rated surge voltage (II/2) of 8kV, and a rated current of 48A. It has UL 1059 approval with rated voltages UL (Use Group B and C) of 600V and rated currents UL of 38A, along with CSA approval for the same rated voltages and currents. The part features 11 connection points, a single connection type, and one level, utilizing Push-in CAGE CLAMP technology for connection, with an operating tool actuation type. It accommodates solid and fine-stranded conductors ranging from 0.2 to 10mm2 / 24 to 8 AWG, including fine-stranded conductors with insulated, uninsulated, and twin ferrules. The strip length for connection is 13 to 15mm / 0.51 to 0.59 inches, with a conductor connection direction to PCB of 0° and a pole number of 11. Physically, it has a pin spacing of 12.5mm / 0.492 inches, a width of 134.3mm / 5.287 inches, a height of 23.6mm / 0.929 inches, a height from the surface of 19.6mm / 0.772 inches, and a depth of 24.2mm / 0.953 inches. The solder pin length is 4mm, with dimensions of 1.5 x 1mm, and a drilled hole diameter with tolerance of 2 (+0.1)mm. It is designed for feed-through mounting, with THT PCB contact, in-line solder pin arrangement, and two solder pins per potential. The part is gray, made from Polyamide (PA66) with a flammability class per UL94 of V0, and features Chrome-Nickel spring steel (CrNi) for the clamping spring, Electrolytic Copper (ECu) for the contact material, and tin plating. It weighs 59.3g and operates within a temperature range of -60 to +105°C, with a processing temperature of -35 to +60°C. It is RoHS compliant, packaged in boxes of 20 pieces, with a country of origin of PL, a GTIN of 4055143861755, and a customs tariff number of 85369010000.
