732-102/026-000 WAGO Industrial Automation Components

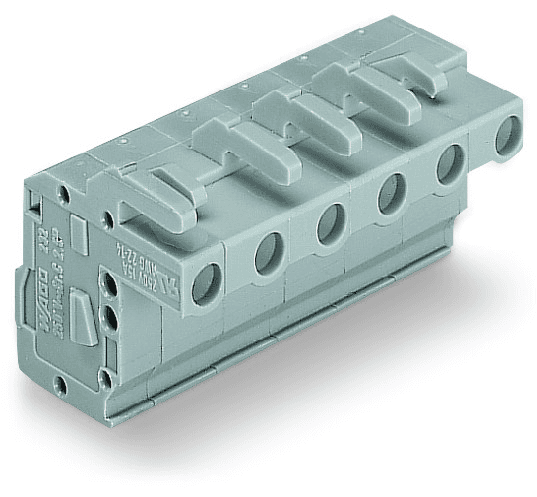

WAGO 732-102/026-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), all with a rated impulse voltage of 6kV and a rated current of 14A. UL and CSA approvals include ratings of 300V and 600V with currents ranging from 10A to 15A, depending on the use group. It features two connection points, a single connection type, and one level, utilizing CAGE CLAMP technology for connection, compatible with solid and fine-stranded conductors of various sizes. The connector has a pin spacing of 7.5mm, dimensions of 14.9mm in width, 23.9mm in height, and 22.75mm in depth, and is designed with angled orientation, anti-rotation protection, and variable coding. The female connector/socket is made from Polyamide (PA66) with a flammability class of UL94 V0, and the contacts are a copper alloy with tin plating. It operates within a temperature range of -60 to +85°C, has a fire load of 0.109MJ, and weighs 4.4g. This product is RoHS compliant, packaged in boxes of 100 pieces, and has a GTIN of 4044918391467.
