732-125/026-000 WAGO Industrial Automation Components

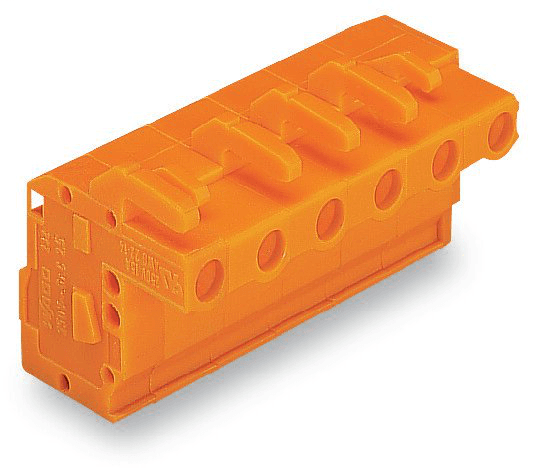

WAGO 732-125/026-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 500V, 630V, and 1000V for different overvoltage categories and pollution degrees, all with a rated impulse voltage of 6kV and a rated current of 14A. UL and CSA approvals are included, with UL ratings of 300V and 600V for different use groups and a rated current of 15A and 10A, respectively. It features 5 connection points, a single connection type with CAGE CLAMP technology, and supports solid and fine-stranded conductors ranging from 0.08 to 2.5mm2. The connector has a pole number of 5, with a pin spacing of 7.62mm, and is designed with an angled, anti-rotation structure. The female connector/socket is made from Polyamide (PA66) with a tin-plated copper alloy contact material and a chrome-nickel spring steel clamping spring. It operates within a temperature range of -60 to +85°C, is RoHS compliant, and comes in an orange color. The product is packaged in boxes of 50 pieces, with a weight of 11.2g per unit, and is manufactured in Germany.
