732-107/026-000 WAGO Industrial Automation Components

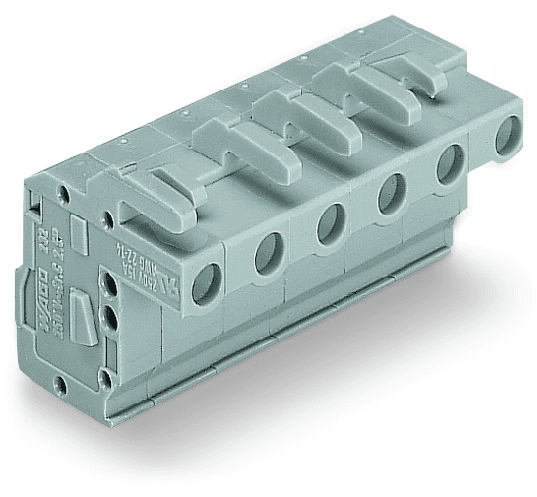

WAGO 732-107/026-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as specified in DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to electrical ratings per IEC/EN 60664-1, with nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), rated impulse voltage of 6kV across these categories, and a rated current of 14A. UL and CSA approvals include ratings of 300V and 600V with currents of 15A and 10A depending on the use group, showcasing its compliance with UL 1059 and CSA standards. It features 7 connection points, all utilizing CAGE CLAMP technology for secure connections, compatible with solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), and includes angled design with anti-rotation protection. The connector is made from Polyamide (PA66) in gray, with a chrome-nickel spring steel (CrNi) clamping spring, copper alloy contacts, and tin plating. It has a flammability class of UL94 V0, operates within a temperature range of -60 to +85°C, and is RoHS compliant without exemptions. The product is packaged in boxes of 50 pieces, with a weight of 15.6g per unit, and is manufactured in Germany (DE), as indicated by its country of origin.
