732-103/026-000 WAGO Industrial Automation Components

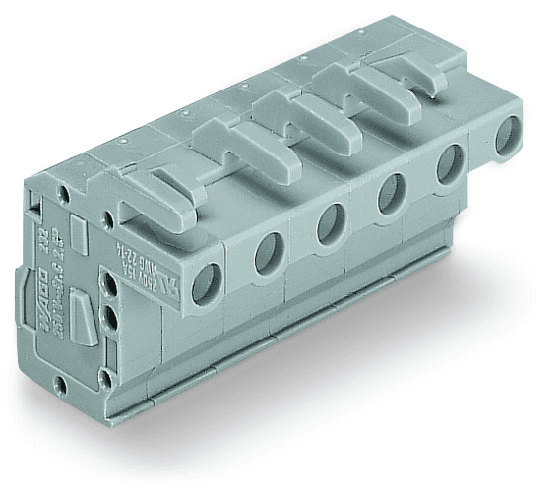

WAGO 732-103/026-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), all with a rated impulse voltage of 6kV and a rated current of 14A. UL and CSA approvals include ratings of 300V and 600V with currents up to 15A, depending on the use group. The connector features 3 connection points, supports a single connection type across one level, and utilizes CAGE CLAMP technology for secure connections. It accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), with specific allowances for ferruled conductors. The physical dimensions include a pin spacing of 7.5mm, with a width of 22.4mm, height of 23.9mm, and depth of 22.75mm. It is designed with angled orientation, variable coding, and anti-rotation protection but lacks mismating protection and locking features. The connector is made from Polyamide (PA66) in gray, with a chrome-nickel spring steel clamping spring, copper alloy contacts, and tin plating. It operates within a temperature range of -60 to +85°C and is RoHS compliant. The product is packaged in boxes of 100 pieces, with a GTIN of 4044918391610 and a customs tariff number of 85366990990, indicating its German origin.
