732-104/026-000 WAGO Industrial Automation Components

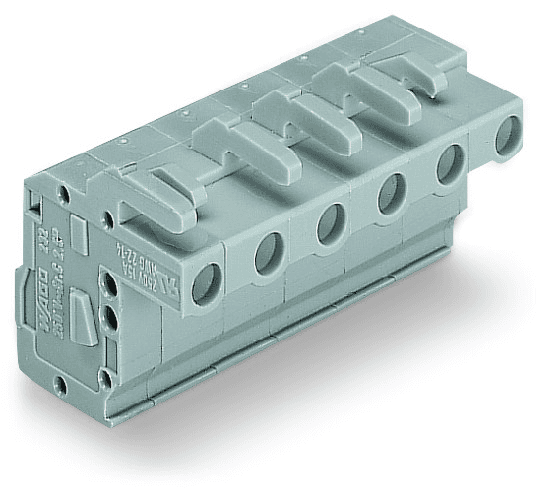

WAGO 732-104/026-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as specified in DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), and a rated impulse voltage of 6kV across these categories. The rated current is 14A according to IEC/EN standards. Under UL 1059 and UL 1977, it has a rated voltage of 300V for Use Group B and D, with respective currents of 15A and 10A, and a 600V rating with a 15A current under UL 1977. CSA approvals mirror the UL ratings for voltage and current. The connector features 4 connection points, supports a single connection type across one level, and utilizes CAGE CLAMP technology for connection, requiring an operating tool for actuation. It accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), with specific capacities for ferruled conductors. The physical dimensions include a pin spacing of 7.5mm, width of 29.9mm, height of 23.9mm, and depth of 22.75mm. It is designed with variable coding, angled design, and anti-rotation protection, but lacks mismating protection and locking features. The connector is gray, made from Polyamide (PA66) with a flammability class of UL94 V0, and uses a Chrome-Nickel spring steel for the clamping spring and a copper alloy with tin plating for contacts. It operates within a temperature range of -60 to +85°C, has a fire load of 0.211MJ, and weighs 8.8g. Packaged in boxes of 50, it is RoHS compliant without exemptions, produced in Germany, and identified by GTIN 4044918391689 with a customs tariff number of 85366990990.
