732-112/026-000 WAGO Industrial Automation Components

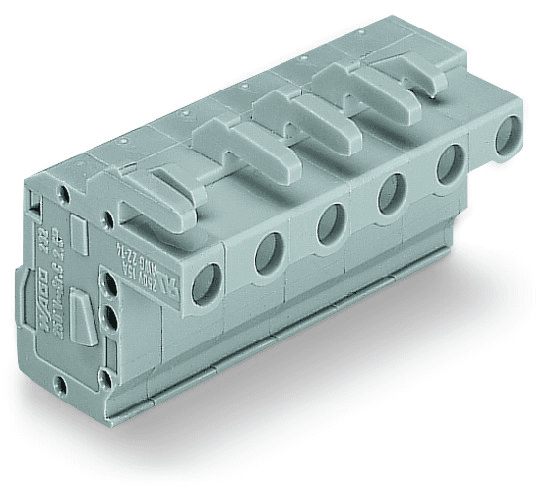

WAGO 732-112/026-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as specified in DIN EN 61984, indicating that these connectors should not be connected or disconnected under load or when live. It adheres to various electrical standards, including a nominal voltage of 500V to 1000V, rated impulse voltage of 6kV, and a rated current of 14A as per IEC/EN standards. UL and CSA approvals are also noted, with specific ratings for different use groups, including a rated voltage of up to 600V and a rated current of up to 15A under UL 1977. The connector features 12 connection points, supports a single connection type with CAGE CLAMP technology, and accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2. Its physical dimensions include a pin spacing of 7.5mm, width of 89.9mm, height of 23.9mm, and depth of 22.75mm. The design is angled with variable coding, anti-rotation protection, and is made from Polyamide (PA66) with a flammability class of UL94 V0. The connector is gray, with tin-plated copper alloy contacts and a chrome-nickel spring steel clamping spring. It operates within a temperature range of -60 to +85°C and is RoHS compliant. The product is packaged in boxes of 25 pieces, with the country of origin being Germany (DE), and it has a GTIN of 4044918392068.
