732-111/026-000 WAGO Industrial Automation Components

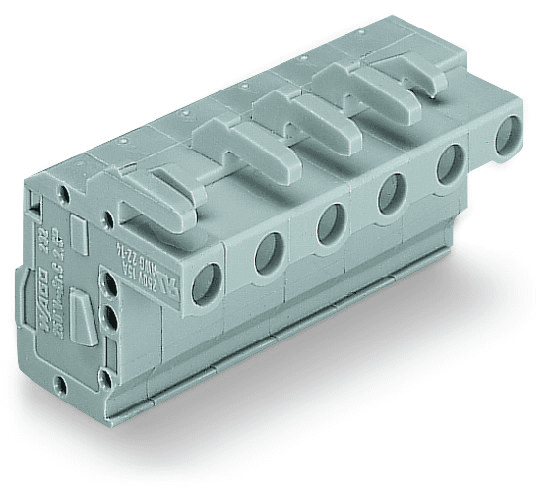

WAGO 732-111/026-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as specified in DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), all with a rated impulse voltage of 6kV and a rated current of 14A. UL and CSA approvals include ratings of 300V and 600V with currents up to 15A, depending on the use group. This connector features 11 connection points, supports a single connection type with CAGE CLAMP technology, and accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG). The physical dimensions include a pin spacing of 7.5mm, width of 82.4mm, height of 23.9mm, and depth of 22.75mm. It is designed with angled orientation, variable coding, and anti-rotation protection but lacks mismating protection and locking features. The connector is made from gray Polyamide (PA66) with a flammability class of UL94 V0, and the contacts are a copper alloy with tin plating. It operates within a temperature range of -60 to +85°C and is RoHS compliant. The product is packaged in boxes of 25 pieces, with a GTIN of 4044918392044 and a customs tariff number of 85366990990, indicating its origin in Germany.
