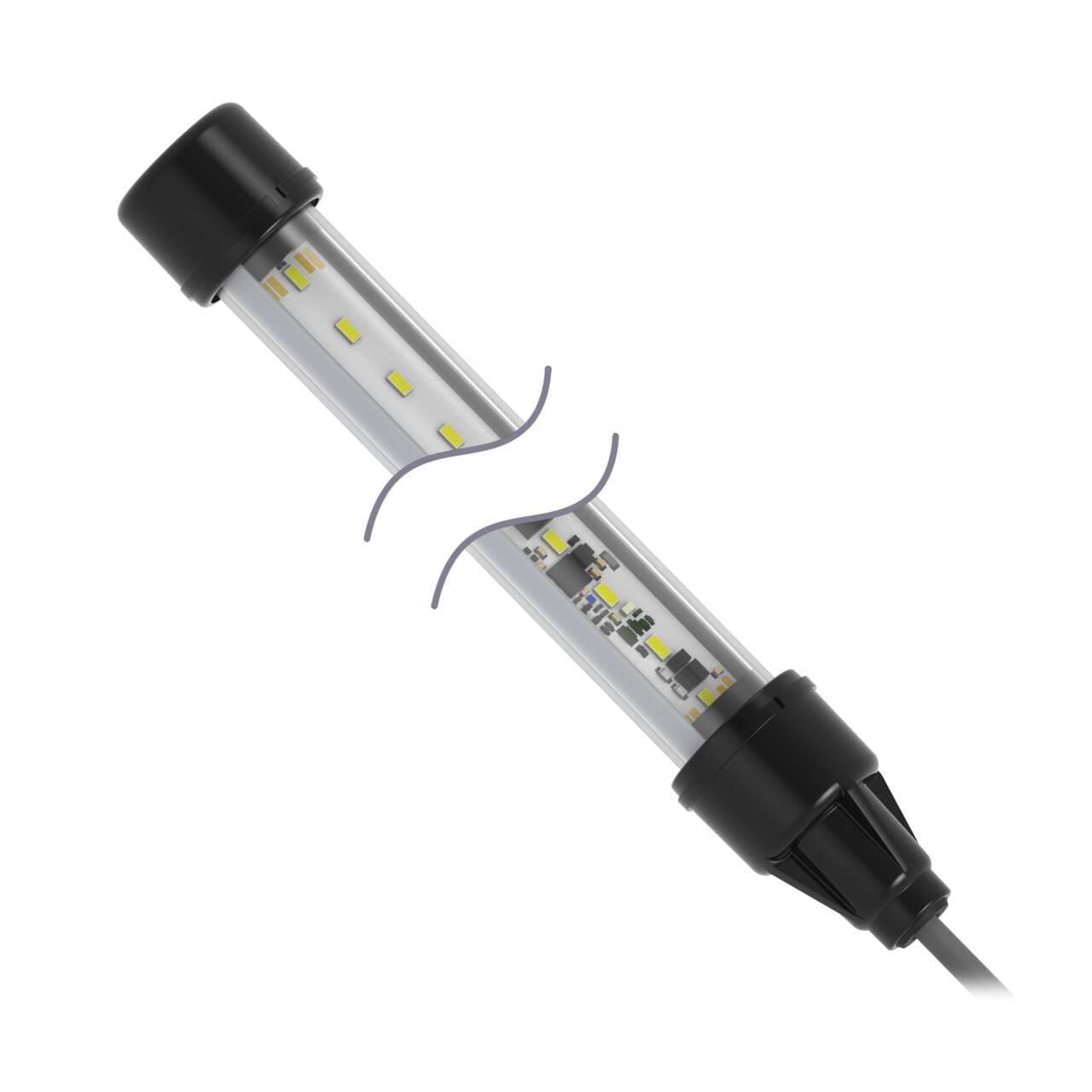

HLS27DWGRYB5-145C24 Banner Light Bars

Product Details

• Weight
  385.5532 g
• Country Of Origin
  MX
• Wireless
  No
• Pro-Editor Compatible (Discrete)
  No
• Modbus RTU
  No
• IO Link
  No
• Feature: Quick Disconnect
  No
• Multi-Color Device
  Single Color On
• Feature: Audible
  No
• Primary Window Material
  Polycarbonate Clear
• Storage Temp (°C)
  -40 to 70
• Environmental Rating
  IP66; IP67
• Number of Input Pins/Conductors
  4
• Color 3 - Wavelength/Color Temp/Coordinates
  625 nm
• Feature: Chemical Resistant
  Yes
• Feature: Hazardous Area
  Yes
• Min Op. Temperature (°C)
  -40
• Max Op. Temperature (°C)
  60
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Illuminated Length (LxWxH mm)
  141.0
Supply Voltage
24 V dc
Physical Dimensions (LxWxH or DxH mm)
38.1 x 229.0
Max Current Color (mA)
200
Lumens Color 5
45
Color Option 5
Blue
Animation Option 5
Solid On
Color 5 - Wavelength/Color Temp/Coordinates
470 nm
Color 4 - Wavelength/Color Temp/Coordinates
580 nm
Animation Option 4
Solid On
Color Option 4
Yellow
Lumens Color 4
225
Lumens Color 3
75
Animation Option 3
Solid On
Color Option 3
Red
Color 2 - Wavelength/Color Temp/Coordinates
525 nm
Lumens Color 2
160
Color Option 2
Green
Animation Option 2
Solid On
Connection
Cable
Color 1 - Wavelength/Color Temp/Coordinates
5000K (Daylight)
Lumens Color 1
260
Color Option 1
White
Animation Option 1
Solid On
Color Technology
Standard LED
Product Size (mm)
27
Number of Colors / Segments
5
Mounting Thread
No Thread
Cable Length (m)
2
Color Input Control
Multiple (One or more wires/color, enables more colors than input wires)
Indication
Yes
Illumination
Yes
Housing Style
Linear Strip
Power
DC
Primary Housing Material
Polycarbonate
Power Source
DC
