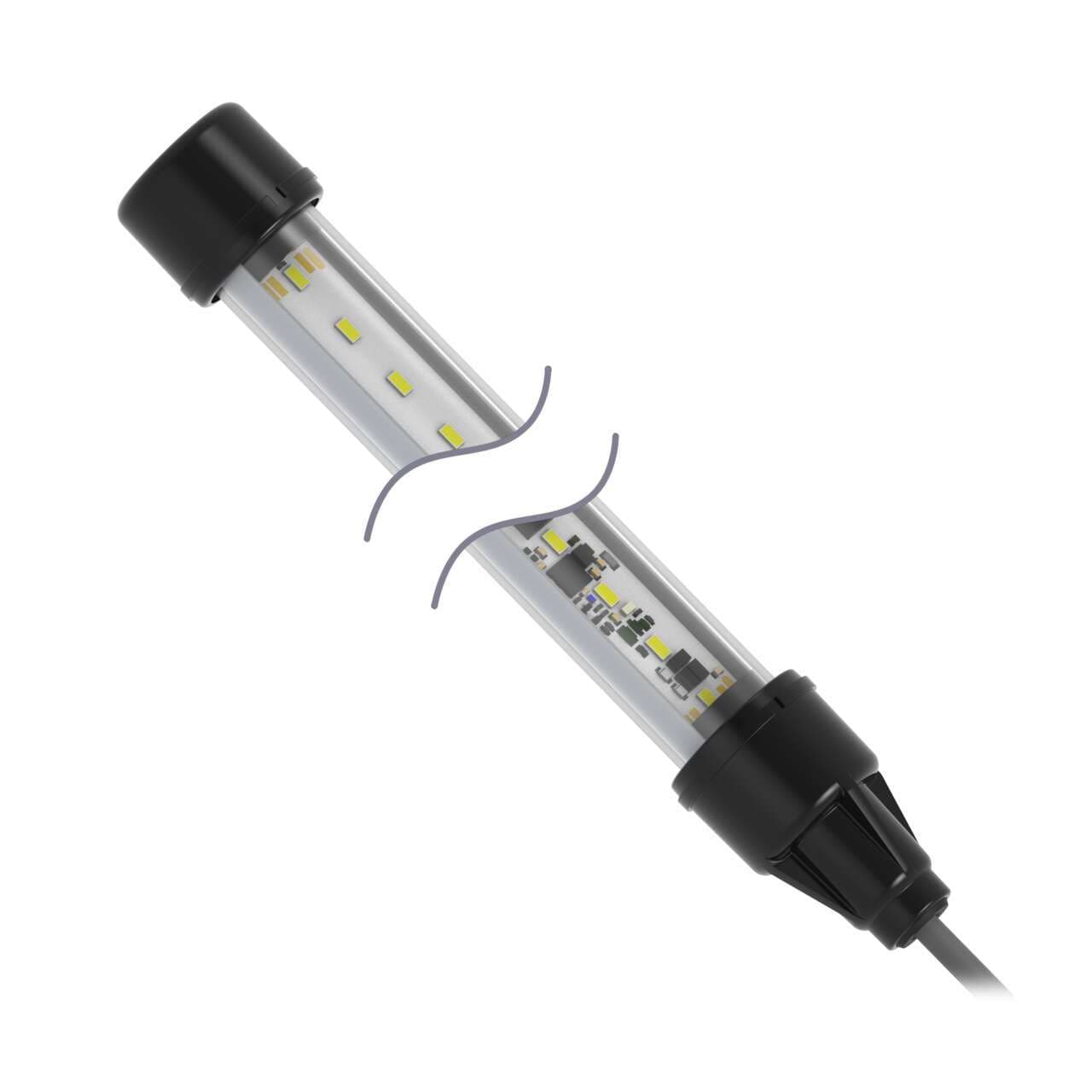

HLS27DWGRYB5-430C24 Banner Light Bars

Product Details

• Weight
  612.3492 g
• Country Of Origin
  MX
• Cable Length (m)
  2
• Number of Colors / Segments
  5
• Animation Option 2
  Solid On
• Lumens Color 4
  908
• Power Source
  DC
• Color Technology
  Standard LED
• Color Option 2
  Green
• Animation Option 4
  Solid On
• Mounting Thread
  No Thread
• Lumens Color 2
  638
• Color 4 - Wavelength/Color Temp/Coordinates
  580 nm
• Max Op. Temperature (°C)
  60
• Feature: Quick Disconnect
  No
• Indication
  Yes
• Color Option 1
  White
• Color 2 - Wavelength/Color Temp/Coordinates
  525 nm
• Number of Input Pins/Conductors
  4
• Power
  DC
Lumens Color 1
1035
Color 3 - Wavelength/Color Temp/Coordinates
625 nm
Lumens Color 5
173
Housing Style
Linear Strip
Animation Option 1
Solid On
Color Option 4
Yellow
Supply Voltage
24 V dc
Feature: Audible
No
Primary Housing Material
Polycarbonate
Product Size (mm)
27
Lumens Color 3
293
Color Option 5
Blue
Min Op. Temperature (°C)
-40
Illumination
Yes
Color 1 - Wavelength/Color Temp/Coordinates
5000K (Daylight)
Max Current Color (mA)
600
Physical Dimensions (LxWxH or DxH mm)
38.1 x 511.0
IO Link
No
Color Input Control
Multiple (One or more wires/color, enables more colors than input wires)
Color Option 3
Red
Color 5 - Wavelength/Color Temp/Coordinates
470 nm
Modbus RTU
No
Connection
Cable
Animation Option 3
Solid On
Animation Option 5
Solid On
Primary Window Material
Polycarbonate Clear
Pro-Editor Compatible (Discrete)
No
Illuminated Length (LxWxH mm)
423.0
Storage Temp (°C)
-40 to 70
Wireless
No
Feature: Hazardous Area
Yes
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Environmental Rating
IP66; IP67
Multi-Color Device
Single Color On
Feature: Chemical Resistant
Yes
