K30APT2FBXD Banner Pick-to-Light Sensors
Part#:K30APT2FBXD
Alt. Part#:803932
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K30 Series EZ-LIGHT: 1-Color Touch Sensor Gen 2 FDA; Job Light Only; Voltage: 12-30 V dc; Housing: FDA Copolyester; IP67 IP69K; Input: PNP (NO); Colors: Blue; 2 m (6.5 ft) PVC Cable
Product Details
- Weight 176.90088 g
- Country Of Origin US
- Cable Length (m) 0.15
- Color Option 1 Blue
- Max Input Response Time (ms) 300
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Hazardous Area No
- Power Source DC
- Number of Input Pins/Conductors 5
- Animation Option 1 Solid On
- Storage Temp (°C) -40 to 70
- Feature: Chemical Resistant No
- Mounting Thread M22 x 1.5
- Color 1 - Wavelength/Color Temp/Coordinates 470 nm
- Max Output Response Time (ms) 150
- Primary Window Material FDA Polycarbonate Diffused
- Job Light Blue
- Housing Style Base Mount - Dome Window
- Number of Colors / Segments 1
- Max Current Color (mA) 55
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 41.0
- Feature: Washdown Rated Yes
- Power DC
- Connection Cable
- Output Type PNP
- Modbus RTU No
- Feature: Audible No
- Actuation Yes
- Pick-to-Light Function D
- Supply Voltage 12-30 V dc
- Min Op. Temperature (°C) -40
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Technology Standard LED
- Input Type PNP
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Activation Function Capacitive Touch
- Lumens Color 1 1.0
- Environmental Rating IP67; IP69
- Button Operation Momentary
- IO Link No
- Primary Housing Material FDA Copolyester
- Product Size (mm) 30
- Operation Normally Open
- Primary Housing Color FDA Gray
- Wireless No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30APT2FBXD on Powermatic Associates is $141.00. Order now.
About the product

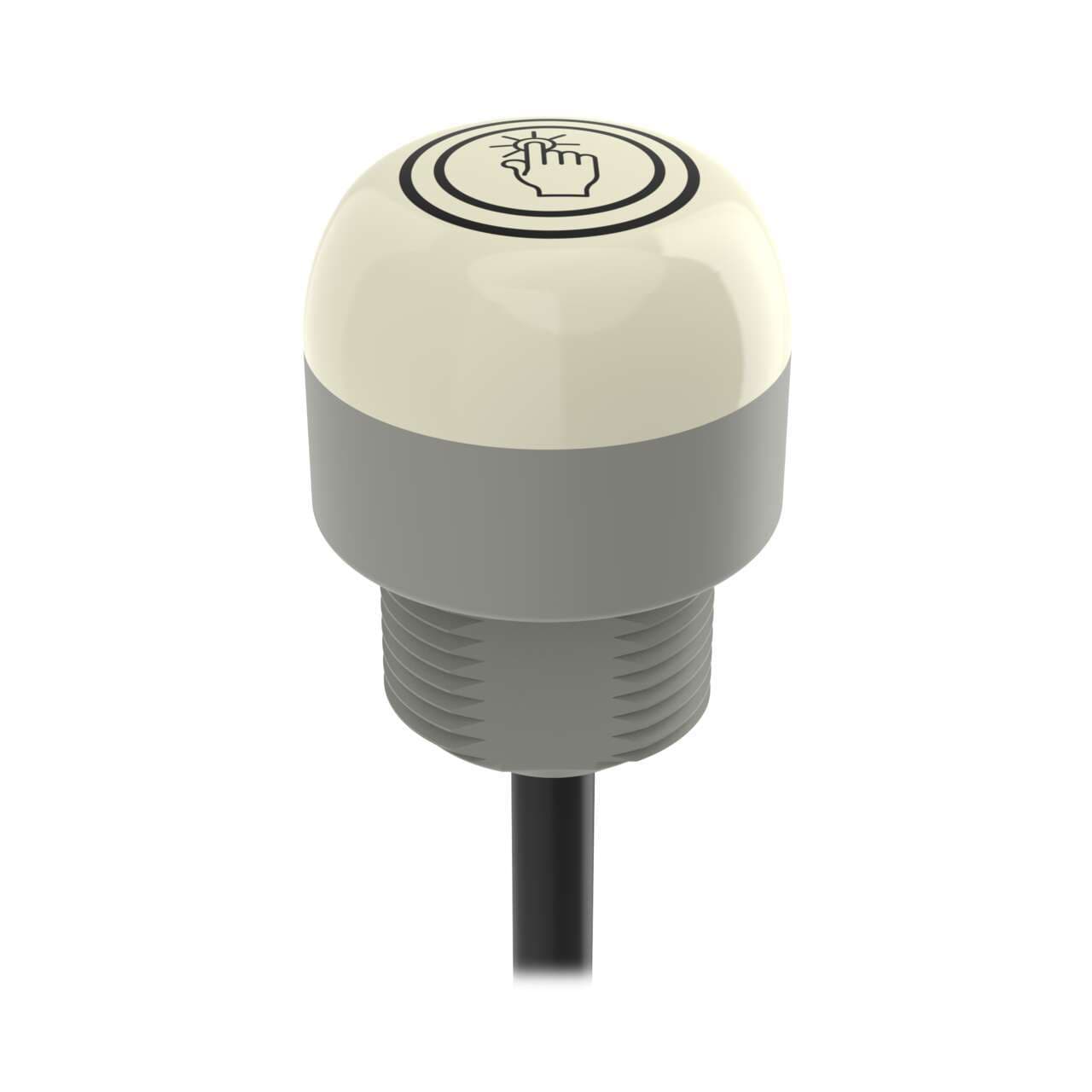

Banner Engineering K30APT2FBXD, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 hygienic features using FDA-grade materials for both its LED illumination and construction. It features a gray housing with a dome-shaped window made from FDA-grade polycarbonate and FDA Copolyester, ensuring durability and compliance with health standards. This device is pre-wired with a 2m / 6.5ft 4-wire cable that terminates with bare end flying leads, facilitating easy installation. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K30APT2FBXD can be mounted on a surface, base, or pole, fitting into a flush 22mm hole with an M22 thread. The dome has a diameter of 30mm / 1-3/16 inches. It is designed to function in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP67 and IP69K, making it suitable for harsh environments. The operating mode includes a momentary job light (B; Blue) that remains ON when the input is active, and touch activates the output only with a Normally Open (NO) touch output. It has a current consumption of 55mA, one digital input (12-30Vdc; PNP) for JOB color control, and one digital output (12-30Vdc; PNP) for touch activation.
