K50ALBTRGHQ Banner Pick-to-Light Sensors
Part#:K50ALBTRGHQ
Alt. Part#:30184
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 2-Color Touch Sensor; Latching Output; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Output: Bipolar (NO); Colors: Red - Not Activated, Green - Activated; 5-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Cable Length (m) 2
- Color Option 1 Red
- Primary Housing Color Black
- Primary Housing Material Polycarbonate
- Product Size (mm) 50
- Lumens Color 2 29.0
- Power Source DC
- Color Technology Standard LED
- Pick-to-Light Function H
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Color Option 2 Green
- Mounting Thread M30 x 1.5
- Housing Style Base Mount - Dome Window
- Activation Function Capacitive Touch
- Actuation Yes
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Max Current Color (mA) 75
- Input Type PNP
- Button Operation Latching
- Operation Normally Open
- Max Output Response Time (ms) 150
- Feature: Washdown Rated Yes
- Modbus RTU No
- Supply Voltage 12-30 V dc
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Number of Colors / Segments 2
- Power DC
- Acknowledge (Sense) Light Green
- Feature: Hazardous Area No
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Storage Temp (°C) -40 to 70
- Feature: Quick Disconnect Yes
- Quick Disconnect Type M12 (Euro)
- Output Type Bipolar (NPN & PNP)
- Primary Window Material Polycarbonate Diffused
- IO Link No
- Wireless No
- I/O Block Compatible Yes
- Feature: Chemical Resistant No
- Number of Input Pins/Conductors 5
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Pro-Editor Compatible (Discrete) No
- Connection Integral QD
- Environmental Rating IP67; IP69
- Min Op. Temperature (°C) -40
- Feature: Audible No
- Job Light Red
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50ALBTRGHQ on Powermatic Associates is $159.00. Order now.
About the product

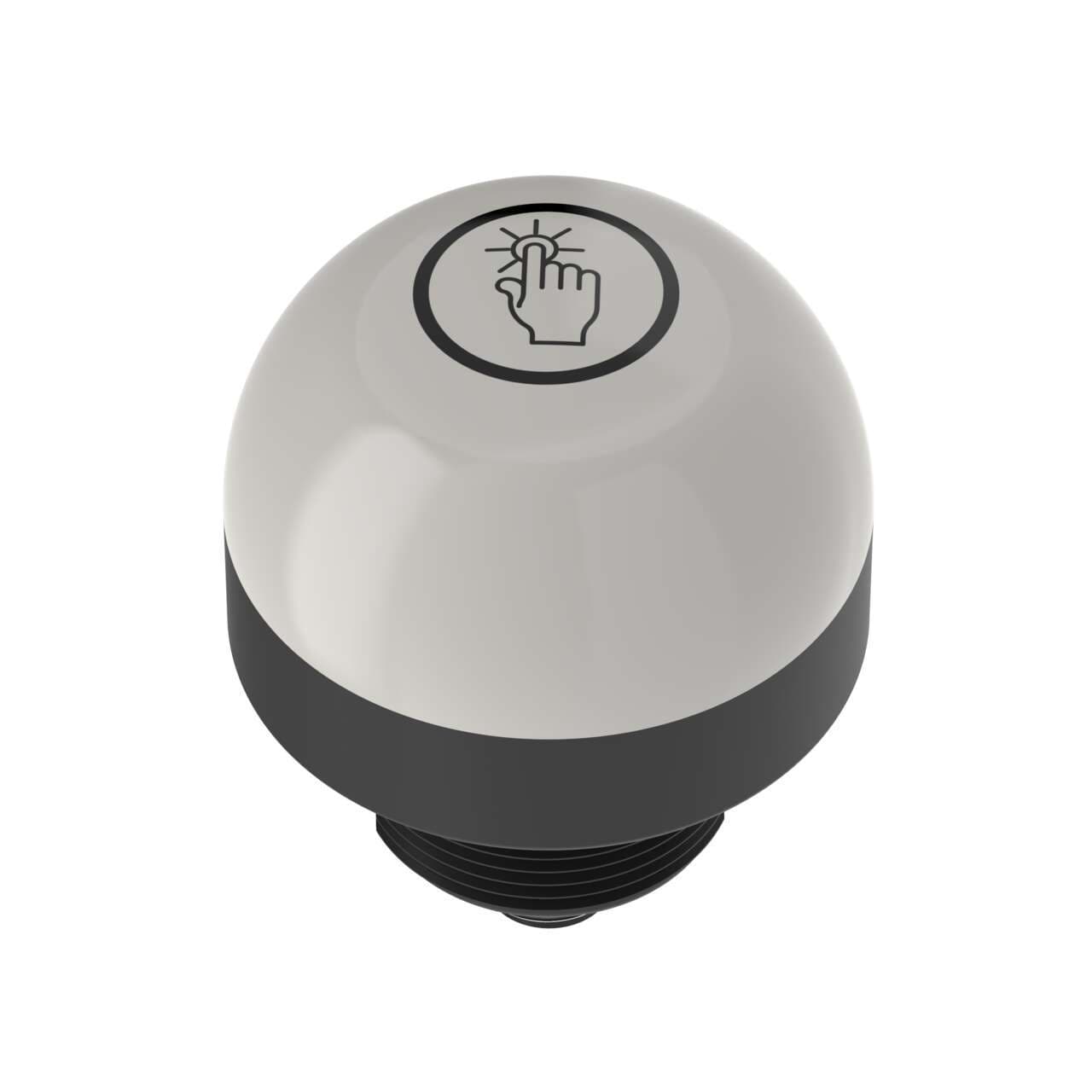

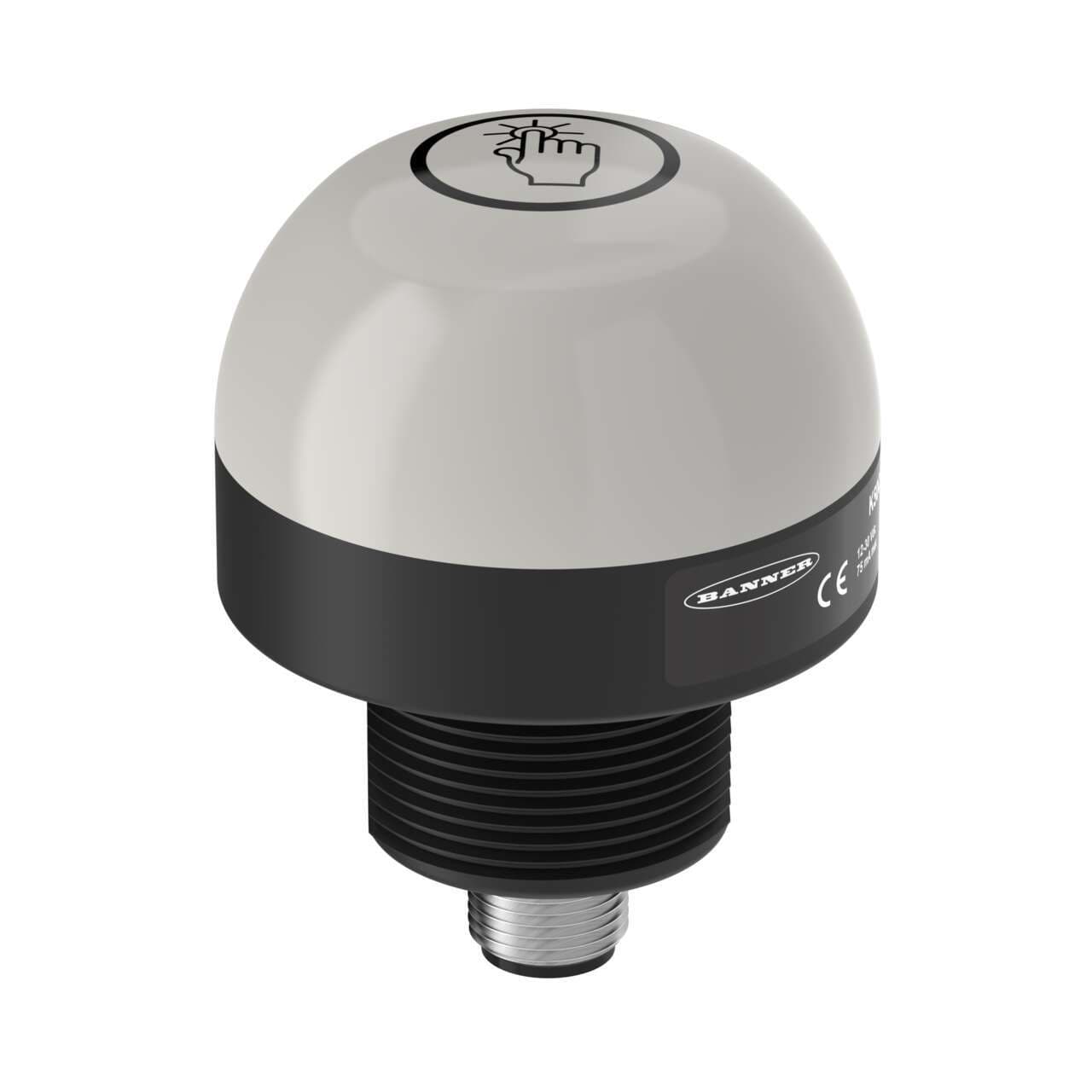

Banner Engineering K50ALBTRGHQ is an illuminated capacitive touch-sensitive button from the EZ-LIGHT series. This part features 2-color LED illumination, displaying red when not activated and green when activated, within a black housing. The dome window and base are made from polycarbonate, ensuring durability. It comes pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector for easy installation. Designed for a supply voltage range of 12Vdc to 30Vdc, with a nominal 24Vdc, it can be mounted on a surface or base pole with an M30 thread. The dome has a diameter of 50mm (2 inches), and it operates efficiently in ambient air temperatures ranging from -40°C to +50°C. This part is rated with a degree of protection of IP67 and IP69K, making it suitable for harsh environments. It operates in a latched normally open (NO) touch output mode, with a current consumption of 75mA. Additionally, it features 2 x digital inputs for color control and 1 x digital output for touch, both supporting 12-30Vdc in PNP or NPN configurations.
