K50APT2GRYF2Q Banner Pick-to-Light Sensors
Part#:K50APT2GRYF2Q
Alt. Part#:96764
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 3-Input-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Red Yellow; 8-pin M12 Integral QD
Product Details
- Weight 181.4368 g
- Country Of Origin MX
- Housing Style Base Mount - Dome Window
- Connection Integral QD
- Number of Input Pins/Conductors 8
- Supply Voltage 12-30 V dc
- Power Source DC
- Lumens Color 1 29.0
- Input Type PNP
- Min Op. Temperature (°C) -40
- IO Link No
- Primary Housing Material Polycarbonate
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Color 3 - Wavelength/Color Temp/Coordinates 591 nm
- Storage Temp (°C) -40 to 70
- Actuation Yes
- Color Technology Standard LED
- Operation Normally Open
- Output Type PNP
- Environmental Rating IP67; IP69
- Max Op. Temperature (°C) 50
- Feature: Hazardous Area No
- Cable Length (m) 2
- Color Option 1 Green
- Lumens Color 2 13.0
- Max Current Color (mA) 75
- Primary Window Material Polycarbonate Diffused
- Multi-Color Device Single Color On
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Colors / Segments 3
- Color Option 2 Red
- Max Output Response Time (ms) 50
- Feature: Audible No
- Power DC
- Product Size (mm) 50
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Washdown Rated Yes
- Mounting Thread M30 x 1.5
- Quick Disconnect Type M12 (Euro)
- Lumens Color 3 24.0
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Button Operation Momentary
- Activation Function Capacitive Touch
- Animation Option 1 Solid On
- Color Option 3 Yellow
- Pick-to-Light Function F2
- Primary Housing Color Black
- Feature: Chemical Resistant No
- Wireless No
- Modbus RTU No
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50APT2GRYF2Q on Powermatic Associates is $180.00. Order now.
About the product

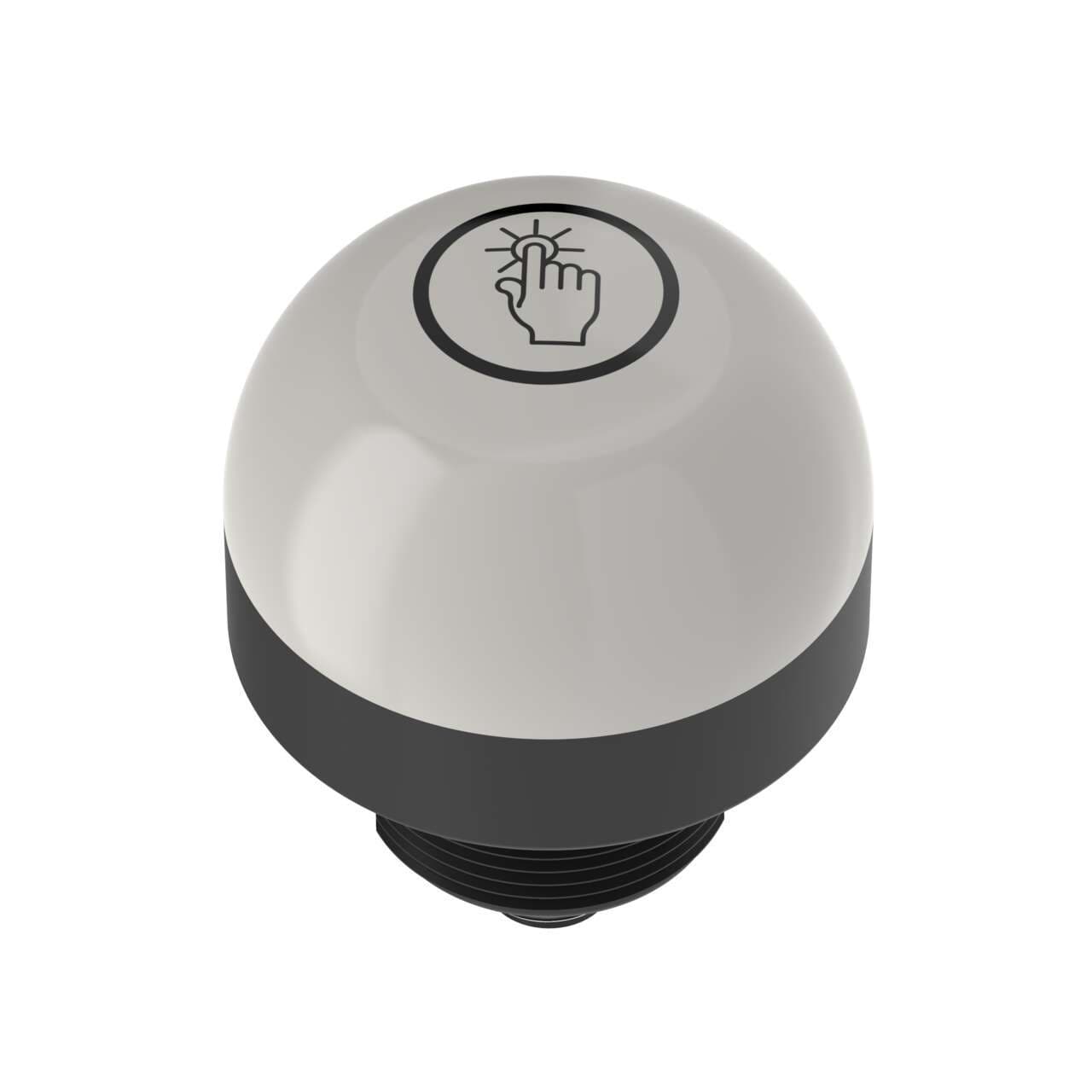

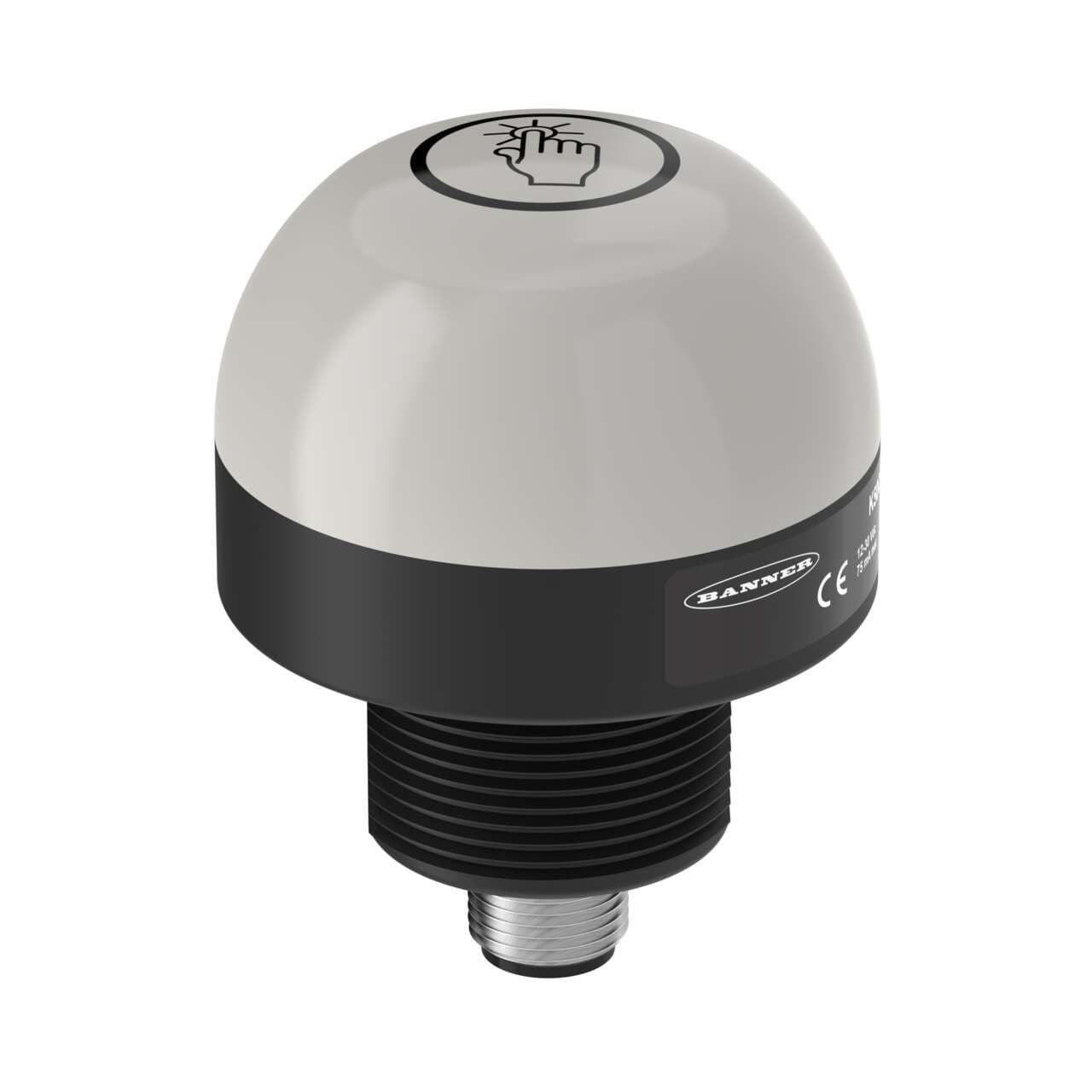

Banner Engineering K50APT2GRYF2Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination in a black housing. It features a dome window shape with both the window and base made from polycarbonate (PC), ensuring durability. This part is pre-equipped with an 8-pin M12 Euro-style QD connector for connectivity and supports a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. It offers versatile mounting options including surface or base pole with an M30 thread and has a 50mm / 2" dome diameter. The K50APT2GRYF2Q operates efficiently in ambient air temperatures ranging from -40°C to +50°C and boasts a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. Its operating mode includes a momentary job light (G/R/Y; Green or Red or Yellow) that is ON when one of the 3 job inputs is active, and touch activates the output only with a Normally Open (NO) touch output. The device has a current consumption of 75mA, includes 3 x digital inputs (12-30Vdc; PNP) for JOB color control, and 1 x digital output (12-30Vdc; PNP) for touch functionality.
