K50BLGRYPQ Banner Pick-to-Light Sensors
Part#:K50BLGRYPQ
Alt. Part#:802965
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Beacon EZ-LIGHT: 3-Color Perimeter View; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Input: PNP; Colors: Green Red Yellow; 5-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Number of Colors / Segments 3
- Color Option 3 Yellow
- Max Input Response Time (ms) 10
- Indication Intensity High Brightness & Daylight Visible
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 85
- NEMA Type and UL Type Rating NEMA 4X, 13
- Modbus RTU No
- Indication Yes
- Animation Option 1 Solid On
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 60.0
- Feature: Washdown Rated Yes
- Wireless No
- Primary Housing Material Polycarbonate
- Color Option 1 Green
- Input Type PNP
- Primary Window Material Polycarbonate Clear
- IO Link No
- Mounting Thread M30 x 1.5
- Quick Disconnect Type M12 (Euro)
- Supply Voltage 12-30 V dc
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Power DC
- Color Option 2 Red
- Max Op. Temperature (°C) 50
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Housing Style Base Mount - Flat Window
- Color Technology Standard LED
- Number of Input Pins/Conductors 5
- Cable Length (m) 0.15
- Product Size (mm) 50
- Environmental Rating IP67; IP69
- Feature: Audible No
- Power Source DC
- Connection Integral QD
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Primary Housing Color Black
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50BLGRYPQ on Powermatic Associates is $142.00. Order now.
About the product

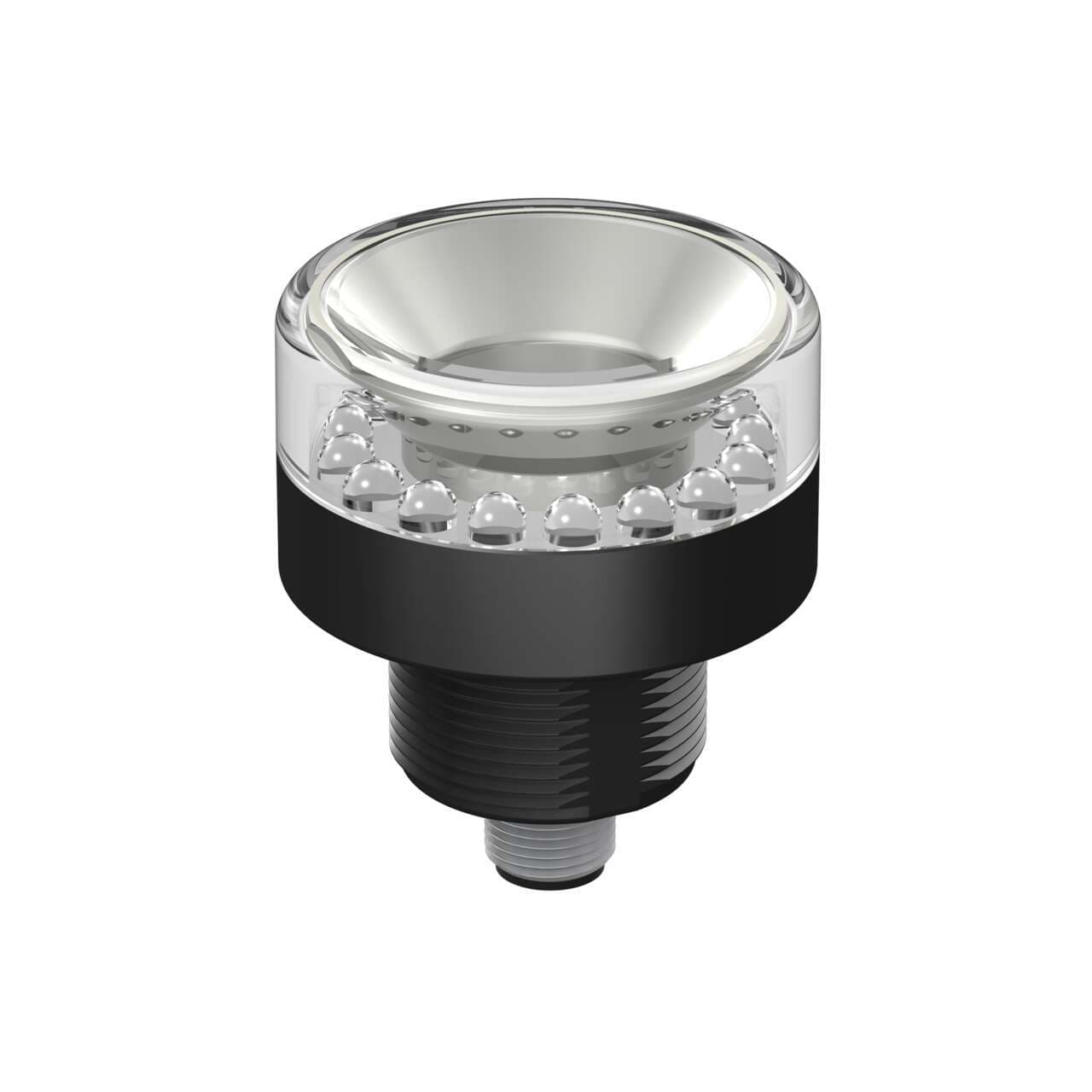

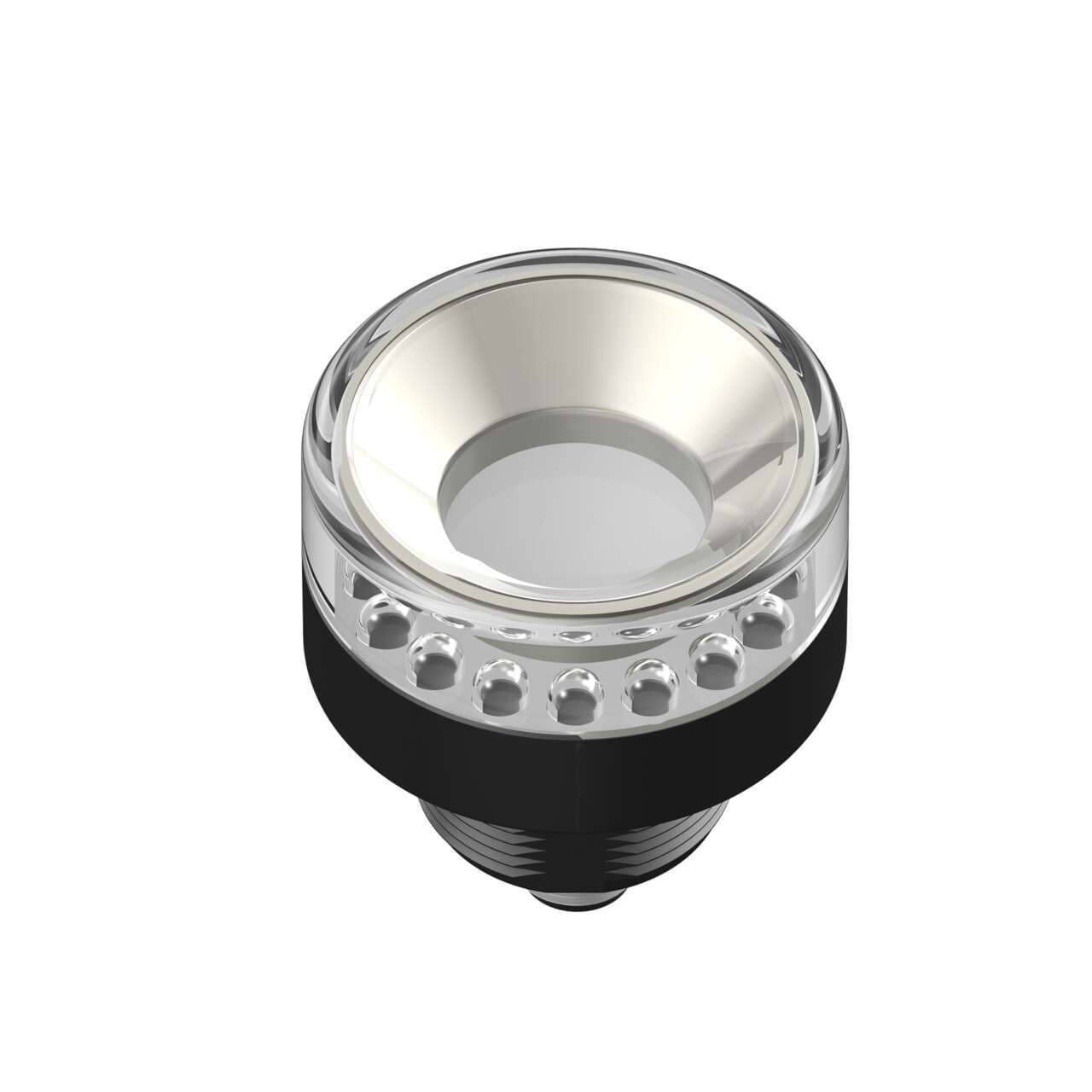

Banner Engineering K50BLGRYPQ is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series. This beacon features a perimeter view indicator with a single-tier design and a 3-color G/R/Y color pattern LED illumination. It has a black housing with a round flat window made from clear polycarbonate (PC), and the base is also constructed from polycarbonate (PC). The beacon is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style QD connector. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc being nominal. The K50BLGRYPQ can be mounted via surface/base pole M30 / 1/2" NPSM thread, and it has a diameter of 50mm / 2" cap. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C. This beacon offers a degree of protection rated at IP67, IP69K, NEMA 4X, and NEMA 13. It has a current consumption of 85mA and includes 3 x digital inputs (12-30Vdc; PNP) for color control.
