K50BCLGRXPQ Banner Pick-to-Light Sensors

Name: K50BCLGRXPQ
Brand: Banner
Price: 141 USD
Availability: BackOrder

Part#:K50BCLGRXPQ

Alt. Part#:18346

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 Beacon EZ-LIGHT: 2-Color Perimeter & Top View; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Input: PNP; Colors: Green Red; 5-pin M12 Integral QD

Product Details

Weight
136.0776 g
Country Of Origin
MX
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Number of Input Pins/Conductors
4
Min Op. Temperature (°C)
-40
Indication Intensity
High Brightness & Daylight Visible
Indication
Yes
Connection
Integral QD
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
IO Link
No
Mounting Thread
M30 x 1.5
Quick Disconnect Type
M12 (Euro)
Environmental Rating
IP67; IP69
Feature: Hazardous Area
No
Product Size (mm)
50
Supply Voltage
12-30 V dc
NEMA Type and UL Type Rating
NEMA 4X, 13
Modbus RTU
No
Housing Style
Base Mount - Flat Window
Max Current Color (mA)
95

Primary Housing Color

Black

Multi-Color Device

Single Color On

Power

Primary Housing Material

Polycarbonate

Color Technology

Standard LED

Color Option 2

Red

Input Type

PNP

Physical Dimensions (LxWxH or DxH mm)

50.0 x 60.0

Primary Window Material

Polycarbonate Clear

Feature: Audible

Pro-Editor Compatible (Discrete)

Power Source

Animation Option 1

Solid On

Max Input Response Time (ms)

Feature: Washdown Rated

Yes

Wireless

Number of Colors / Segments

Color Option 1

Green

Max Op. Temperature (°C)

Feature: Chemical Resistant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50BCLGRXPQ on Powermatic Associates is $141.00. Order now.

About the product

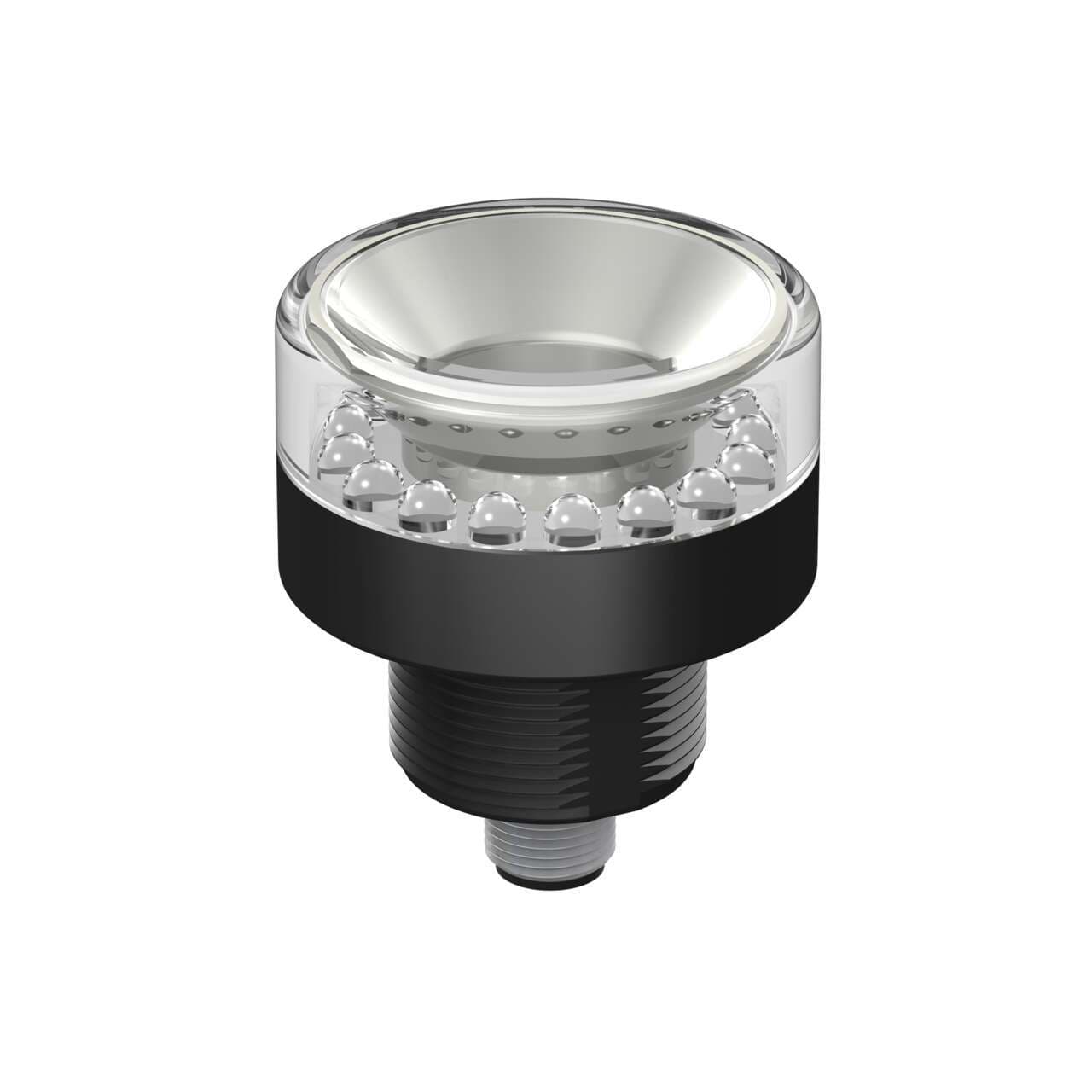

Banner Engineering K50BCLGRXPQ is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series. This beacon features perimeter and top view lighting with a 1-tier, 2-color G/R color pattern LED illumination. It has a black housing with a round flat window made from clear polycarbonate (PC), and the base is also constructed from polycarbonate (PC). It is pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads for connectivity. The supply voltage required for operation is 12Vdc-30Vdc, with 24Vdc being nominal. For mounting, it offers surface/base pole options with M30 / 1/2" NPSM thread compatibility. The beacon has a 50mm / 2" cap diameter and can operate in ambient air temperatures ranging from -40°C to +50°C. It is designed with a degree of protection rated at IP67, IP69K, NEMA 4X, and NEMA 13, ensuring durability in various environments. The current consumption is 95mA, and it includes 2 x digital inputs (12-30Vdc; PNP) for color control.
