K50BLR1XYXP Banner Pick-to-Light Sensors

Name: K50BLR1XYXP
Brand: Banner
Price: 148 USD
Availability: BackOrder

Part#:K50BLR1XYXP

Alt. Part#:19785

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 Beacon EZ-LIGHT: 1-Color Rotating; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Input: PNP; Colors: Yellow; 2 m (6.5 ft) Integral Cable

Product Details

Weight
158.7572 g
Country Of Origin
MX
Mounting Thread
M30 x 1.5
Color Option 1
Yellow
Primary Housing Color
Black
Modbus RTU
No
Primary Housing Material
Polycarbonate
Input Type
PNP
Physical Dimensions (LxWxH or DxH mm)
50.0 x 49.0
Feature: Quick Disconnect
No
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Number of Input Pins/Conductors
5
Supply Voltage
12-30 V dc
Max Input Response Time (ms)
0.25
Power
DC
IO Link
No
Feature: Chemical Resistant
No
Product Size (mm)
50
Power Source
DC
Animation Option 1
Multiple

Wire Selectable Function

Rotating

Max Op. Temperature (°C)

Feature: Hazardous Area

Feature: Audible

Pro-Editor Compatible (Discrete)

Indication

Yes

Connection

Cable

NEMA Type and UL Type Rating

NEMA 4X, 13

Primary Window Material

Polycarbonate Clear

Wireless

Min Op. Temperature (°C)

-40

Indication Intensity

High Brightness & Daylight Visible

Housing Style

Base Mount - Flat Window

Color Technology

Standard LED

Environmental Rating

IP67; IP69

Multi-Color Device

Single Color On

Number of Colors / Segments

Max Current Color (mA)

140

Max Op. Relative Humidity Non-Condensing (%)

90% @ 50°C

Feature: Washdown Rated

Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50BLR1XYXP on Powermatic Associates is $148.00. Order now.

About the product

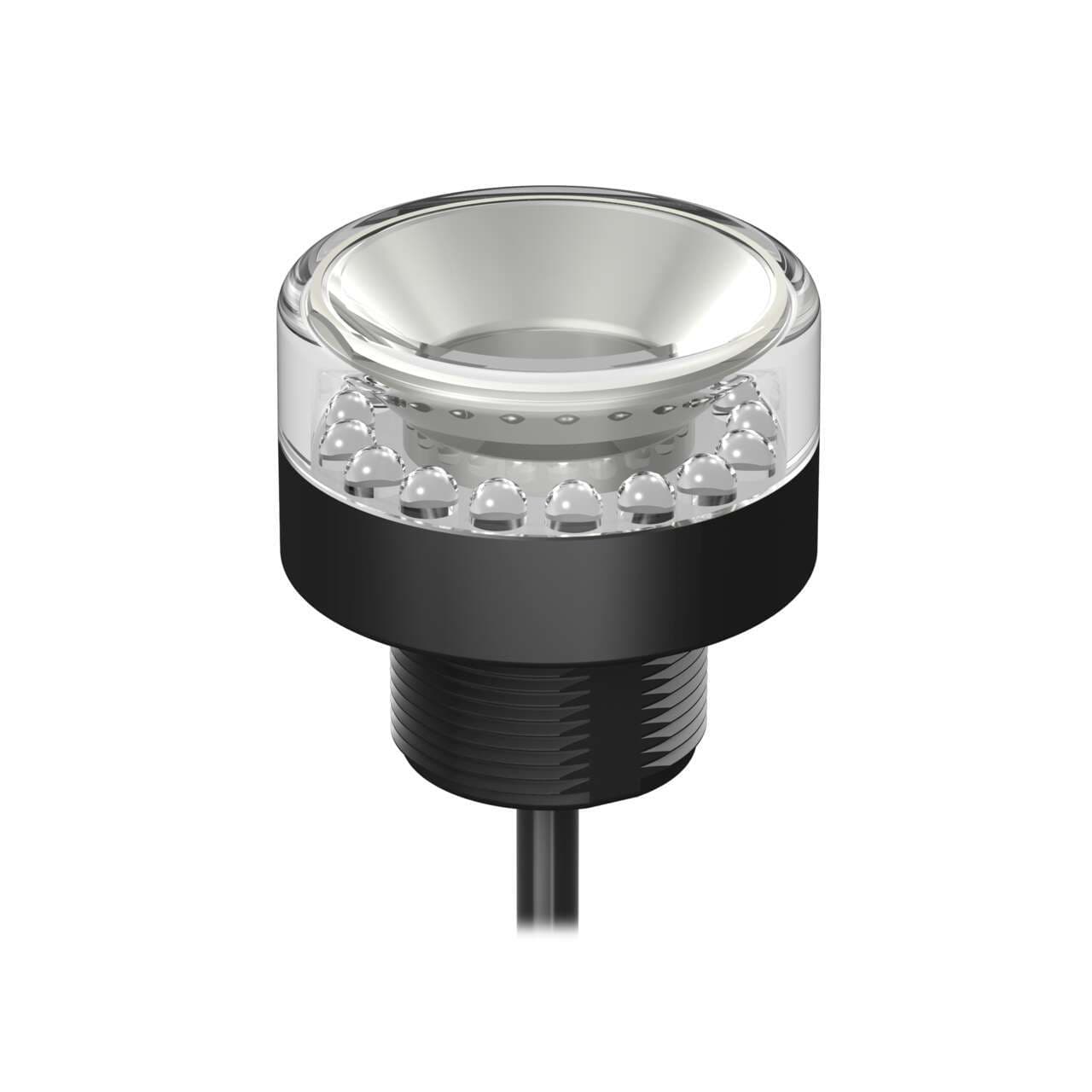

Banner Engineering K50BLR1XYXP is a single-color high-intensity industrial LED light rotating beacon, part of the EZ-LIGHT Beacons series. This beacon features a perimeter view indicator with a 1-tier, 1-color white LED illumination housed in a black casing. The round flat window is made from clear polycarbonate (PC), and the base is also constructed from polycarbonate (PC), ensuring durability. It is pre-equipped with a 5-pin M12 Euro-style QD connector for easy connection. The beacon operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal, and can be mounted via surface/base pole M30 / 1/2" NPSM thread. With a cap diameter of 50mm / 2 inches, it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. This beacon is rated for IP67, IP69K, NEMA 4X, and NEMA 13, indicating a high degree of protection against ingress. It has a current consumption of 140mA and includes 1 x digital input (12-30Vdc; PNP) for color control.
