K50BCLXBXP Banner Pick-to-Light Sensors

Name: K50BCLXBXP
Brand: Banner
Price: 141 USD
Availability: BackOrder

Part#:K50BCLXBXP

Alt. Part#:18343

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 Beacon EZ-LIGHT: 1-Color Perimeter & Top View; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Input: PNP; Colors: Blue; 2 m (6.5 ft) Integral Cable

Product Details

Weight
249.4756 g
Country Of Origin
US
Power
DC
Color Option 1
Blue
Physical Dimensions (LxWxH or DxH mm)
50.0 x 49.0
Feature: Audible
No
Cable Length (m)
0.5
Animation Option 1
Solid On
NEMA Type and UL Type Rating
NEMA 4X, 13
Feature: Chemical Resistant
No
Power Source
DC
Product Size (mm)
50
Max Input Response Time (ms)
7
Feature: Washdown Rated
Yes
Modbus RTU
No
Indication
Yes
Connection
Cable
Max Op. Temperature (°C)
50
Multi-Color Device
Single Color On
Housing Style
Base Mount - Flat Window

Color Technology

Standard LED

Environmental Rating

IP67; IP69

Indication Intensity

High Brightness & Daylight Visible

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Max Current Color (mA)

160

Max Op. Relative Humidity Non-Condensing (%)

90% @ 50°C

IO Link

Primary Housing Material

Polycarbonate

Number of Input Pins/Conductors

Min Op. Temperature (°C)

-40

Feature: Quick Disconnect

Mounting Thread

M30 x 1.5

Input Type

PNP

Primary Housing Color

Black

Pro-Editor Compatible (Discrete)

Number of Colors / Segments

Supply Voltage

12-30 V dc

Primary Window Material

Polycarbonate Clear

Wireless

Feature: Hazardous Area

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50BCLXBXP on Powermatic Associates is $141.00. Order now.

About the product

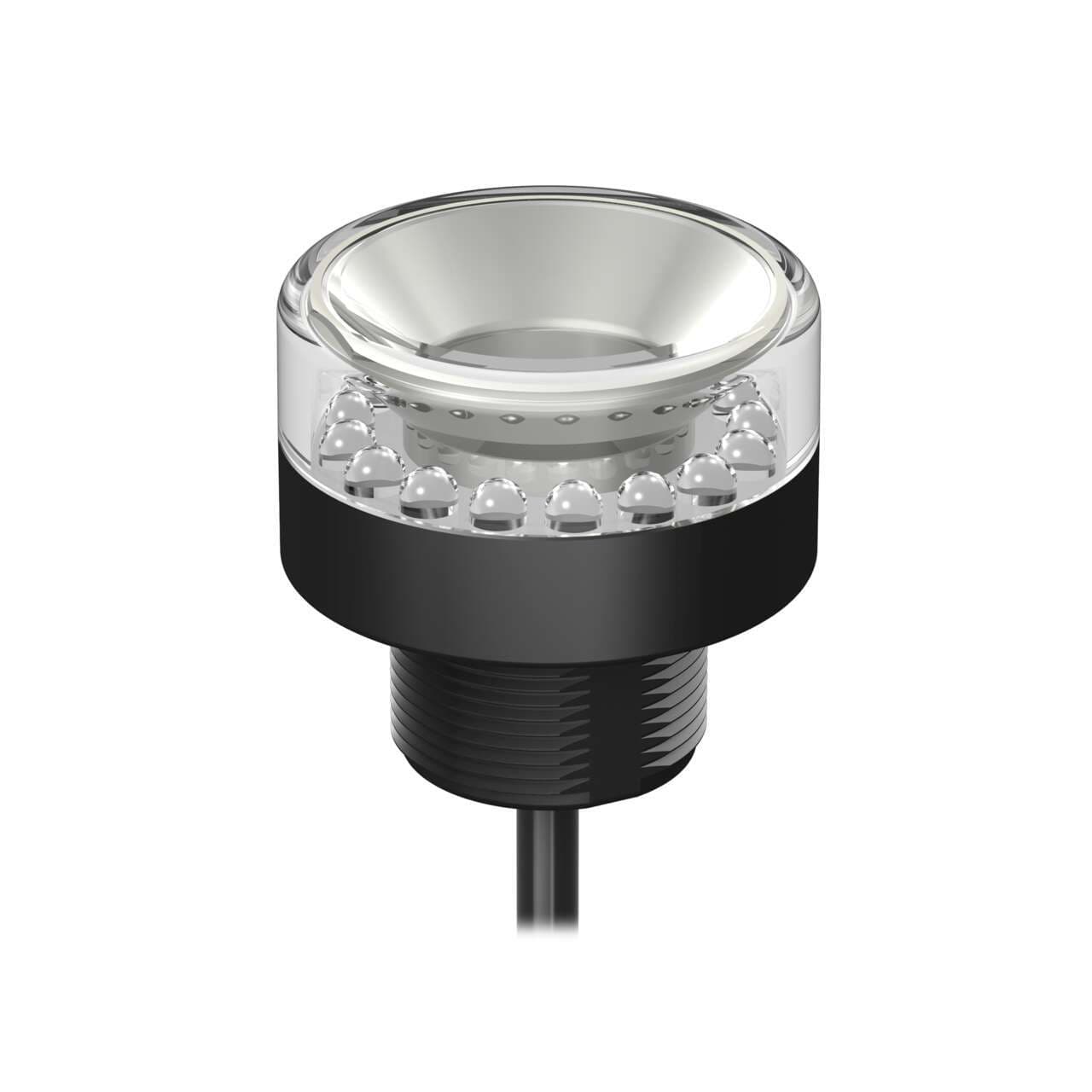

Banner Engineering K50BCLXBXP is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series. This beacon features a design with flash input perimeter and top view 1-tier 1-color Blue LED illumination, housed in a black casing. The round flat window is made of clear polycarbonate, and the base is constructed from polycarbonate as well. It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The K50BCLXBXP operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal. It offers versatile mounting options including surface, base pole M30, and 1/2" NPSM thread, accommodating a 50mm / 2" cap diameter. Designed to operate in ambient air temperatures ranging from -40 to +50°C, it boasts a degree of protection rated at IP67 and IP69K. Additionally, it includes 1 x digital input (12-30Vdc; PNP) for color control.
