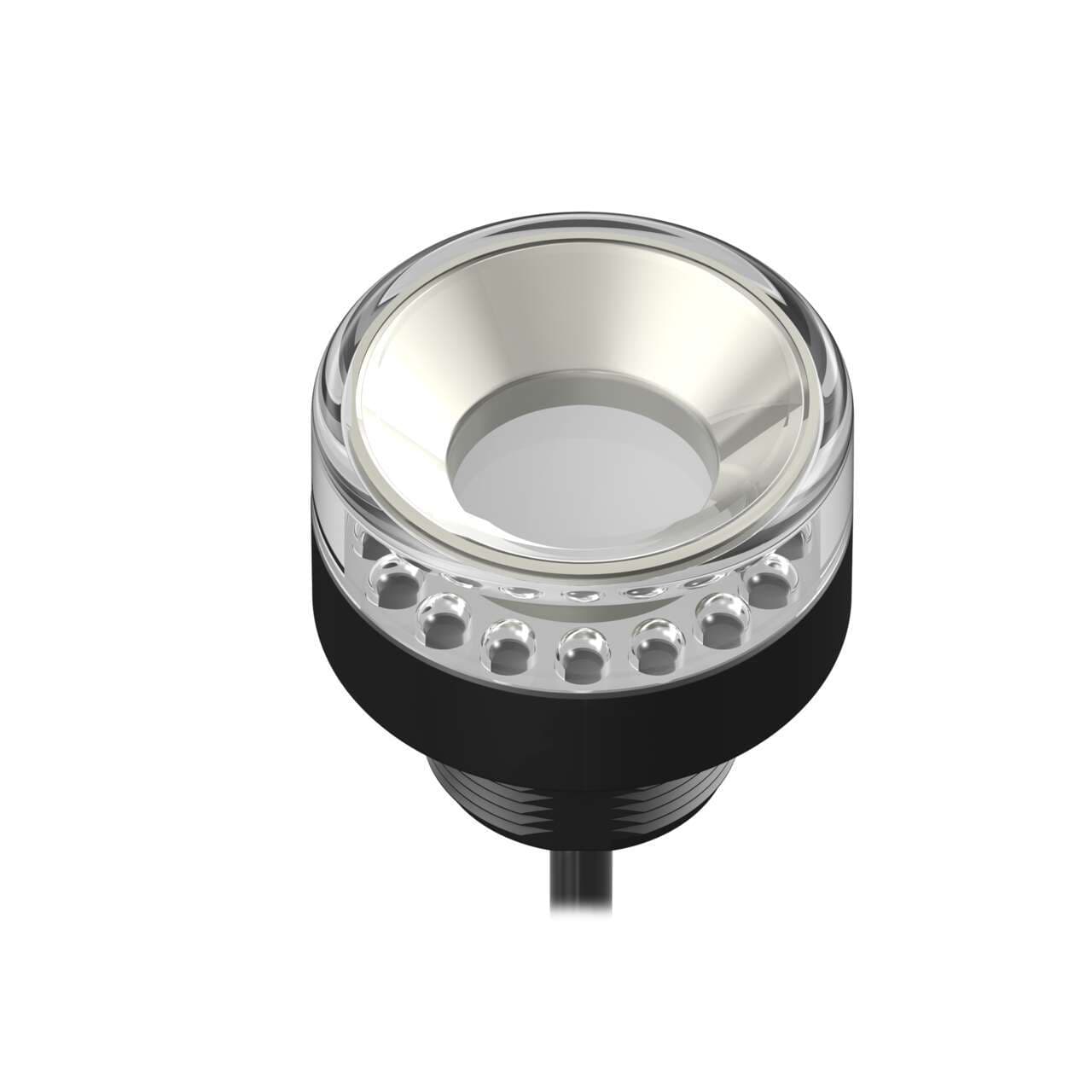

K50BCLS1XYXP Banner Pick-to-Light Sensors

Name: K50BCLS1XYXP
Brand: Banner
Price: 161 USD
Availability: BackOrder

Part#:K50BCLS1XYXP

Alt. Part#:19793

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 Beacon EZ-LIGHT: 1-Color Double Strobe; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Input: PNP; Colors: Yellow; 2 m (6.5 ft) Integral Cable

Product Details

Weight
204.1164 g
Country Of Origin
MX
Housing Style
Base Mount - Flat Window
Wire Selectable Function
Flashing
Feature: Hazardous Area
No
Max Op. Temperature (°C)
50
Pro-Editor Compatible (Discrete)
No
Power
DC
Product Size (mm)
50
Max Input Response Time (ms)
0.25
Primary Window Material
Polycarbonate Clear
Modbus RTU
No
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Max Current Color (mA)
160
NEMA Type and UL Type Rating
NEMA 4X, 13
Indication Intensity
High Brightness & Daylight Visible
Color Technology
Standard LED
Number of Input Pins/Conductors
5
Animation Option 1
Multiple
Multi-Color Device
Single Color On

Mounting Thread

M30 x 1.5

Connection

Cable

Max Op. Relative Humidity Non-Condensing (%)

90% @ 50°C

Feature: Chemical Resistant

Primary Housing Material

Polycarbonate

Physical Dimensions (LxWxH or DxH mm)

50.0 x 49.0

Primary Housing Color

Black

Feature: Quick Disconnect

Number of Colors / Segments

Color Option 1

Yellow

Environmental Rating

IP67; IP69

Feature: Audible

Power Source

Input Type

PNP

Min Op. Temperature (°C)

-40

IO Link

Indication

Yes

Supply Voltage

12-30 V dc

Feature: Washdown Rated

Yes

Wireless

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50BCLS1XYXP on Powermatic Associates is $161.00. Order now.

About the product

Banner Engineering K50BCLS1XYXP is a single-color high-intensity industrial LED light strobing beacon, part of the EZ-LIGHT Beacons series. This beacon features perimeter and top view lighting with a 1-tier, 1-color white LED illumination housed in a black casing. The round flat window is made from clear polycarbonate (PC), as is the base, ensuring durability. It comes pre-equipped with a 5-pin M12 Euro-style QD connector for easy connection. Designed for a wide range of supply voltages, it operates on 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The beacon offers versatile mounting options, including surface, base pole M30, and 1/2" NPSM thread, with a cap diameter of 50mm (2 inches). It is built to perform in a wide range of ambient air temperatures, from -40°C to +50°C. The K50BCLS1XYXP is rated for IP67, IP69K, NEMA 4X, and NEMA 13, indicating a high degree of protection against dust, water, and corrosion. It has a current consumption of 160mA and includes 1 x digital input (12-30Vdc; PNP) for color control.

K50BCLS1XYXP Related Documents

159966.pdf
