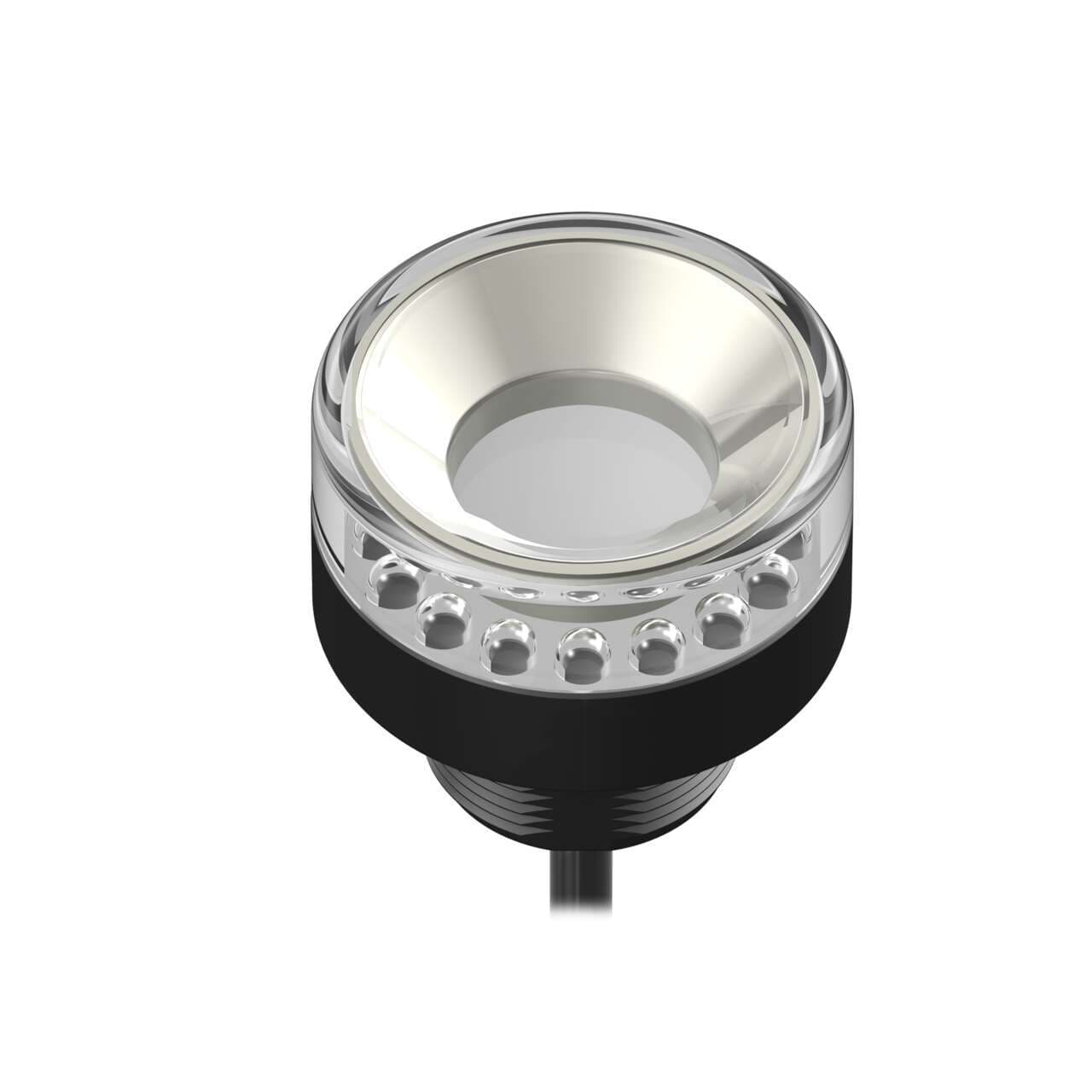

K50BCLYA120 Banner Pick-to-Light Sensors

Product Details

• Weight
  226.796 g
• Country Of Origin
  MX
• Power Source
  DC or AC
• Number of Input Pins/Conductors
  2
• Min Op. Temperature (°C)
  -40
• Modbus RTU
  No
• Primary Housing Material
  Polycarbonate
• Animation Option 1
  Solid On
• NEMA Type and UL Type Rating
  NEMA 4X, 13
• Feature: Washdown Rated
  Yes
• Housing Style
  Base Mount - Flat Window
• Color Technology
  Standard LED
• Physical Dimensions (LxWxH or DxH mm)
  50.0 x 49.0
• Feature: Audible
  No
• Wireless
  No
• Mounting Thread
  M30 x 1.5
• Connection
  Cable
• Environmental Rating
  IP67; IP69
• Multi-Color Device
  Single Color On
• Color Input Control
  Individual (One wire/color, same number of colors as input wires)
Supply Voltage
85-130 V ac/75-120 V dc
Max Op. Temperature (°C)
50
Feature: Hazardous Area
No
Number of Colors / Segments
1
Input Type
AC
Primary Window Material
Polycarbonate Clear
Cable Length (m)
2
Color Option 1
Yellow
Primary Housing Color
Black
IO Link
No
Indication Intensity
High Brightness & Daylight Visible
Indication
Yes
Product Size (mm)
50
Max Input Response Time (ms)
0.5
Feature: Chemical Resistant
No
Pro-Editor Compatible (Discrete)
No
Power
DC or AC
Max Current Color (mA)
60
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Feature: Quick Disconnect
No
