K50BCLBXXPQ Banner Pick-to-Light Sensors

Name: K50BCLBXXPQ
Brand: Banner
Price: 141 USD
Availability: BackOrder

Part#:K50BCLBXXPQ

Alt. Part#:93863

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 Beacon EZ-LIGHT: 1-Color Perimeter & Top View; I/O compatible; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Input: PNP; Colors: Blue; 4-pin M12 Integral QD

Product Details

Weight
136.0776 g
Country Of Origin
MX
Housing Style
Base Mount - Flat Window
Connection
Integral QD
Physical Dimensions (LxWxH or DxH mm)
50.0 x 60.0
Feature: Washdown Rated
Yes
Mounting Thread
M30 x 1.5
Color Option 1
Blue
Max Input Response Time (ms)
7
Primary Window Material
Polycarbonate Clear
Wireless
No
Color Technology
Standard LED
Color Input Control
Individual (One wire/color, same number of colors as input wires)
I/O Block Compatible
Yes
Feature: Hazardous Area
No
Number of Colors / Segments
1
Animation Option 1
Solid On
Environmental Rating
IP67; IP69
Feature: Audible
No
Indication
Yes

Max Current Color (mA)

160

Min Op. Temperature (°C)

-40

Feature: Quick Disconnect

Yes

Power

Quick Disconnect Type

M12 (Euro)

NEMA Type and UL Type Rating

NEMA 4X, 13

Feature: Chemical Resistant

Product Size (mm)

Number of Input Pins/Conductors

Max Op. Relative Humidity Non-Condensing (%)

90% @ 50°C

Indication Intensity

High Brightness & Daylight Visible

Primary Housing Material

Polycarbonate

Input Type

PNP

Max Op. Temperature (°C)

Multi-Color Device

Single Color On

Power Source

Supply Voltage

12-30 V dc

Primary Housing Color

Black

IO Link

Pro-Editor Compatible (Discrete)

Modbus RTU

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50BCLBXXPQ on Powermatic Associates is $141.00. Order now.

About the product

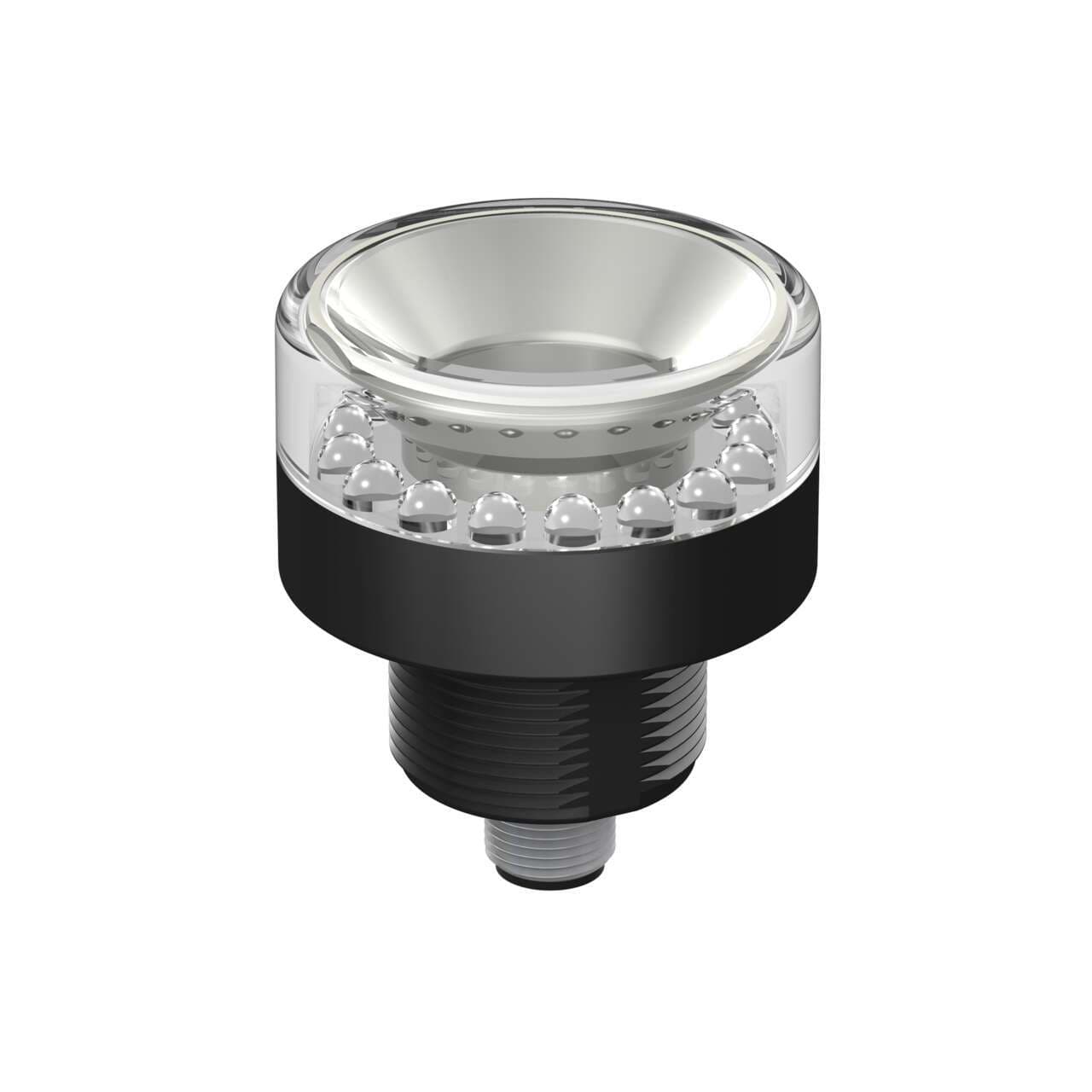

Banner Engineering K50BCLBXXPQ is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series, designed for both perimeter and top view lighting. This beacon features a 1-tier, 1-color blue LED illumination housed in a black casing. The round flat window is made of clear polycarbonate (PC), with the base also constructed from polycarbonate (PC) and a polyurethane (PUR) cable sheath. It comes pre-wired with a 2ft / 24" / 60cm PUR pigtail terminated with a 4-pin M12 Euro-style quick disconnect (QD) connector. The beacon operates on a supply voltage of 12Vdc-30Vdc (24Vdc nominal) and can be mounted via surface/base pole M30 / 1/2" NPSM thread. With a cap diameter of 50mm / 2", it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. This beacon is rated for IP67, IP69K, NEMA 4X, and NEMA 13, ensuring protection against various environmental conditions. It has a current consumption of 160mA and includes 1 x digital input (12-30Vdc; PNP) for color control.
