K50FLRGWPQ Banner Pick-to-Light Sensors

K50FLRGWPQ on Powermatic Associates
Banner

Part#:K50FLRGWPQ

Alt. Part#:97410

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 Series EZ-LIGHT: 3-Color General Purpose Flat Pack Indicator; Voltage: 18-30 V dc; Environmental Rating: IP67; IP69K; Input: PNP; Colors: Red Green White; 4-pin M12 Integral QD

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    MX
  • Feature: Quick Disconnect
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Wireless
    No
  • Multi-Color Device
    Single Color On
  • Primary Housing Color
    Black
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 76.0 x 44.6
  • Feature: Hazardous Area
    No
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Polycarbonate Diffused
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Environmental Rating
    IP67; IP69
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Number of Input Pins/Conductors
    4
  • Max Input Response Time (ms)
    1
  • Input Type
    PNP
  • Supply Voltage
    18-30 V dc
  • Color Option 3
    White
  • Max Current Color (mA)
    40
  • Color Option 2
    Green
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Animation Option 1
    Solid On
  • Color Option 1
    Red
  • Color Technology
    Standard LED
  • Power
    DC
  • Housing Style
    Flat Mount - Dome Window
  • Mounting Thread
    No Thread
  • Number of Colors / Segments
    3
  • Product Size (mm)
    50
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Indication
    Yes
  • Primary Housing Material
    Polycarbonate
  • Power Source
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50FLRGWPQ on Powermatic Associates is $112.00. Order now.

About the product

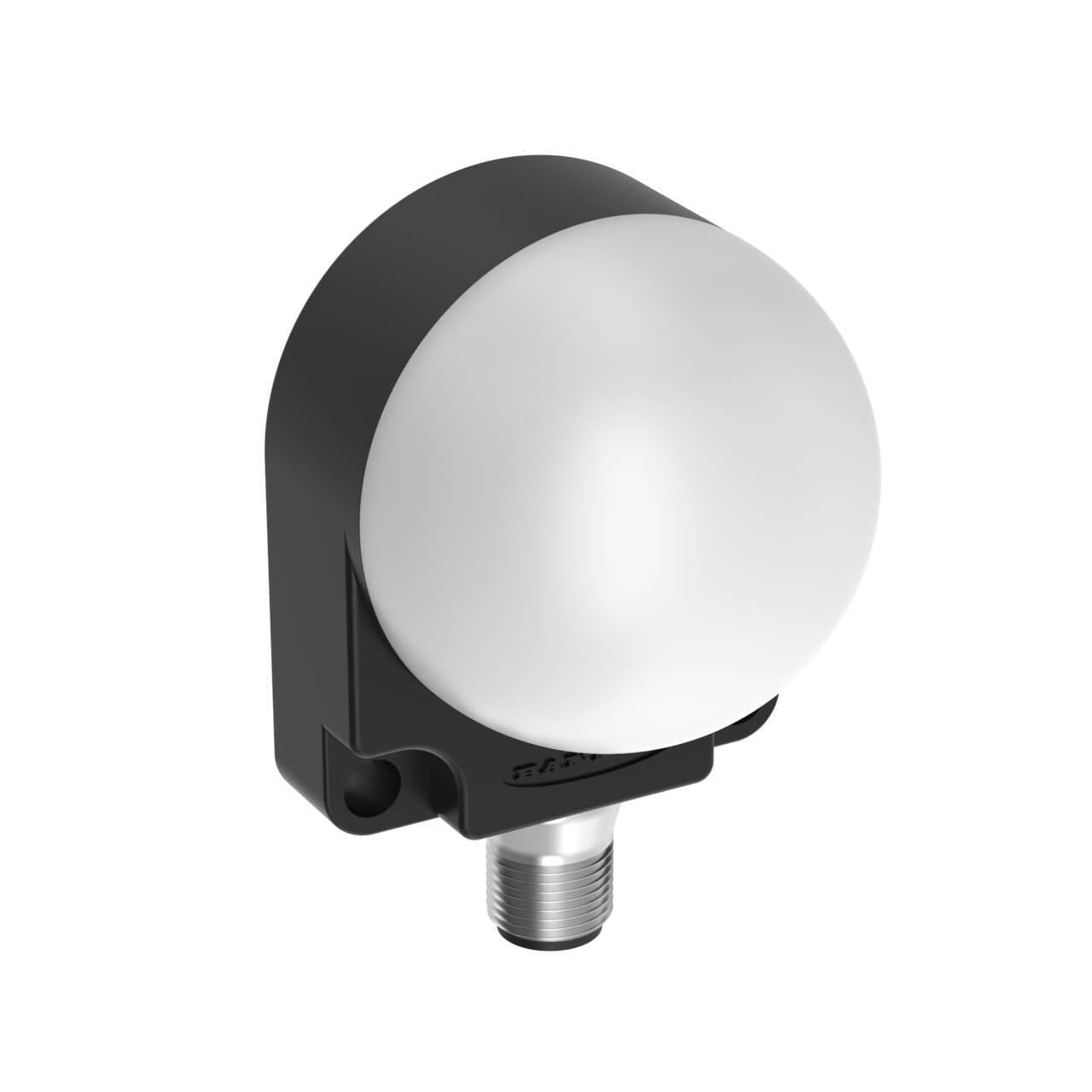

Banner Engineering K50FLRGWPQ is a pilot light from the EZ-LIGHT Flat-mount series designed for surface or wall mounting. This part features a flat-pack LED pilot light indicator with a 3-color R/G/W color pattern LED illumination housed in a black polycarbonate base with a dome window on a flat-pack body. The window material is also polycarbonate (PC), ensuring a diffused light output. It is pre-wired with a 2m / 6.5ft cable terminated with bare end flying leads for connection, supporting a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. The K50FLRGWPQ has a diameter of 50mm / 2" for the dome and operates within an ambient air temperature range of -40°C to +50°C. It offers a degree of protection rated at IP67 and IP69K, with a current consumption of 40mA. Additionally, it includes 3 x digital inputs (18-30Vdc; PNP) for color control.
