Powermatic Associates Logo

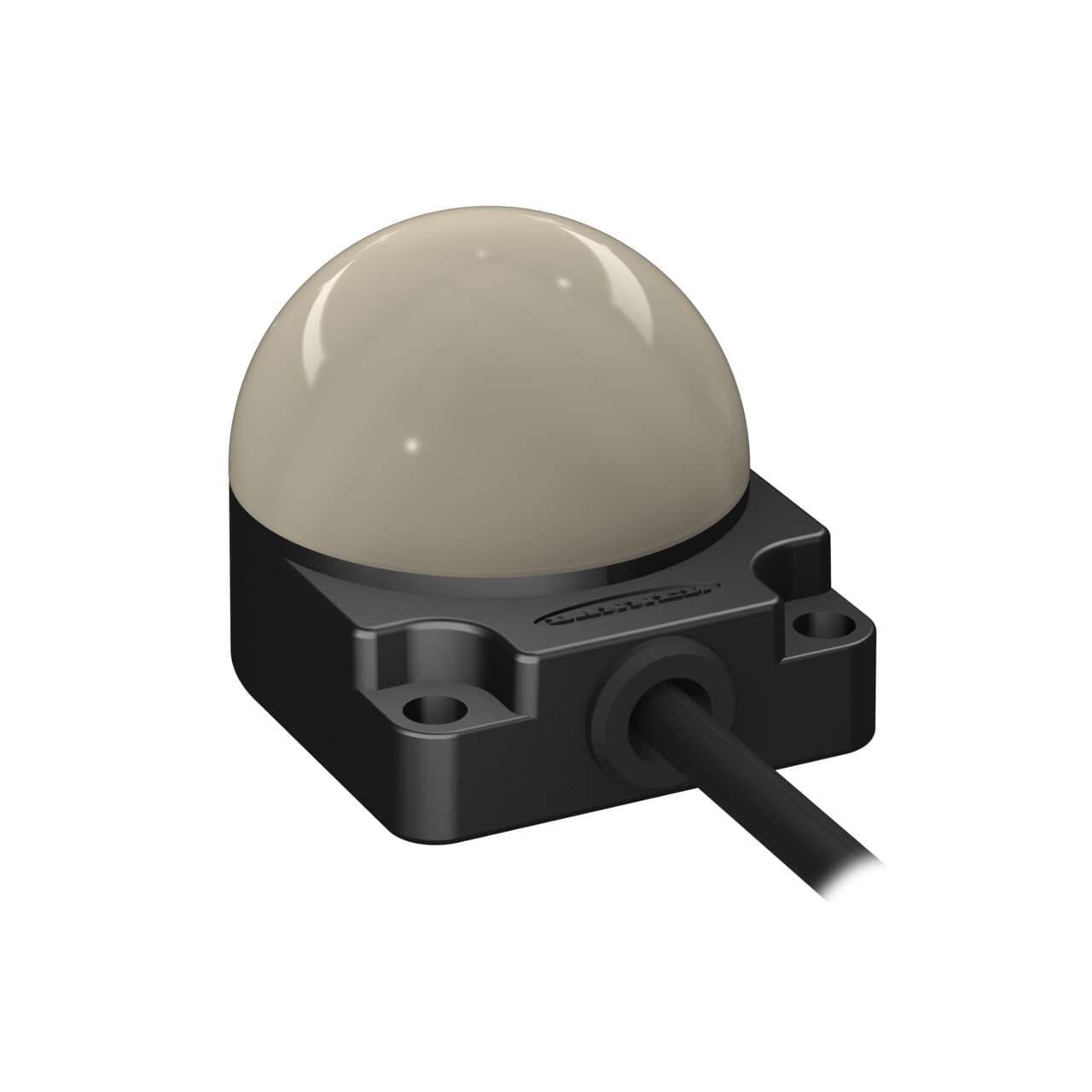

K50FLXXYP Banner Pick-to-Light Sensors

K50FLXXYP on Powermatic Associates
Banner
  • K50FLXXYP
  • K50FLXXYP

Part#:K50FLXXYP

Alt. Part#:83413

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 Series EZ-LIGHT: 1-Color General Purpose Flat Pack Indicator; Voltage: 18-30 V dc; Environmental Rating: IP67; IP69K; Input: PNP; Color: Yellow; 2 m (6.5 ft) Integral Cable

Product Details

  • Weight
    237.5007712 g
  • Country Of Origin
    CN
  • Feature: Audible
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Primary Housing Color
    Black
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Polycarbonate Diffused
  • Multi-Color Device
    Single Color On
  • Min Op. Temperature (°C)
    -40
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Max Op. Temperature (°C)
    50
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Environmental Rating
    IP67; IP69
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 76.0 x 44.6
  • Max Input Response Time (ms)
    1
  • Input Type
    PNP
  • Max Current Color (mA)
    40
  • Supply Voltage
    18-30 V dc
  • Number of Input Pins/Conductors
    4
  • Color Option 3
    Yellow
  • Color Technology
    Standard LED
  • Connection
    Cable
  • Product Size (mm)
    50
  • Power
    DC
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Power Source
    DC
  • Mounting Thread
    No Thread
  • Indication
    Yes
  • Primary Housing Material
    Polycarbonate
  • Number of Colors / Segments
    1
  • Housing Style
    Flat Mount - Dome Window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50FLXXYP on Powermatic Associates is $112.00. Order now.

About the product

Banner Engineering K50FLXXYP is a pilot light from the EZ-LIGHT Flat-mount series designed for surface or wall mounting. This part features a 2-color R/Y color pattern LED illumination housed in a black polycarbonate base with a dome window on a flat-pack body, ensuring visibility and durability. The polycarbonate diffused window is designed to withstand ambient air temperatures ranging from -40°C to +50°C. It is equipped with a 4-pin M12 Euro-style QD connector for easy installation and has a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. The K50FLXXYP has a diameter of 50mm / 2" for the dome and consumes 40mA of current. It also features 2 x digital inputs (18-30Vdc; NPN) for color control. This part is protected to IP67 and IP69K standards, ensuring operation in demanding environments.

K50FLXXYP Related Documents

203619.pdf
