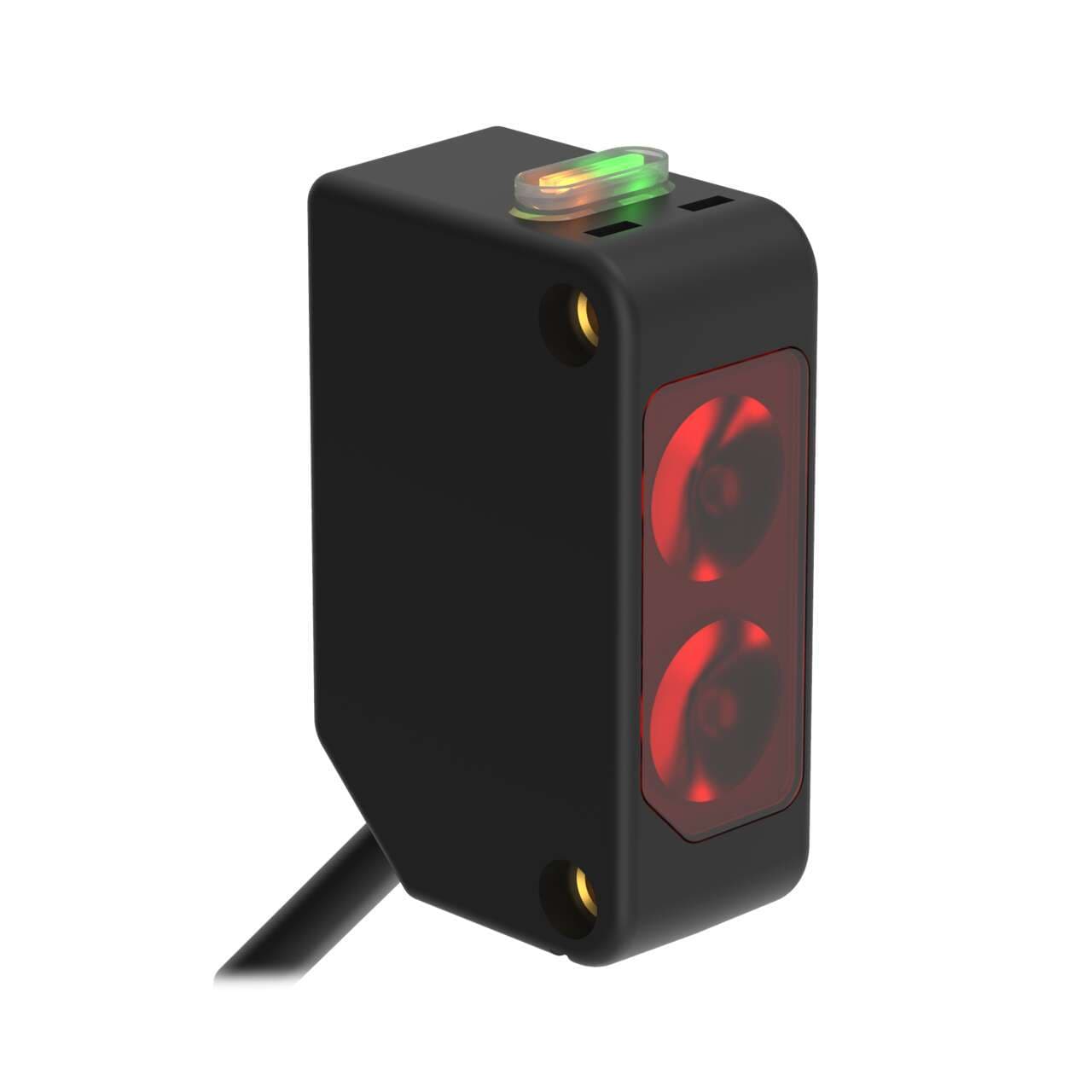

Q20PFF100 Banner Proximity Sensors
Part#:Q20PFF100
Alt. Part#:77773
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Fixed-Field; Range: 100 mm; Input 10-30 V dc; Output: Complementary Solid-State PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Product series / family name WORLD-BEAM series
- Functions Fixed-field photo-electric sensor green LED (power ON) amber LED (black (LO) wire conducting)
- Digital outputs 1 x digital output (PNP transistor)
- Operating mode Light-ON Dark-ON
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Material thermoplastic housing
- Main function Sensor (Photo-electric)
- Design background suppression system
- Wavelength 655 nm
- Degree of protection IP67 NEMA 6
- Order code / Manufacturer SKU 77773
- Primary brand Banner Engineering
- Sub-range name Q20 series
- Light Color Visible red
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Response time 0.8ms / 0.0008 s
- Ambient air temperature for operation -20...+60 °C
- Sensing distance 100mm
- Compliant with standard(s) cURus CE
- Power Supply/Supply Voltage 10-30 V dc
- NEMA Rating NEMA 6
- Feature: Encapsulated No
- Min Op. Temp. (°C) -20
- Cable Length (m) 2
- Input/Output Discrete
- Power DC
- Quick Disconnect Type No QD
- Operation Light/Dark Operate
- Delay at Power-up (ms) 100
- Sensing Beam Wavelength 655
- Indicator LEDs
- Housing Style Rectangular
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Outputs PNP
- Max Sensing Distance (mm) 100
- Special Feature: Intrinsically Safe No
- Sensing Beam Visible Red LED
- Primary Housing Material Thermoplastic
- Connection Cable
- Small Visible Spot LED
- Max Op. Temp. (°C) 60
- IP Rating IP67
- Feature: Hazardous Area No
- Sensing Mode (General) Proximity
- Special Feature: Remote Teach No
- Barrel Diameter (mm) N/A
- IO Link No
- Output response time (ms) 0.8
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Special Feature: Water Detection No
- Lens Material Acrylic
- DeviceNet No
- Repeatability (µs) 155
- Adjustments N/A
- Feature: Chemical Resistant No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Opposed Mode Emitter/Receiver N/A
- EPLAN Cabinet Installable No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20PFF100 on Powermatic Associates is $100.00. Order now.
About the product
Banner Engineering Q20PFF100 is a fixed-field photo-electric sensor from the Q20 series, designed with a background suppression system. It operates within an ambient air temperature range of -20 to +60°C and is housed in a thermoplastic material. This rectangular-shaped sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, ensuring easy installation. It offers a sensing distance of 100mm and emits visible red light with a wavelength of 655 nm. The Q20PFF100 operates in both Light-ON and Dark-ON modes, featuring a single digital output (PNP transistor) and a rapid response time of 0.8ms. It is powered by a supply voltage ranging from 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. This sensor is protected to IP67 NEMA 6 standards, making it suitable for various industrial applications.
