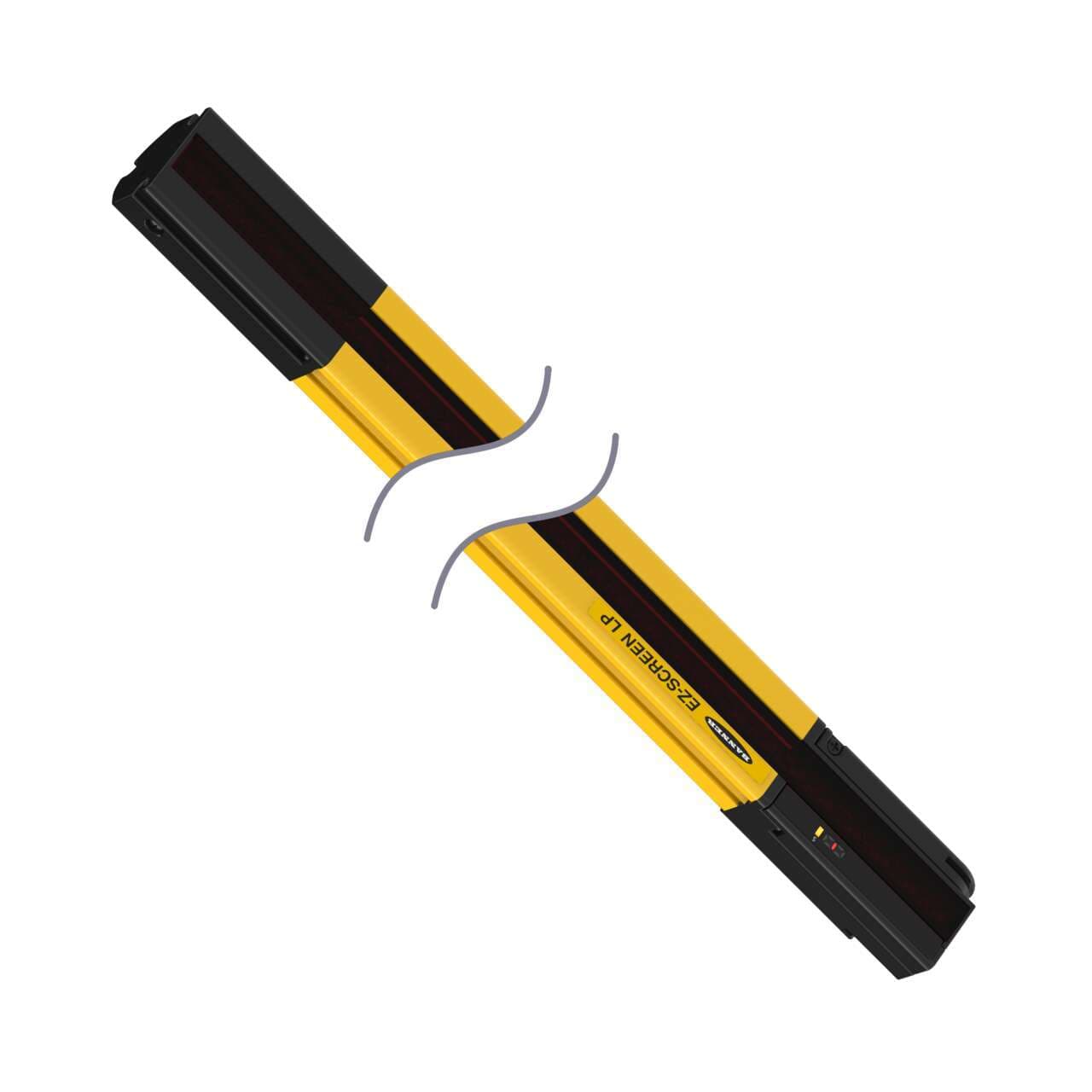

SLPE25-970P8 Banner Safety Light Curtains
Part#:SLPE25-970P8
Alt. Part#:83569
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SLPE25-970P8 EZ-SCREEN Low Profile Emitter; Res.: 25 mm Response (Tr): 15.5 ms; Beams: 49; Range: 0.1-7 m (4 in - 23 ft); Height: 970 mm (38.2 in); 300 mm (1 ft) 8-pin M12 Pigtail QD
Product Details
- Weight 1406.1352 g
- Country Of Origin US
- Feature: Integral Muting No
- Feature: ESD Safe No
- Supply Current 60 mA max.
- Feature: End-to-End Sensing Yes
- Test Input Yes
- OSSD Rating N/A
- Housing Material Aluminum; Zinc; Acrylic
- Fault Output Yes
- Auxiliary Output No
- Vibration 10-55 Hz at 0.35 mm
- System Type Emitter
- Shock 10g at 16ms (6000 cycles)
- Short Protection Yes
- Electrical Safety Class III
- SIL Rating SIL3; CL3
- Reduced Resolution Yes
- Resolution (mm) 25
- Response Time 15.5
- PL Rating Ple
- Operating Temperature 0 to +55 deg. C; RH 95%
- Recovery Time 25-152 / 81-495
- Fixed Blanking No
- Operating Voltage 24 V dc +/- 15%
- Housing Finish Yellow Polyester
- Operating Distance (m) 0.1 - 7
- Number of Pins (Receiver/Emitter) 8
- External Monitoring Device No
- IP Rating IP65
- Defined Area Height (mm) 970
- Dimensions WxD (mm) 28 x 26
- Connector Type M12 Pigtail (Yellow)
- Overall Length (mm) 970
- Effective Aperture Angle Type 4 Per IEC 61496-2
- low-profile Yes
- Safety Level Type 4
- Trip/Latch Output N/A
- Scan Code Selectable
- Primary Housing Material Aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPE25-970P8 on Powermatic Associates is $1,298.00. Order now.
About the product
Banner Engineering SLPE25-970P8 is a safety light curtain from the LP Low-Profile series designed for hand detection with a resolution of 25mm. This emitter alone unit features an aluminium housing, acrylic lens, and zinc end caps, ensuring durability. It comes pre-wired with a 300mm pigtail terminated with an 8-pin Euro-style M12 connector for easy installation. The protective height of the unit is 970mm, housed in a yellow aluminum casing, with overall dimensions of 28mm in width, 969mm in height, and 26mm in depth. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLPE25-970P8 offers a degree of protection rated at IP65, making it suitable for various industrial environments. It features a 25mm beam spacing/pitch and provides a sensing distance from 10cm up to 7m. The light curtain emits infrared (IR) light with a wavelength of 850 nm and has a response time of 15.5ms. It is equipped with two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 250mA; PNP transistor) for fault indication.
SLPE25-970P8 Related Documents
Similar products from: Banner Safety Light Curtains
Manufacturer warranty
SLPE25-970P8 Banner
$1,298.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$1,298.00
$1,298.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare SLPE25-970P8 with other Safety Light Curtains products
Weight
Country Of Origin
Feature: Integral Muting
Feature: ESD Safe
Supply Current
Feature: End-to-End Sensi...
Test Input
OSSD Rating
Housing Material
Fault Output
Selected product
SLPE25-970P8
Banner
SLPE25-970P8 EZ-SCREEN Low Profile Emitter; Res.: 25 mm Response (Tr): 15.5 ms; Beams: 49; Range: 0....
Weight1406.1352 g
Country Of OriginUS
Feature: Integral MutingNo
Feature: ESD SafeNo
Supply Current60 mA max.
Feature: End-to-End SensingYes
Test InputYes
OSSD RatingN/A
Housing MaterialAluminum; Zinc; Acrylic
Fault OutputYes
SLSP14-450P88
Banner
EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 450 mm (17.7 in); Housing Lengt...
Weight562.45408 g
Country Of OriginMX
Feature: Integral Muting-
Feature: ESD Safe-
Supply Current-
Feature: End-to-End Sensing-
Test Input-
OSSD Rating-
Housing Material-
Fault Output-
SLSP30-1200Q88
Banner
EZ-SCREEN Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1200 mm (47.2 in); Housing Len...
Weight7892.5008 g
Country Of OriginMX
Feature: Integral Muting-
Feature: ESD Safe-
Supply Current-
Feature: End-to-End Sensing-
Test Input-
OSSD Rating-
Housing Material-
Fault Output-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of SLPE25-970P8?
Purchase the SLPE25-970P8 from Powermatic Associates at the price of $1,298.00. Order today.
Out if stock but available for backorder.
SLPE25-970P8 EZ-SCREEN Low Profile Emitter; Res.: 25 mm Response (Tr): 15.5 ms; Beams: 49; Range: 0.1-7 m (4 in - 23 ft); Height: 970 mm (38.2 in); 300 mm (1 ft) 8-pin M12 Pigtail QD
