SLSP14-1650Q88 Banner Safety Light Curtains
Part#:SLSP14-1650Q88
Alt. Part#:73373
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 1650 mm (65.0 in); Housing Length: 1719 mm (67.7 in); Connection: 8-pin M12 Connectors; Emitter: No test input
Product Details
- Weight 9979.024 g
- Country Of Origin MX
- Primary Housing Material Aluminum
- Housing Finish Yellow Polyester
- SIL Rating SIL3; CL3
- Auxiliary Output Yes
- Feature: Integral Muting No
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Reduced Resolution Yes
- Shock 10g at 16ms (6000 cycles)
- Feature: ESD Safe No
- Dimensions WxD (mm) 36 x 45.2
- Operating Distance (m) 0.1 - 6
- Recovery Time 33-220 / 109-800
- Test Input No
- Fixed Blanking Yes
- Response Time 52
- OSSD Rating 24 V dc at 0.5 A each
- low-profile No
- Vibration 10-55 Hz at 0.35 mm
- Connector Type M12
- IP Rating IP65
- Electrical Safety Class III
- Housing Material Aluminum; Zinc; Acrylic
- Defined Area Height (mm) 1650
- Operating Voltage 24 V dc +/- 15%
- Trip/Latch Output Selectable
- Short Protection Yes
- Safety Level Type 4
- Operating Temperature 0 to +55 deg. C; RH 95%
- Scan Code Selectable
- Supply Current 375 mA max.
- External Monitoring Device 1 or 2 Channel
- Resolution (mm) 14
- System Type Emitter/Receiver Pair
- Feature: End-to-End Sensing No
- Overall Length (mm) 1719
- Number of Pins (Receiver/Emitter) 8
- PL Rating Ple
- Fault Output No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSP14-1650Q88 on Powermatic Associates is $6,270.00. Order now.
About the product

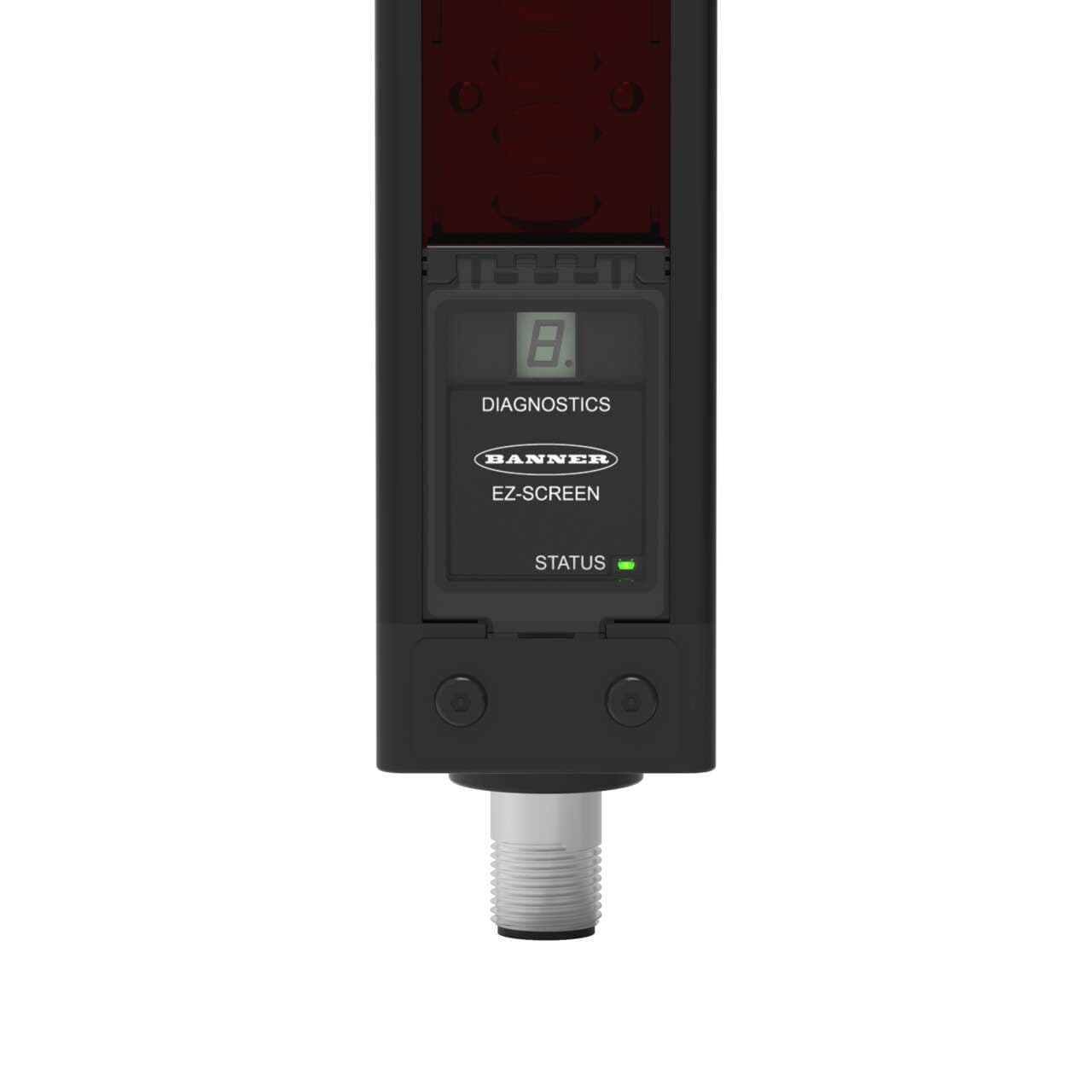

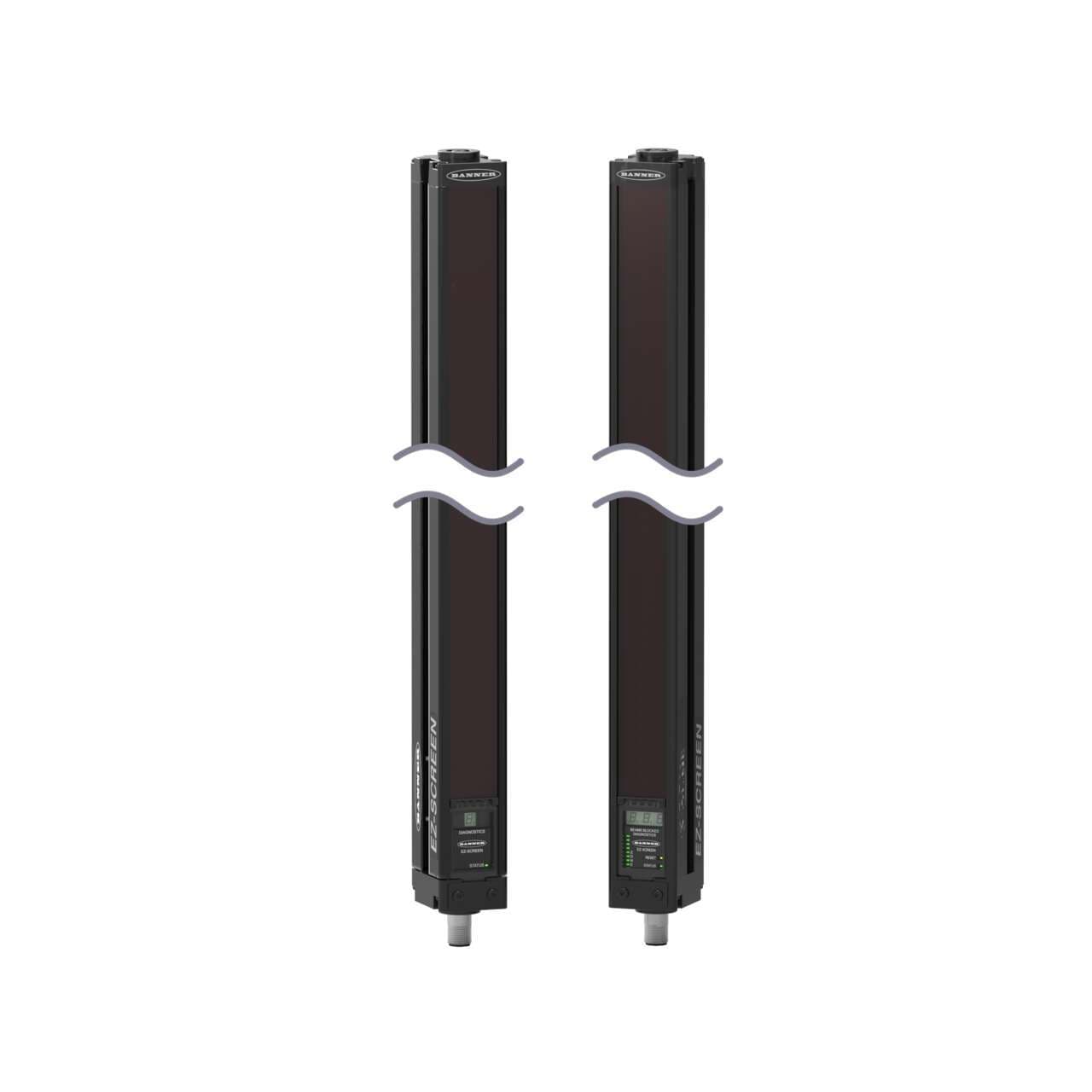

Banner Engineering SLSP14-1650Q88 is a safety light curtain designed for protective applications, part of the 14/30 series. This unit comprises an emitter and receiver pair housed in aluminum with acrylic lenses and die-cast zinc end caps. It features a pre-equipped 8-pin Euro-style M12 connector for connectivity. The device spans a protective height of 1650mm and is encased in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is suited for various industrial environments. The SLSP14-1650Q88 offers a 14mm beam spacing/pitch and includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary functions. It has a sensing distance range from 10cm to 6m and utilizes infrared light with a wavelength of 850 nm. The device also features one digital input (10Vdc-30Vdc) for EDM and one for RESET. Its response time is 52ms, and it has a resolution of 14mm for finger detection.
SLSP14-1650Q88 Related Documents
Similar products from: Banner Safety Light Curtains
Manufacturer warranty
SLSP14-1650Q88 Banner
$6,270.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$6,270.00
$6,270.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare SLSP14-1650Q88 with other Safety Light Curtains products
Weight
Country Of Origin
Primary Housing Material
Housing Finish
SIL Rating
Auxiliary Output
Feature: Integral Muting
Effective Aperture Angle
Reduced Resolution
Shock
Selected product
SLSP14-1650Q88
Banner
EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 1650 mm (65.0 in); Housing Leng...
Weight9979.024 g
Country Of OriginMX
Primary Housing MaterialAluminum
Housing FinishYellow Polyester
SIL RatingSIL3; CL3
Auxiliary OutputYes
Feature: Integral MutingNo
Effective Aperture AngleType 4 Per IEC 61496-2
Reduced ResolutionYes
Shock10g at 16ms (6000 cycles)
SLSP30-1200Q88
Banner
EZ-SCREEN Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1200 mm (47.2 in); Housing Len...
Weight7892.5008 g
Country Of OriginMX
Primary Housing MaterialAluminum
Housing Finish-
SIL Rating-
Auxiliary Output-
Feature: Integral Muting-
Effective Aperture AngleType 4 Per IEC 61496-2
Reduced Resolution-
Shock-
SLSP14-450P88
Banner
EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 450 mm (17.7 in); Housing Lengt...
Weight562.45408 g
Country Of OriginMX
Primary Housing MaterialAluminum
Housing Finish-
SIL Rating-
Auxiliary Output-
Feature: Integral Muting-
Effective Aperture AngleType 4 Per IEC 61496-2
Reduced Resolution-
Shock-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of SLSP14-1650Q88?
Purchase the SLSP14-1650Q88 from Powermatic Associates at the price of $6,270.00. Order today.
Out if stock but available for backorder.
EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 1650 mm (65.0 in); Housing Length: 1719 mm (67.7 in); Connection: 8-pin M12 Connectors; Emitter: No test input
