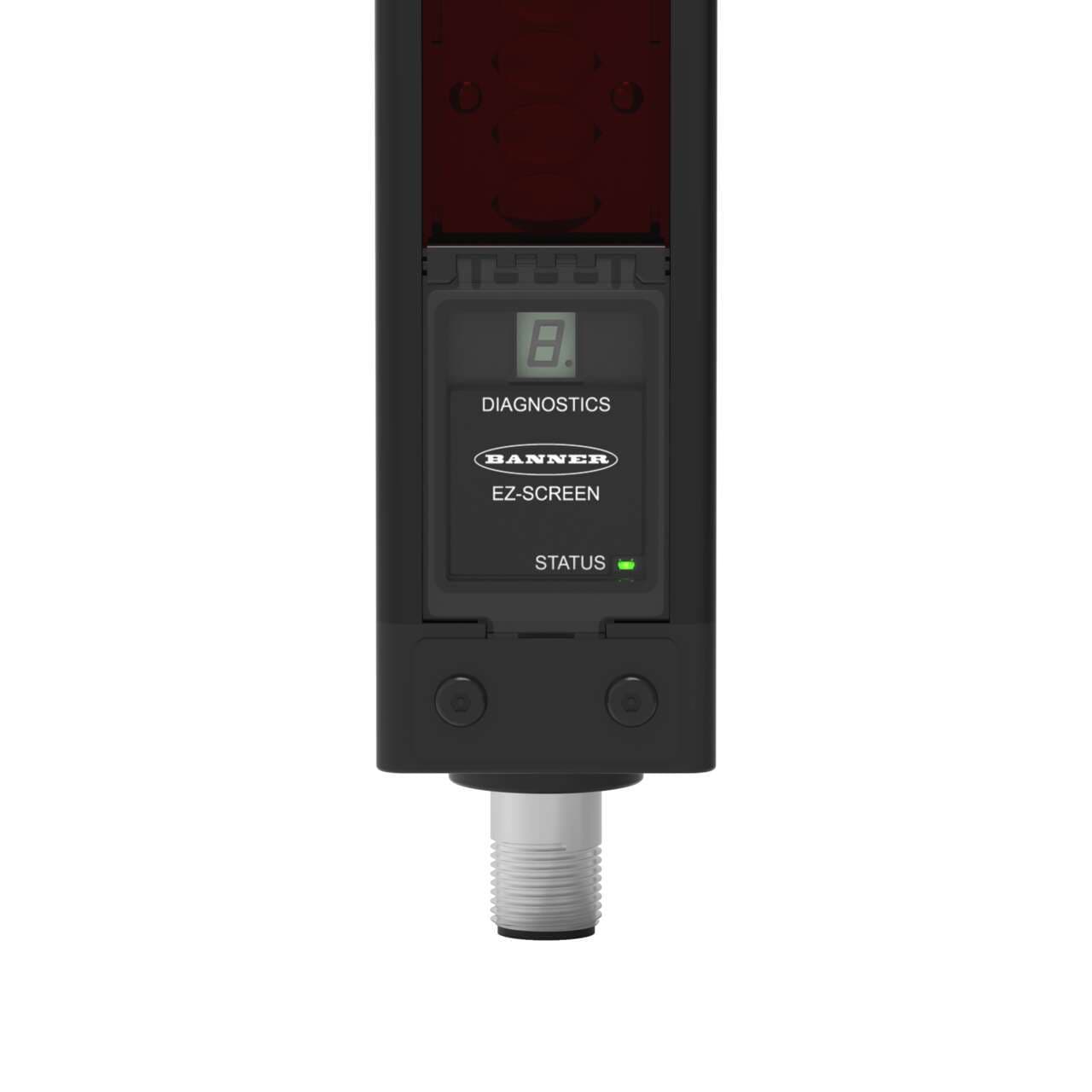

SLSP14-300Q85 Banner Safety Light Curtains
Part#:SLSP14-300Q85
Alt. Part#:71229
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 300 mm (11.8 in); Housing Length: 372 mm (14.6 in); Connection: Receiver 8-pin M12 Connector; Emitter: 5-pin M12 Connector, with test input
Product Details
- Weight 414.7191656 g
- Country Of Origin MX
- Primary Housing Material Aluminum
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Safety Level Type 4
- Connector Type M12
- External Monitoring Device 1 or 2 Channel
- Dimensions WxD (mm) 36 x 45.2
- Overall Length (mm) 372
- Defined Area Height (mm) 300
- Fixed Blanking Yes
- IP Rating IP65
- low-profile No
- Operating Distance (m) 0.1 - 6
- Housing Finish Yellow Polyester
- Number of Pins (Receiver/Emitter) 8,5
- Operating Voltage 24 V dc +/- 15%
- Response Time 15
- Fault Output No
- Scan Code Selectable
- Auxiliary Output Yes
- Feature: ESD Safe No
- Shock 10g at 16ms (6000 cycles)
- Test Input Yes
- Short Protection Yes
- Feature: End-to-End Sensing No
- System Type Emitter/Receiver Pair
- Feature: Integral Muting No
- Vibration 10-55 Hz at 0.35 mm
- Trip/Latch Output Selectable
- OSSD Rating 24 V dc at 0.5 A each
- Housing Material Aluminum; Zinc; Acrylic
- Supply Current 375 mA max.
- Operating Temperature 0 to +55 deg. C; RH 95%
- PL Rating Ple
- Resolution (mm) 14
- Recovery Time 33-220 / 109-800
- Reduced Resolution Yes
- SIL Rating SIL3; CL3
- Electrical Safety Class III
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSP14-300Q85 on Powermatic Associates is $1,904.00. Order now.
About the product
Banner Engineering SLSP14-300Q85 is a safety light curtain from the 14/30 series designed with a test input function. This unit comprises an emitter and receiver pair housed in aluminum with acrylic lenses and die-cast zinc end caps. It features a pre-equipped 5-pin Euro-style M12 connector for connectivity. The SLSP14-300Q85 offers a protective height of 300mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is suitable for various industrial environments. The device has a 14mm beam spacing/pitch and includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary purposes, and digital inputs for EDM and RESET functions (10Vdc-30Vdc). Its sensing distance ranges from 10cm to 6m, utilizing infrared light with a wavelength of 850 nm. The SLSP14-300Q85 has a resolution of 14mm for finger detection and a response time of 15ms.
