SLSP14-450Q88 Banner Safety Light Curtains
Part#:SLSP14-450Q88
Alt. Part#:72381
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 450 mm (17.7 in); Housing Length: 522 mm (17.7 in); Connection: 8-pin M12 Connectors; Emitter: No test input
Product Details
- Weight 414.7191656 g
- Country Of Origin MX
- Dimensions WxD (mm) 36 x 45.2
- PL Rating Ple
- Shock 10g at 16ms (6000 cycles)
- Trip/Latch Output Selectable
- Overall Length (mm) 522
- Number of Pins (Receiver/Emitter) 8
- Vibration 10-55 Hz at 0.35 mm
- Feature: ESD Safe No
- Safety Level Type 4
- IP Rating IP65
- Reduced Resolution Yes
- System Type Emitter/Receiver Pair
- Test Input No
- Defined Area Height (mm) 450
- Operating Temperature 0 to +55 deg. C; RH 95%
- SIL Rating SIL3; CL3
- Housing Material Aluminum; Zinc; Acrylic
- Scan Code Selectable
- Primary Housing Material Aluminum
- Fixed Blanking Yes
- Supply Current 375 mA max.
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Housing Finish Yellow Polyester
- Response Time 19
- Auxiliary Output Yes
- Feature: Integral Muting No
- External Monitoring Device 1 or 2 Channel
- Operating Distance (m) 0.1 - 6
- Electrical Safety Class III
- OSSD Rating 24 V dc at 0.5 A each
- low-profile No
- Recovery Time 33-220 / 109-800
- Short Protection Yes
- Feature: End-to-End Sensing No
- Connector Type M12
- Operating Voltage 24 V dc +/- 15%
- Resolution (mm) 14
- Fault Output No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSP14-450Q88 on Powermatic Associates is $2,391.00. Order now.
About the product

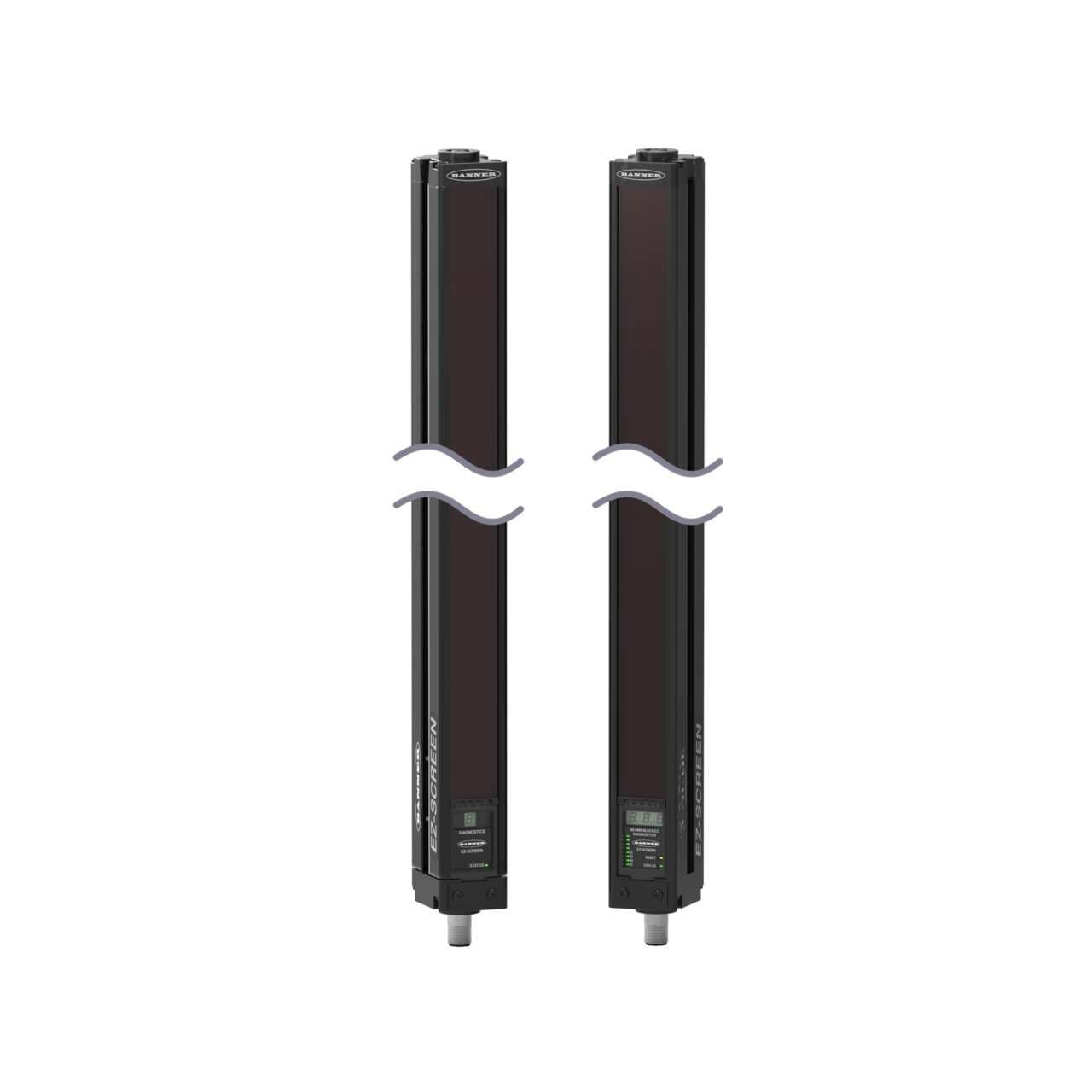

Banner Engineering SLSP14-450Q88 is a safety light curtain from the 14/30 series designed for finger detection with a resolution of 14mm. This unit comprises an emitter and receiver pair housed in yellow aluminum with acrylic lens and die-cast zinc end caps. It features a protective height of 450mm and is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The SLSP14-450Q88 operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP65, making it suitable for various industrial environments. The safety light curtain has a sensing distance ranging from 10cm to 6m and utilizes infrared light with a wavelength of 850 nm. It is equipped with two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one additional digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary functions, and two digital inputs (10Vdc-30Vdc) for EDM and RESET functions. The response time of the device is 19ms.
