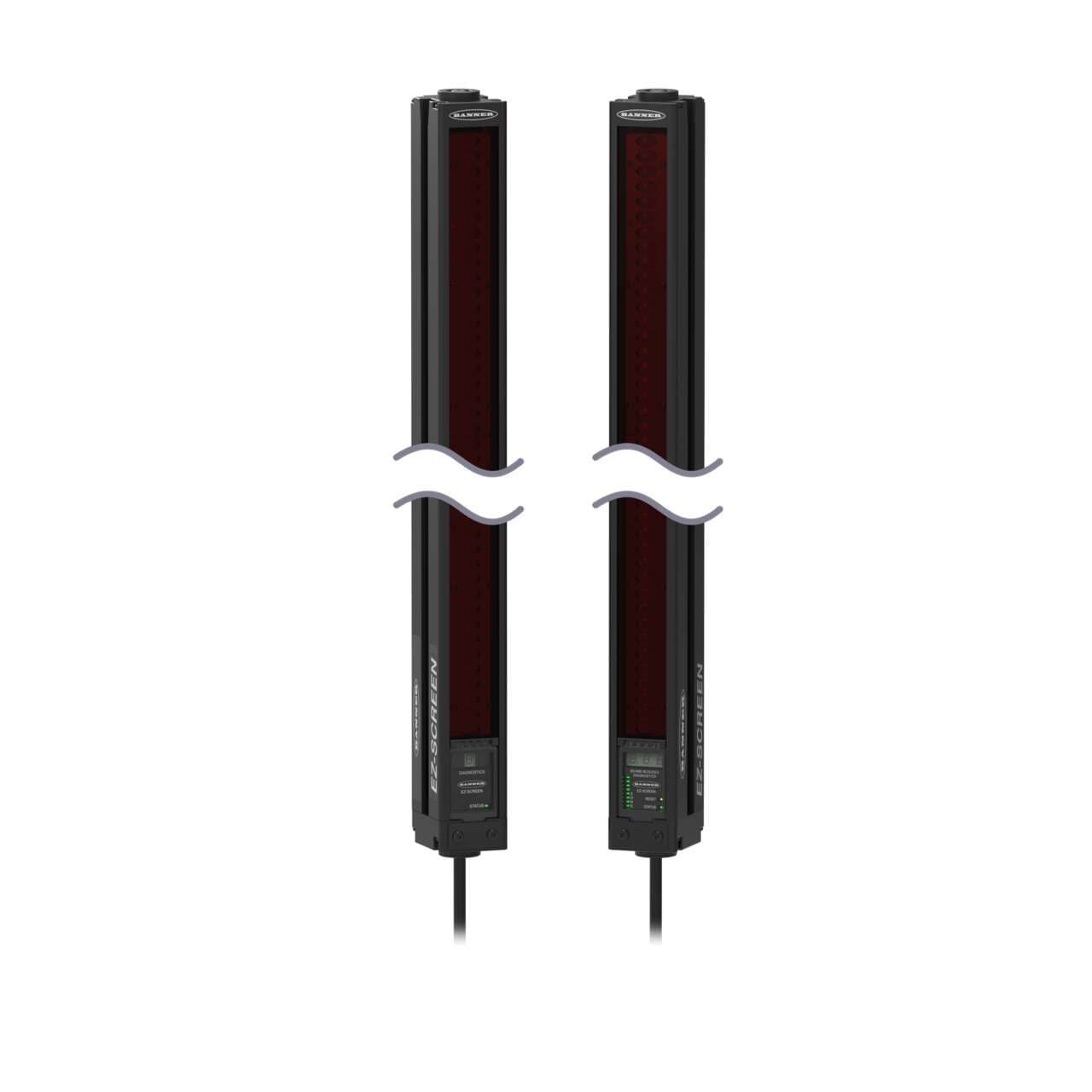

SLSP14-750P88 Banner Safety Light Curtains
Part#:SLSP14-750P88
Alt. Part#:73952
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 750 mm (29.5 in); Housing Length: 821 mm (32.3 in); Connection: 8-pin M12 Pigtail Connectors; Emitter: No test input
Product Details
- Weight 562.45408 g
- Country Of Origin MX
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Fixed Blanking Yes
- Short Protection Yes
- Feature: End-to-End Sensing No
- Primary Housing Material Aluminum
- Number of Pins (Receiver/Emitter) 8
- Vibration 10-55 Hz at 0.35 mm
- Feature: ESD Safe No
- Recovery Time 33-220 / 109-800
- Dimensions WxD (mm) 36 x 45.2
- Electrical Safety Class III
- Feature: Integral Muting No
- System Type Emitter/Receiver Pair
- Test Input No
- Safety Level Type 4
- Operating Voltage 24 V dc +/- 15%
- Scan Code Selectable
- Auxiliary Output Yes
- External Monitoring Device 1 or 2 Channel
- Operating Distance (m) 0.1 - 6
- Response Time 27
- Fault Output No
- Overall Length (mm) 821
- PL Rating Ple
- SIL Rating SIL3; CL3
- OSSD Rating 24 V dc at 0.5 A each
- low-profile No
- Housing Finish Yellow Polyester
- Shock 10g at 16ms (6000 cycles)
- Supply Current 375 mA max.
- Defined Area Height (mm) 750
- Operating Temperature 0 to +55 deg. C; RH 95%
- Reduced Resolution Yes
- Housing Material Aluminum; Zinc; Acrylic
- Connector Type M12 Pigtail (Yellow)
- IP Rating IP65
- Resolution (mm) 14
- Trip/Latch Output Selectable
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSP14-750P88 on Powermatic Associates is $3,402.00. Order now.
About the product
Banner Engineering SLSP14-750P88 is a safety light curtain designed for finger detection with a resolution of 14mm, part of the 14/30 series. This unit features an emitter and receiver pair housed in aluminum with acrylic lenses and die-cast zinc end caps. It comes pre-wired with a 300mm pigtail terminated with an 8-pin Euro-style M12 connector. The protective height of the device is 750mm, and it is finished in yellow. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSP14-750P88 offers a degree of protection rated at IP65 and has a beam spacing/pitch of 14mm. It includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary purposes, one digital input (10Vdc-30Vdc) for EDM, and one digital input (10Vdc-30Vdc) for reset functions. The sensing distance ranges from 10cm to 6m, and it utilizes infrared (IR) light with a wavelength of 850 nm. The response time is 27ms / 0.027 s.
