SLSP14-900Q85 Banner Safety Light Curtains
Part#:SLSP14-900Q85
Alt. Part#:71233
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 900 mm (35.4 in); Housing Length: 971 mm (38.2 in); Connection: Receiver 8-pin M12 Connector; Emitter: 5-pin M12 Connector, with test input
Product Details
- Weight 7166.7536 g
- Country Of Origin MX
- Fixed Blanking Yes
- Response Time 32
- Vibration 10-55 Hz at 0.35 mm
- Feature: Integral Muting No
- Overall Length (mm) 971
- Operating Distance (m) 0.1 - 6
- Short Protection Yes
- OSSD Rating 24 V dc at 0.5 A each
- low-profile No
- Number of Pins (Receiver/Emitter) 8,5
- SIL Rating SIL3; CL3
- Trip/Latch Output Selectable
- External Monitoring Device 1 or 2 Channel
- PL Rating Ple
- System Type Emitter/Receiver Pair
- Feature: End-to-End Sensing No
- Connector Type M12
- Safety Level Type 4
- Operating Voltage 24 V dc +/- 15%
- Scan Code Selectable
- Test Input Yes
- Defined Area Height (mm) 900
- IP Rating IP65
- Resolution (mm) 14
- Auxiliary Output Yes
- Feature: ESD Safe No
- Dimensions WxD (mm) 36 x 45.2
- Recovery Time 33-220 / 109-800
- Electrical Safety Class III
- Housing Material Aluminum; Zinc; Acrylic
- Primary Housing Material Aluminum
- Housing Finish Yellow Polyester
- Reduced Resolution Yes
- Fault Output No
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Operating Temperature 0 to +55 deg. C; RH 95%
- Shock 10g at 16ms (6000 cycles)
- Supply Current 375 mA max.
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSP14-900Q85 on Powermatic Associates is $3,844.00. Order now.
About the product

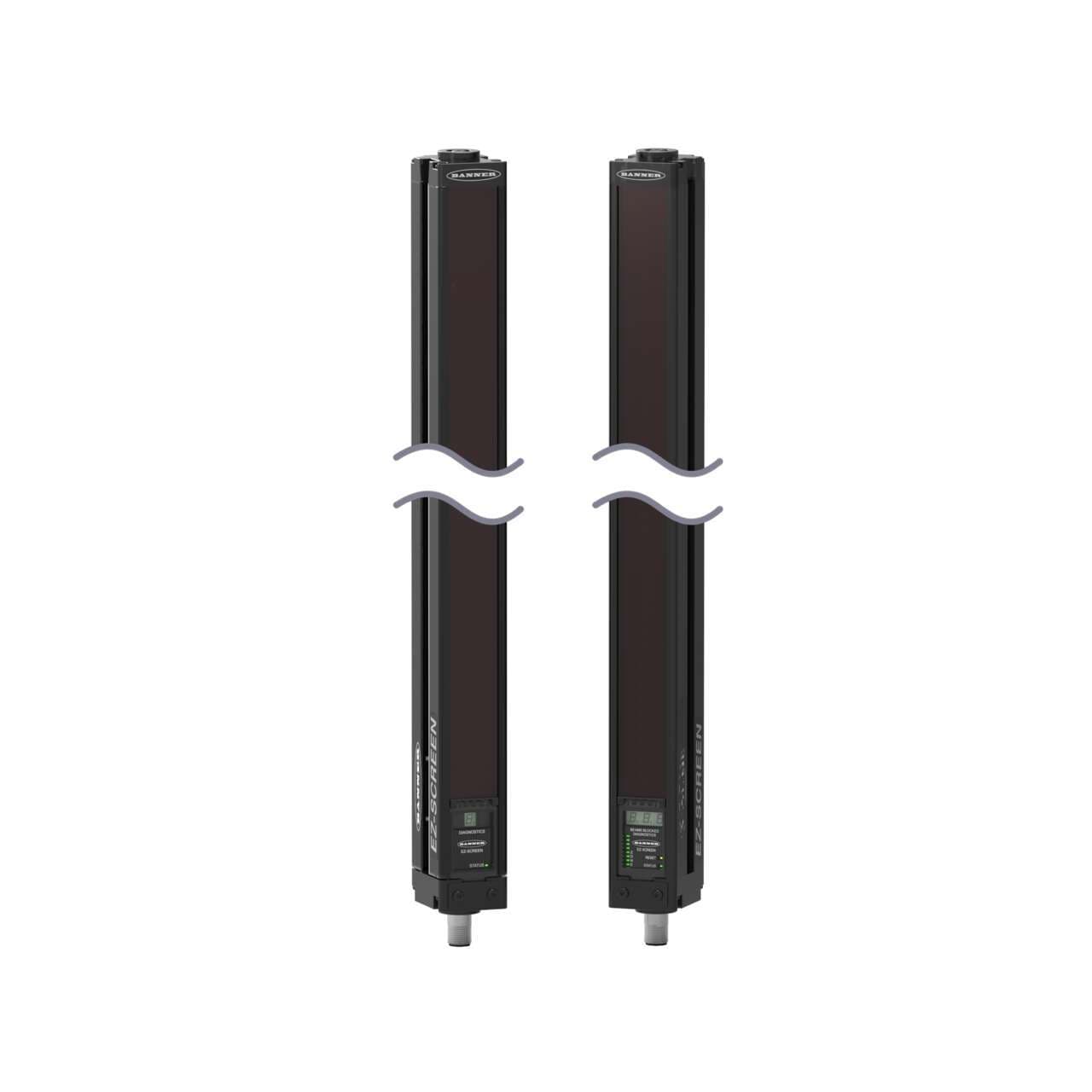

Banner Engineering SLSP14-900Q85 is a safety light curtain from the 14/30 series designed with a test input function. This unit comprises an emitter and receiver pair housed in aluminum with acrylic lenses and die-cast zinc end caps. It features a pre-equipped 5-pin Euro-style M12 connector for connectivity. The SLSP14-900Q85 offers a protective height of 900mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. This part is rated with an IP65 degree of protection and has a 14mm beam spacing/pitch. It includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and 1 x digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output. The sensing distance ranges from 10cm to 6m, utilizing infrared (IR) light with a wavelength of 850 nm. Additionally, it features 1 x digital input (10Vdc-30Vdc) for EDM input and 1 x digital input (10Vdc-30Vdc) for RESET input, with a response time of 32ms / 0.032 s and a resolution of 14mm for finger detection.
