SLSP30-1200P44NT Banner Safety Light Curtains
Part#:SLSP30-1200P44NT
Alt. Part#:11921
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description

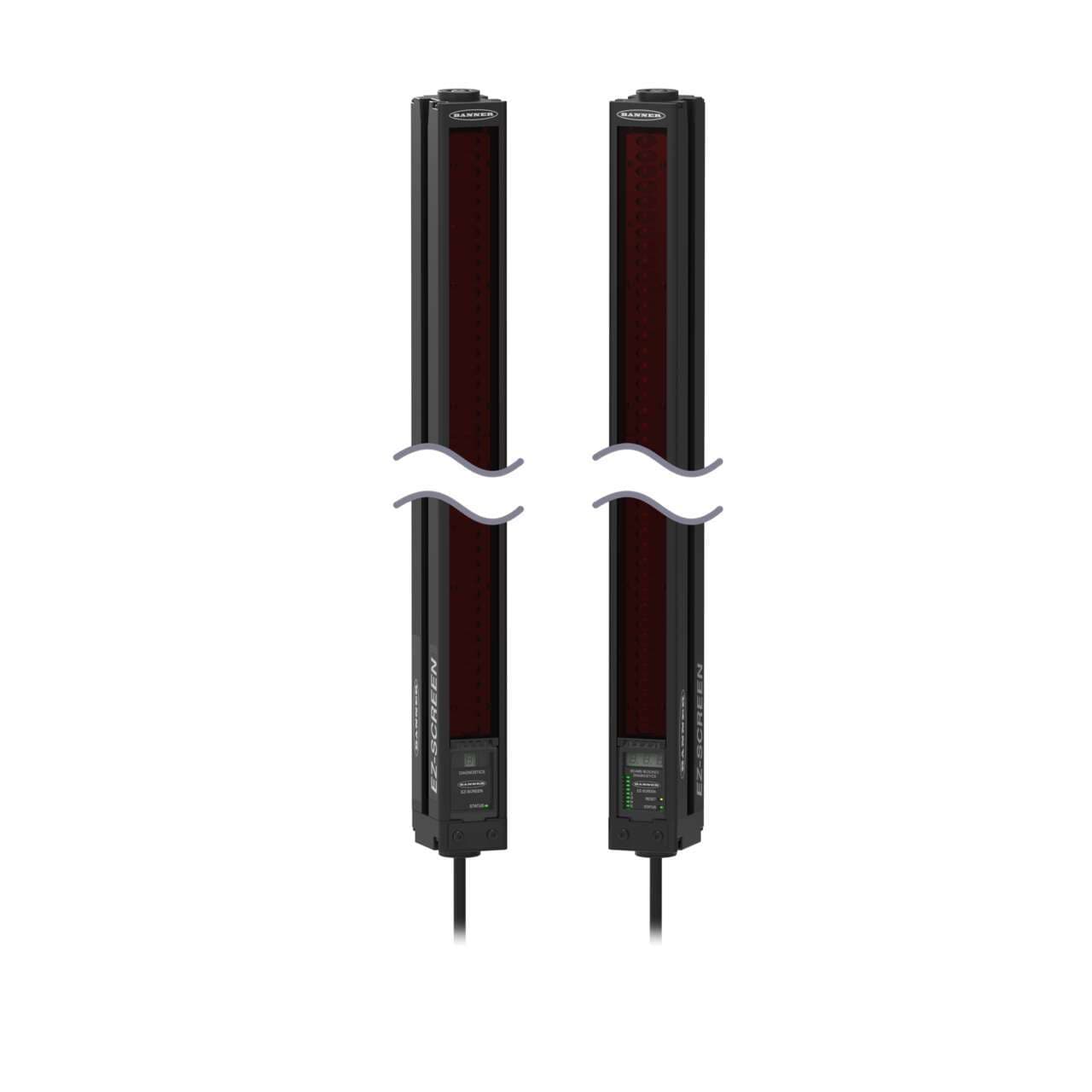

EZ-SCREEN Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1200 mm (47.2 in); Housing Length: 1270 mm (50.0 in); Connection: 4-pin M12 Pigtail Connectors; Emitter: No test Input
Product Details
- Weight 7733.7436 g
- Country Of Origin MX
- Housing Finish Yellow Polyester
- SIL Rating SIL3; CL3
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Shock 10g at 16ms (6000 cycles)
- Test Input No
- Primary Housing Material Aluminum
- PL Rating Ple
- Vibration 10-55 Hz at 0.35 mm
- Overall Length (mm) 1270
- Resolution (mm) 30
- Fault Output No
- External Monitoring Device 1 or 2 Channel
- Operating Voltage 24 V dc +/- 15%
- System Type Emitter/Receiver Pair
- Feature: Integral Muting No
- Safety Level Type 4
- Fixed Blanking Yes
- Reduced Resolution Yes
- Housing Material Aluminum; Zinc; Acrylic
- Dimensions WxD (mm) 36 x 45.2
- Recovery Time 25-152 / 81-495
- Supply Current 375 mA max.
- IP Rating IP65
- Response Time 23
- Short Protection Yes
- Connector Type M12 Pigtail (Yellow)
- Feature: ESD Safe No
- Number of Pins (Receiver/Emitter) 4
- Electrical Safety Class III
- OSSD Rating 24 V dc at 0.5 A each
- Operating Temperature 0 to +55 deg. C; RH 95%
- Auxiliary Output Yes
- Defined Area Height (mm) 1200
- Feature: End-to-End Sensing No
- low-profile No
- Operating Distance (m) 0.1 - 18
- Scan Code Selectable
- Trip/Latch Output Selectable
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSP30-1200P44NT on Powermatic Associates is $3,990.00. Order now.
About the product
Banner Engineering SLSP30-1200P44NT is a safety light curtain from the 14/30 series designed with no test or ground wire. It features an aluminium housing, acrylic lens, and die-cast zinc end caps. This part is pre-wired with a 300mm pigtail that terminates with a 4-pin Euro-style M12 connector. It offers a protective height of 1200mm and comes in a yellow housing. The SLSP30-1200P44NT operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It is rated with an IP65 degree of protection. The dimensions include a net width of 36mm, a net height of 1270mm, and a net depth of 46mm. The light curtain has a 30mm beam spacing/pitch and uses infrared light with a wavelength of 850nm for detection, suitable for hand detection with a resolution of 30mm. It has a sensing distance ranging from 10cm to 18m and includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output, one digital input (10Vdc-30Vdc) for EDM input, and one digital input (10Vdc-30Vdc) for RESET input. The response time of the device is 23ms / 0.023 s.
