SLSP30-150P44NT Banner Safety Light Curtains

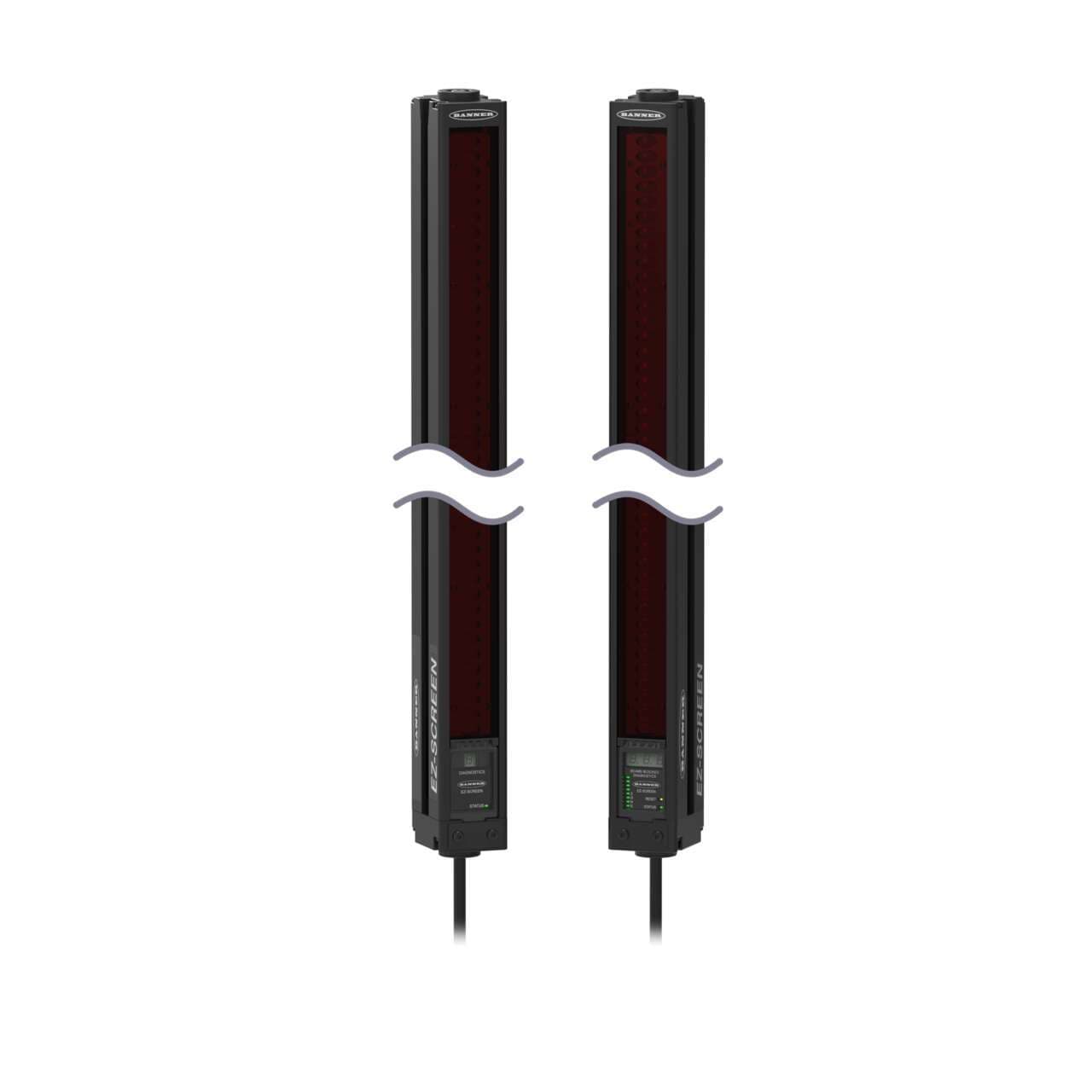

Banner Engineering SLSP30-150P44NT is a safety light curtain from the 14/30 series designed with no test and no ground wire. It features an emitter and receiver pair housed in aluminum with acrylic lens and die-cast zinc end caps. This part is pre-wired with a 300mm pigtail that terminates with a 4-pin Euro-style M12 connector. It offers a protective height of 150mm and comes in a yellow housing. The SLSP30-150P44NT operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It is rated with an IP65 degree of protection. The dimensions include a net width of 36mm, a net height of 262mm, and a net depth of 46mm. The light curtain features a 30mm beam spacing/pitch and provides sensing distances from 10cm to 18m. It emits infrared light with a wavelength of 850 nm and has a resolution of 30mm for hand detection. The device includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output, one digital input (10Vdc-30Vdc) for EDM input, and one digital input (10Vdc-30Vdc) for RESET input. Its response time is 9ms / 0.009 s.
