SLSP30-1650P88 Banner Safety Light Curtains
Part#:SLSP30-1650P88
Alt. Part#:73970
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1650 mm (65.0 in); Housing Length: 1719 mm (67.7 in); Connection: 8-pin M12 Pigtail Connectors; Emitter: No test Input
Product Details
- Weight 9979.024 g
- Country Of Origin MX
- External Monitoring Device 1 or 2 Channel
- Operating Voltage 24 V dc +/- 15%
- Electrical Safety Class III
- Housing Material Aluminum; Zinc; Acrylic
- low-profile No
- Housing Finish Yellow Polyester
- Response Time 30
- Fault Output No
- Effective Aperture Angle Type 4 Per IEC 61496-2
- PL Rating Ple
- Reduced Resolution Yes
- Auxiliary Output Yes
- Safety Level Type 4
- Primary Housing Material Aluminum
- Number of Pins (Receiver/Emitter) 8
- Operating Temperature 0 to +55 deg. C; RH 95%
- Shock 10g at 16ms (6000 cycles)
- System Type Emitter/Receiver Pair
- OSSD Rating 24 V dc at 0.5 A each
- Supply Current 375 mA max.
- Overall Length (mm) 1719
- Fixed Blanking Yes
- Resolution (mm) 30
- Vibration 10-55 Hz at 0.35 mm
- Feature: Integral Muting No
- Dimensions WxD (mm) 36 x 45.2
- Operating Distance (m) 0.1 - 18
- Scan Code Selectable
- Test Input No
- Defined Area Height (mm) 1650
- IP Rating IP65
- SIL Rating SIL3; CL3
- Trip/Latch Output Selectable
- Connector Type M12 Pigtail (Yellow)
- Recovery Time 25-152 / 81-495
- Short Protection Yes
- Feature: ESD Safe No
- Feature: End-to-End Sensing No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSP30-1650P88 on Powermatic Associates is $5,237.00. Order now.
About the product

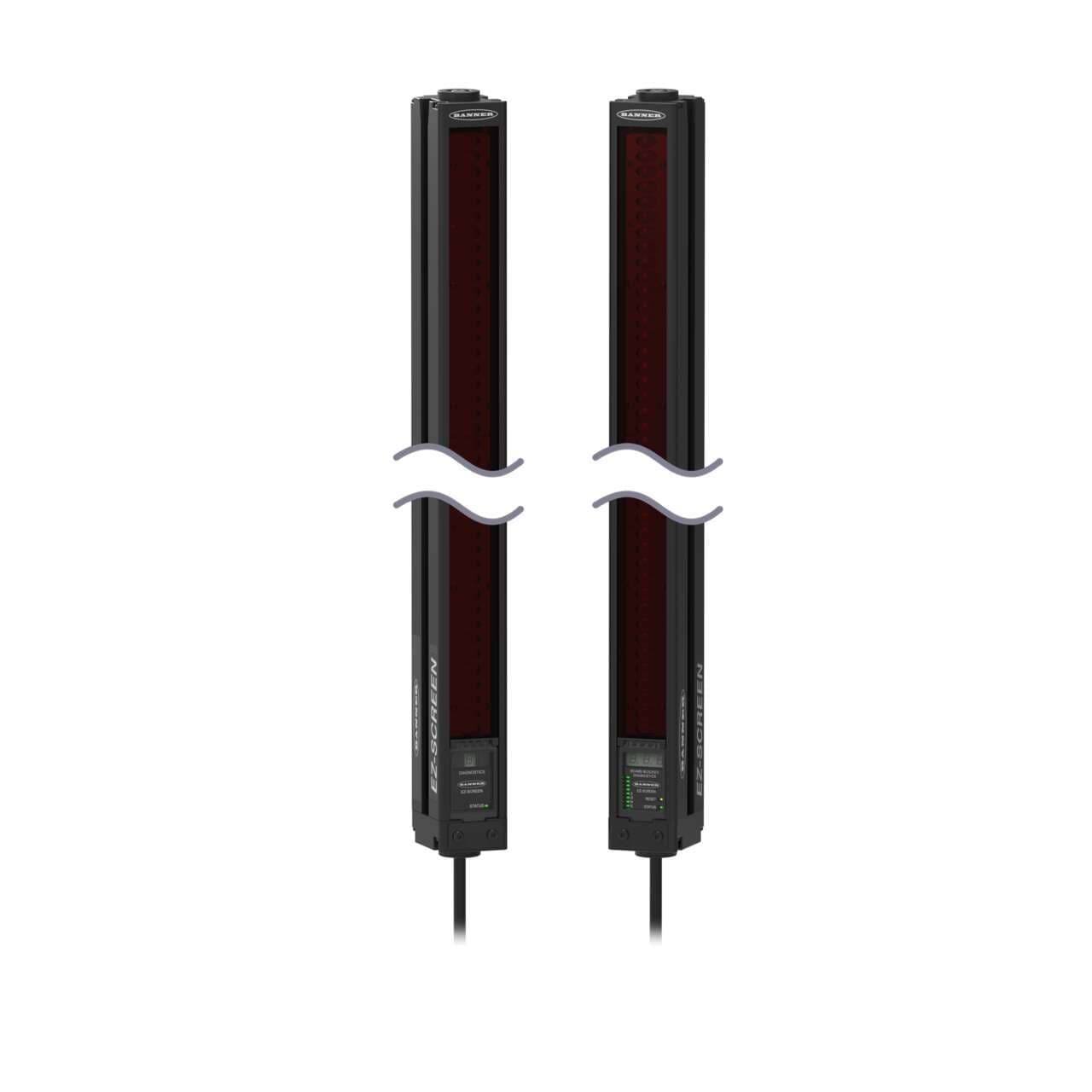

Banner Engineering SLSP30-1650P88 is a safety light curtain from the 14/30 series designed for hand detection with a resolution of 30mm. It features an emitter and receiver pair housed in aluminum with acrylic lens and die-cast zinc end caps. This unit is pre-wired with a 300mm pigtail that terminates in an 8-pin Euro-style M12 connector. It offers a protective height of 1650mm and operates on a 24Vdc supply voltage. The SLSP30-1650P88 operates within an ambient air temperature range of 0 to +55°C and is rated IP65 for protection against dust and water ingress. It has a net width of 36mm, a height of 1719mm, and a depth of 46mm. The light curtain provides a sensing distance of 10cm to 18m with infrared light at a wavelength of 850 nm. It features two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary functions, and two digital inputs (10Vdc-30Vdc) for EDM and RESET functions. The response time is 30ms, and the beam spacing is 30mm. The housing is colored yellow.
