SLSP30-750Q85 Banner Safety Light Curtains

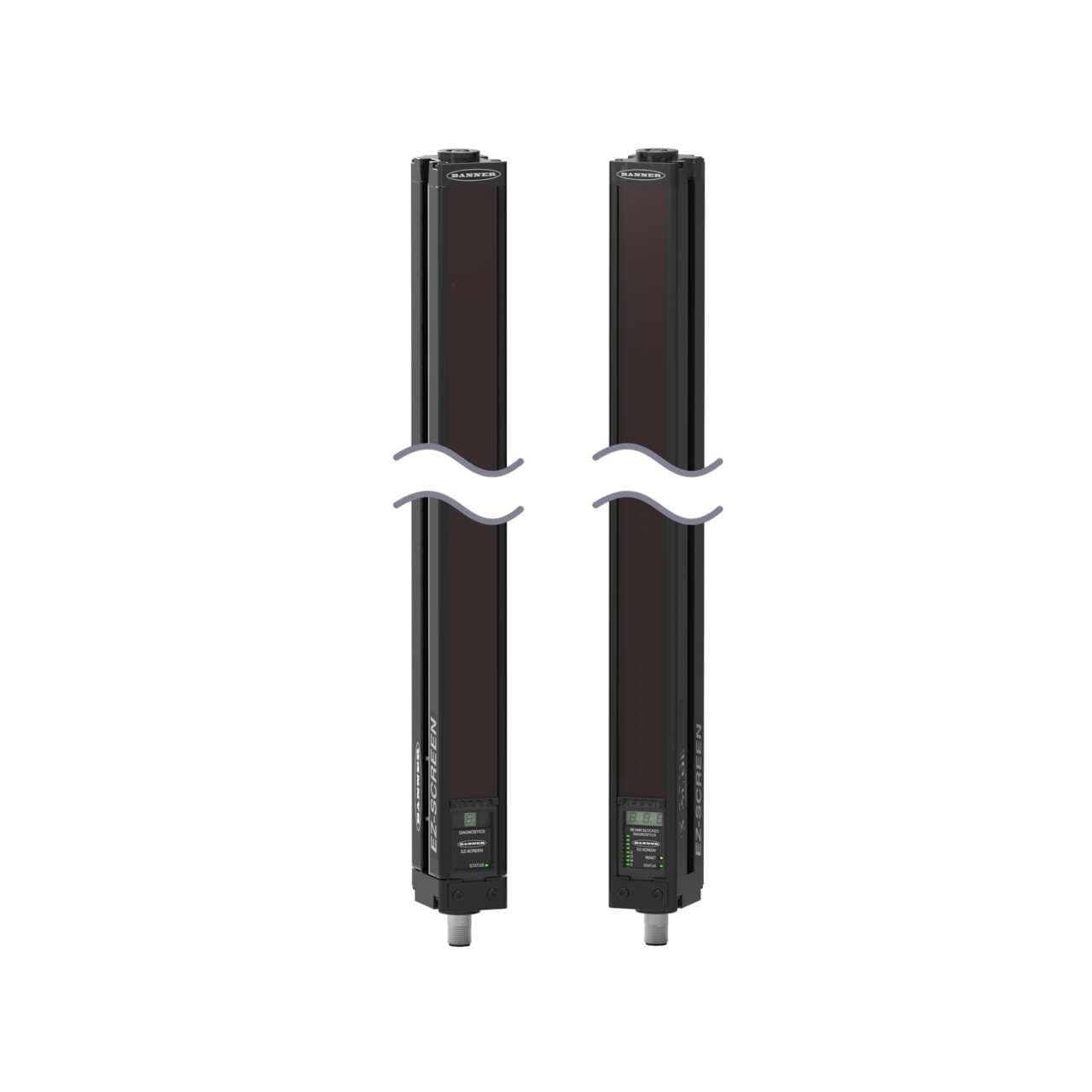

Banner Engineering SLSP30-750Q85 is a safety light curtain from the 14/30 series designed with a test input function. This unit comprises an emitter and receiver pair housed in aluminum with acrylic lenses and die-cast zinc end caps. It is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The device features a protective height of 750mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is designed for durability in various environments. The SLSP30-750Q85 has a net width of 36mm, a height of 821mm, and a depth of 46mm. It offers a 30mm beam spacing/pitch for hand detection, with a sensing distance ranging from 10cm to 18m. The light curtain emits infrared (IR) light with a wavelength of 850 nm and has a resolution of 30mm. It features two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output, one digital input (10Vdc-30Vdc) for EDM input, and one digital input (10Vdc-30Vdc) for RESET input. The response time of the device is 17ms / 0.017 s.
