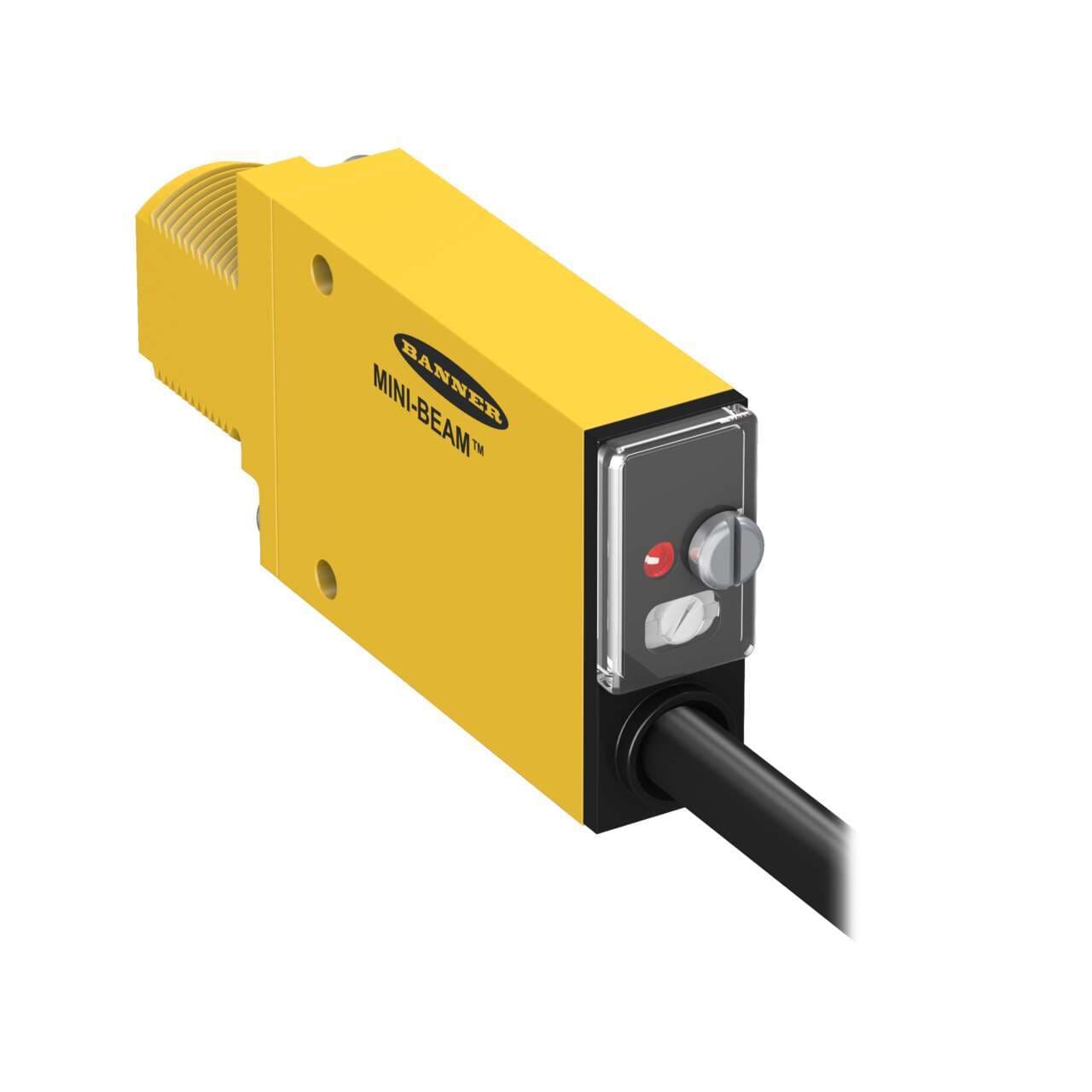

SMU315D W/30 Banner Proximity Sensors
Part#:SMU315D W/30
Alt. Part#:62423
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM UNIVERSAL: Diffuse; Range: 380 mm; Input: 24-240 V ac or dc; Output: SPDT Electromechanical Relay; 9 m (30 ft) Cable
Product Details
- Weight 653.17248 g
- Country Of Origin US
- Sensing Mode (Detailed) Diffuse
- Special Feature: Remote Teach No
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Quick Disconnect Type No QD
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- Cable Length (m) 9
- Max Sensing Distance (mm) 380
- Special Feature: Intrinsically Safe No
- Adjustments Potentiometer
- DeviceNet No
- Power AC/DC Universal
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) N/A
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated No
- Sensing Beam Infrared LED
- Outputs SPDT e/m Relay
- Output response time (ms) 20
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (General) Proximity
- Operation Light/Dark Operate
- Repeatability (µs) N/A
- Barrel Diameter (mm) 18
- IO Link No
- Power Supply/Supply Voltage 24-240 V ac/dc
- Connection Cable
- Indicator LEDs
- Housing Style Rectangular w/M18 Mount
- Max Op. Temp. (°C) 55
- Number of Pins 5
- Feature: Hazardous Area No
- Input/Output E/M Relay
- Special Feature: Water Detection No
- Lens Material Acrylic
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMU315D W/30 on Powermatic Associates is $251.00. Order now.
About the product
Banner Engineering SMU315D W/30 is a photo-electric sensor from the SMU315 universal voltage series, designed with a diffuse mode potentiometer adjustment. This sensor features a thermoplastic housing and is pre-wired with a 30ft / 9m cable terminated with bare end flying leads. It operates on a supply voltage range of 24Vac-240Vac (200Vac / 220Vac nom.) for AC and 24Vdc-240Vdc (48Vdc / 120Vdc / 220Vdc nom.) for DC. The SMU315D W/30 offers an M18 threaded mount for installation and boasts a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13. It has a rectangular shape and includes 1 x digital output (SPDT rly. contact). The sensing distance is 380mm, with an infrared (IR) light color, a response time of 20ms / 0.02 s, and operates in both Light-ON and Dark-ON modes. The wavelength of the IR light is 880 nm.
