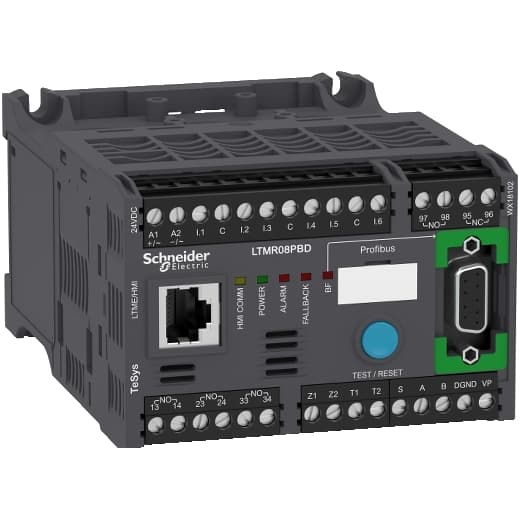

LTMR08PBD Schneider Electric Industrial Automation Components

Product Details

• Product Or Component Type
  Motor controller
• Maximum Operating Rate
  1800 cyc/h
• Product Name
  TeSys T
• Current State 1 Guaranteed
  Logic input < 15 V 2...15 mA 15 ms
• Web Services
  Web server
• Current Consumption
  56...127 mA
• Logic Input Number
  6
• Pollution Degree
  3
• Net Weight
  1.17 lb(US) (0.53 kg)
• Height
  2.40 in (61 mm)
• [Us] Rated Supply Voltage
  24 V DC
• Maximum Output Switching Frequency
  2 Hz
• Device Short Name
  LTMR
• Communication Port Protocol
  Profibus DP
• Device Application
  Equipment monitoring and control
• Overvoltage Category
  III
• Depth
  4.82 in (122.5 mm)
• Measurement Current
  0.4…8 A
• Short-Circuit Withstand
  100 kA EN/IEC 60947-4-1
• Supply Voltage Limits
  20.4…26.24 V DC
Range
TeSys
Input Current
7 mA
Current State 0 Guaranteed
Logic input < 5 V <= 15 mA 5 ms
Connection Pitch
0.20 in (5.08 mm)
Width
3.58 in (91 mm)
Tightening Torque
Control circuit 4.43…5.31 lbf.in (0.5…0.6 N.m) flat 0.12 in (3 mm)
Compatibility Code
LTMR
Load Current
5 A 250 V AC logic output 5 A 30 V DC logic output
Associated Fuse Rating
4 A gG output 0.5 A gG control circuit
Contacts Type And Composition
1 NO + 1 NC fault signal 3 NO
Bus Type
Profibus DP polarised 2-wire RS485 1...125 9.6 kbit/s...12 Mbit/s, SUB-D 9 2 shielded twisted pairs, type A Profibus DP polarised 2-wire RS485 1...125 9.6 kbit/s...12 Mbit/s, terminal block 2 shielded twisted pairs, type A
Permissible Power
480 VA AC-15), Ie = 2 A, 500000 cycles output) 30 W DC-13), Ie = 1.25 A, 500000 cycles output)
[Uimp] Rated Impulse Withstand Voltage
6 kV current or voltage measurement circuit EN/IEC 60947-4-1 0.8 kV communication circuit EN/IEC 60947-4-1 0.8 kV supply, inputs and outputs EN/IEC 60947-4-1
Connections - Terminals
Control circuit connector 1 0.00…0.00 in² (0.25…2.5 mm²) AWG 24...AWG 14)flexible with cable end Control circuit connector 1 0.00…0.00 in² (0.2…2.5 mm²) AWG 24...AWG 14)flexible without cable end Control circuit connector 1 0.00…0.00 in² (0.25…2
[Ui] Rated Insulation Voltage
690 V EN/IEC 60947-1 690 V CSA C22.2 No 14 690 V UL 508
Electromagnetic Compatibility
Electrostatic discharge, 3 8 kV air, 6 kV contact)EN/IEC 61000-4-2) Radiated RF fields, 3 10 V/m)EN/IEC 61000-4-3) Fast transients immunity test, level 3 2 kV)EN/IEC 61000-4-4) Fast transients immunity test, level 4 4 kV)EN/IEC 61000-4-4)
Metering Type
Earth-fault current Average current Iavg Imbalance current Phase current I1, I2, I3 RMS Temperature
Network And Machine Diagnosis Type
Motor control command recording Running hours counter/operating time Trip history information Fault recording Starting current and time Phase fault and earth fault trip counters Remaining operating time before overload trippi
Measurement Accuracy
5...15 % earth fault current internal measurement 1 % voltage 100...830 V) 3 % power factor 5 % earth fault current external measurement +/- 30 min/year internal clock 0,02 Temperature 1 % current 5 % active and reactive
Protection Type
Thermal protection Load fluctuation Power factor variation Phase failure Overload Reverse polarity protection Overload (long time) Earth-leakage protection Locked rotor Thermal overload protection Phase un
