RI-12I14E-4B500-H1181 Turck Industrial Automation Components
Part#:RI-12I14E-4B500-H1181
Manufacturer:Turck
Category:Industrial Automation Components
Product Lifecycle:Discontinued
Product description
RI-12I14E-4B500-H1181 Turck - RI-12I14E-4B500-H1181 Incremental Encoder, Industrial Line
Product Details

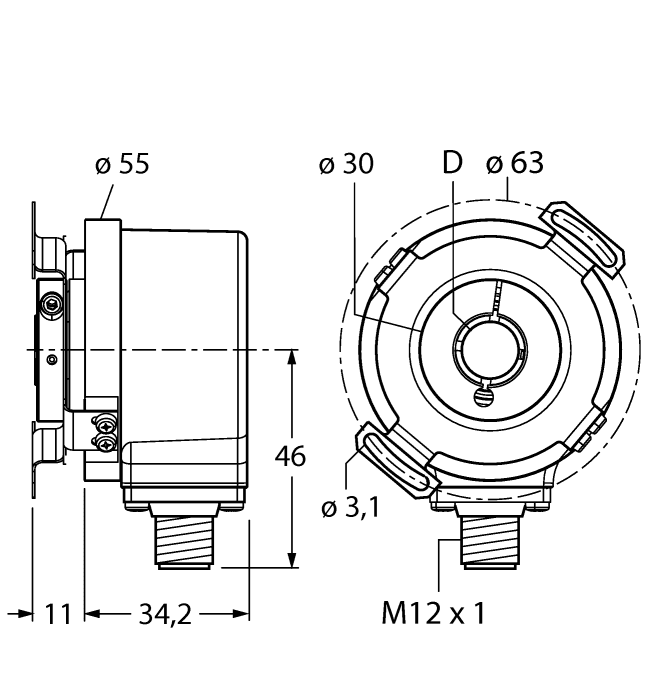

- Flange diameter Ø 63 mm
- Output function RS422/TTL, with inverted signals
- Shaft Type Hollow shaft
- Housing material Die-cast zinc
- Output type Incremental
- Protection class IP67
- Operating voltage 5…30 VDC
- Shaft diameter D [mm] 14 mm
- Electrical connection Connector, M12 × 1
- Encoder line Industrial-Line
- Protection class shaft IP65
- Technology Optical
- Resolution, incremental 500 ppr
- Flange type Flange with stator coupling
- Ambient temperature -40…+85 °C
- Ambient Temperature -40 degrees celsius, 85 degrees celsius
- Operating Voltage 30 volts
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product
Incremental Encoder, Industrial Line, Resolution, incremental 500 ppr, Flange with slotted flex mount, Ø 63 mm, Hollow shaft, Ø 14 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP65 on shaft side, -40…+85 °C, Max. 12000 rpm (continuous operation 6000), 5…30 VDC, Male connector, M12 x 1, 8-pole, RS422 with inverted signals, Pulse frequency max. 300 kHz, 500 pulses per revolution
