739-107 WAGO Terminal Blocks

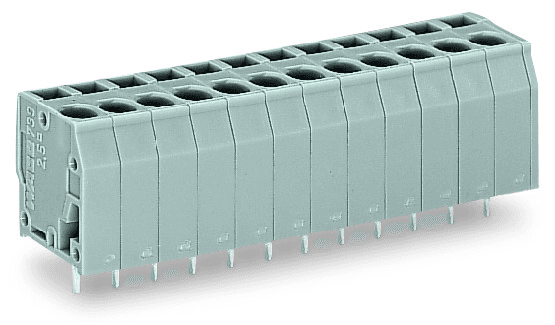

WAGO 739-107 is an automation part with a short circuit breaking rating and electrical data ratings per IEC/EN 60664-1, including a nominal voltage (III/3) of 320V, rated impulse voltage (III/3) of 4kV, rated voltage (III/2) of 320V, rated impulse voltage (III/2) of 4kV, nominal voltage (II/2) of 630V, rated surge voltage (II/2) of 4kV, and a rated current of 24A. It has UL 1059 approval with rated voltages of 300V and rated currents of 20A for Use Group B and 10A for Use Group D. CSA approvals include rated voltages of 300V and rated currents of 12A for Use Group B and 10A for Use Group D. The part features 7 connection points, a total number of 7 potentials, 1 connection type, and 1 level. The connection technology is CAGE CLAMP with an operating tool actuation type. It accommodates solid conductors from 0.08 to 2.5mm2 / 28 to 14 AWG, fine-stranded conductors from 0.08 to 2.5mm2 / 28 to 12 AWG, fine-stranded conductors with insulated ferrule from 0.25 to 1.5mm2, and fine-stranded conductors with uninsulated ferrule from 0.25 to 2.5mm2. The strip length is 8 to 9mm / 0.31 to 0.35", and the conductor connection direction to PCB is 90°. Physical specifications include a pin spacing of 5mm / 0.197", width of 36.5mm / 1.437", height of 19mm / 0.748", height from the surface of 15.8mm / 0.622", depth of 14.3mm / 0.563", solder pin length of 3.2mm, solder pin dimensions of 0.8 x 1.2mm, and a drilled hole diameter with tolerance of 1.6 (+0.1)mm. The PCB contact is THT with solder pin arrangement over the entire terminal strip (in-line) and one solder pin per potential. The part is gray, made from Polyamide (PA66) with a flammability class per UL94 of V0, chrome-nickel spring steel (CrNi) clamping spring material, electrolytic copper (ECu) contact material, tin contact plating, and has a fire load of 0.146MJ. It weighs 8.1g and operates within a temperature range of -60 to +105°C. It is RoHS compliant with no exemption, packaged in boxes with a PU (SPU) of 120 (30) pcs, and has a GTIN of 4044918859653. The country of origin is CH with a customs tariff number of 85369010000.
